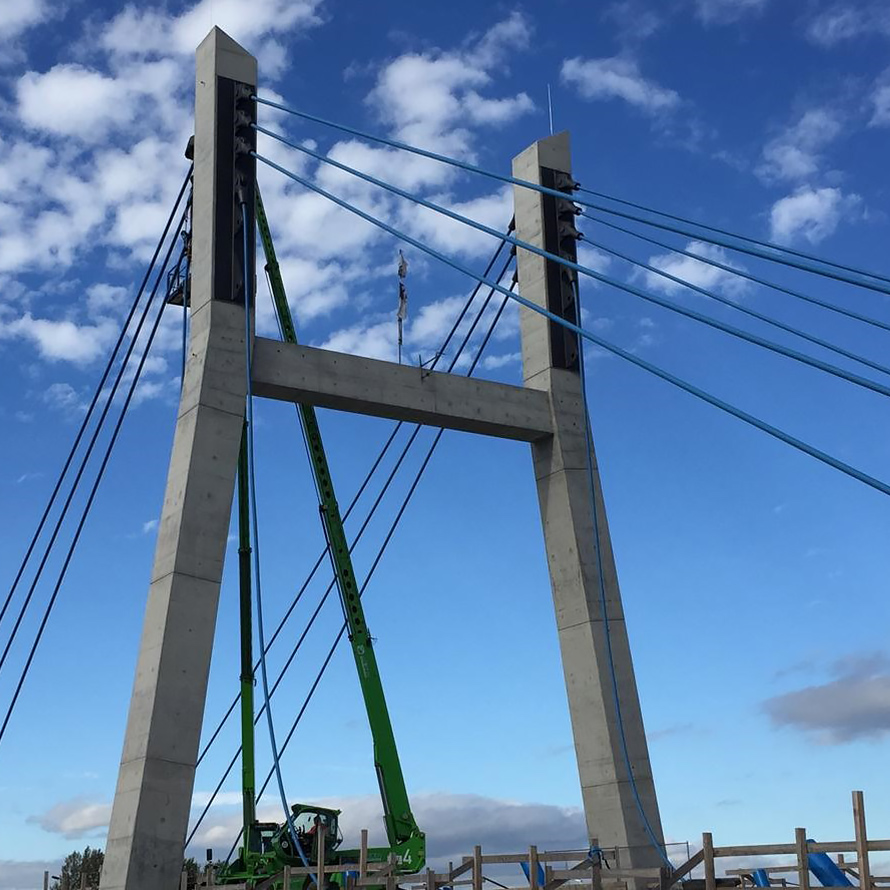

Our highly uv-resistant NOFX HDPE Compound has been used for the factory extruded external PWS Cable layer (Parallel Wire System). RAL 5015 blue was chosen for this project. (Picture Bridon-Bekaert)
Our highly uv-resistant NOFX HDPE Compound has been used for the factory extruded external PWS Cable layer (Parallel Wire System). RAL 5015 blue was chosen for this project. (Picture Bridon-Bekaert)

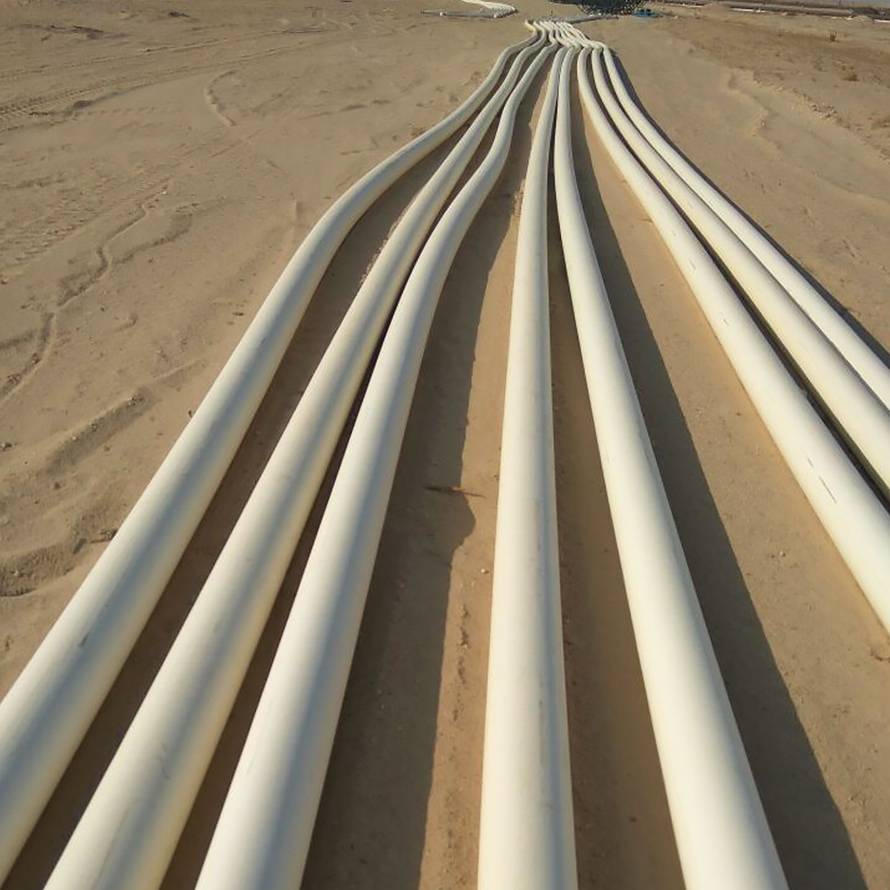

70.000 m of RTP MF HDPE pipes have been installed above ground oil transport in Kuwait. The pipeline is operated with medium temperatures of up to 65°C and pressure up to 90 bars. The RTP pipes are equipped using our system with highly uv-resistant NOFX HDPE Compound in white color to keep lowest possible pipe temperature in this high ambient temperature destination. Minimum service life of 25 years at lowest maintenance costs.

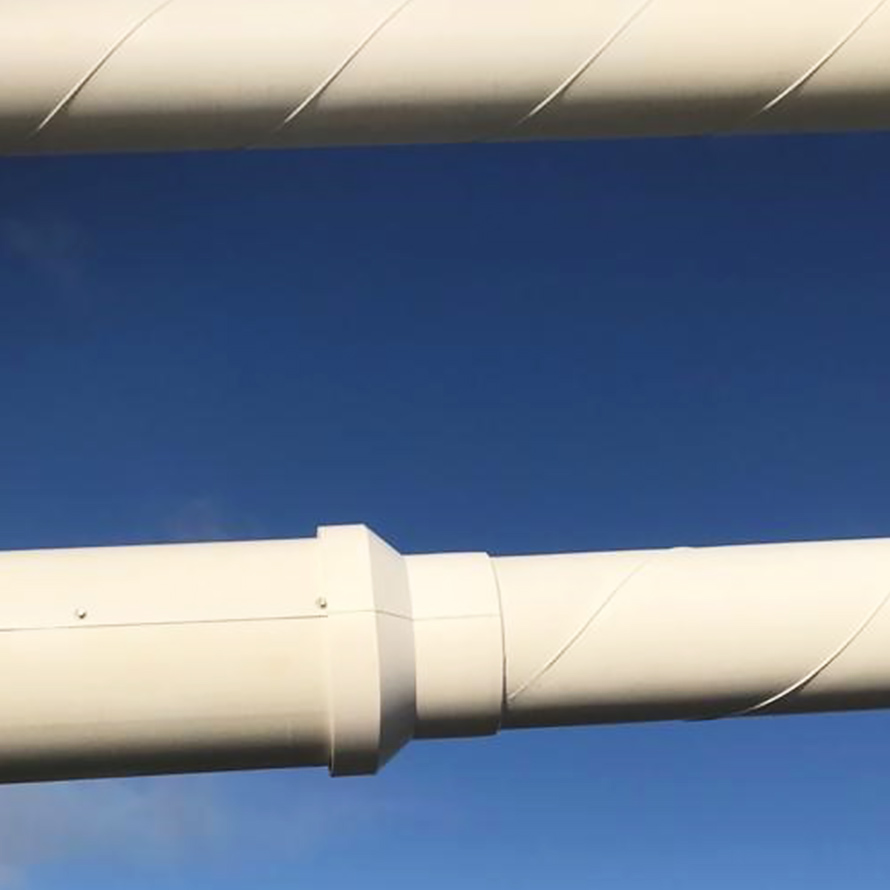

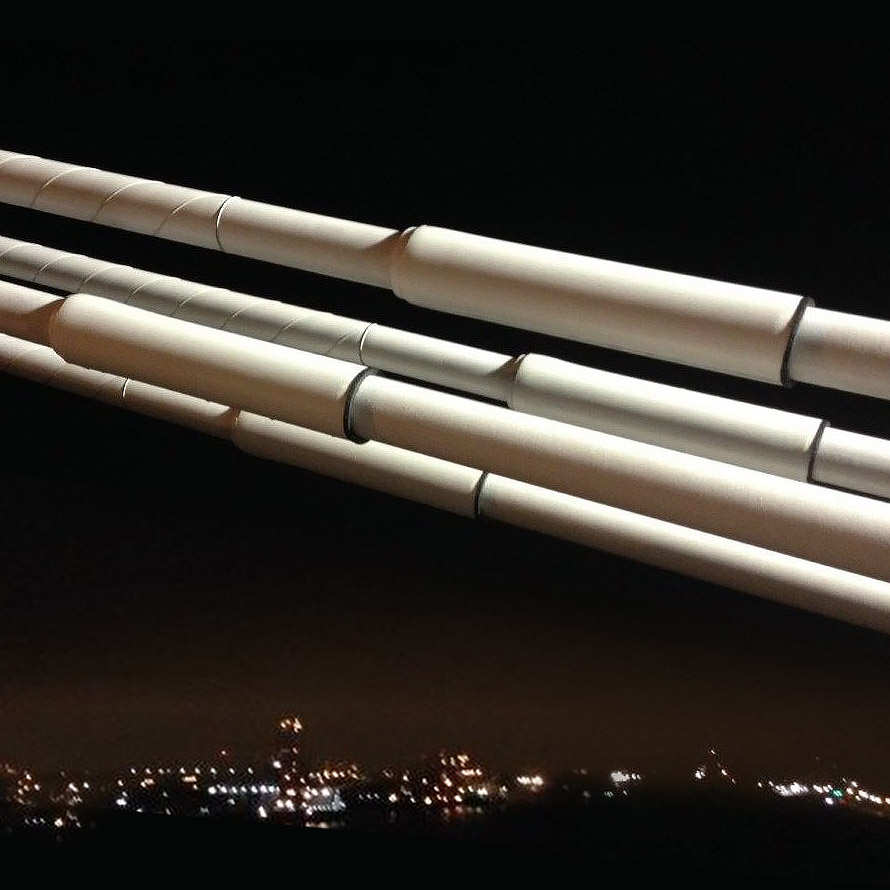

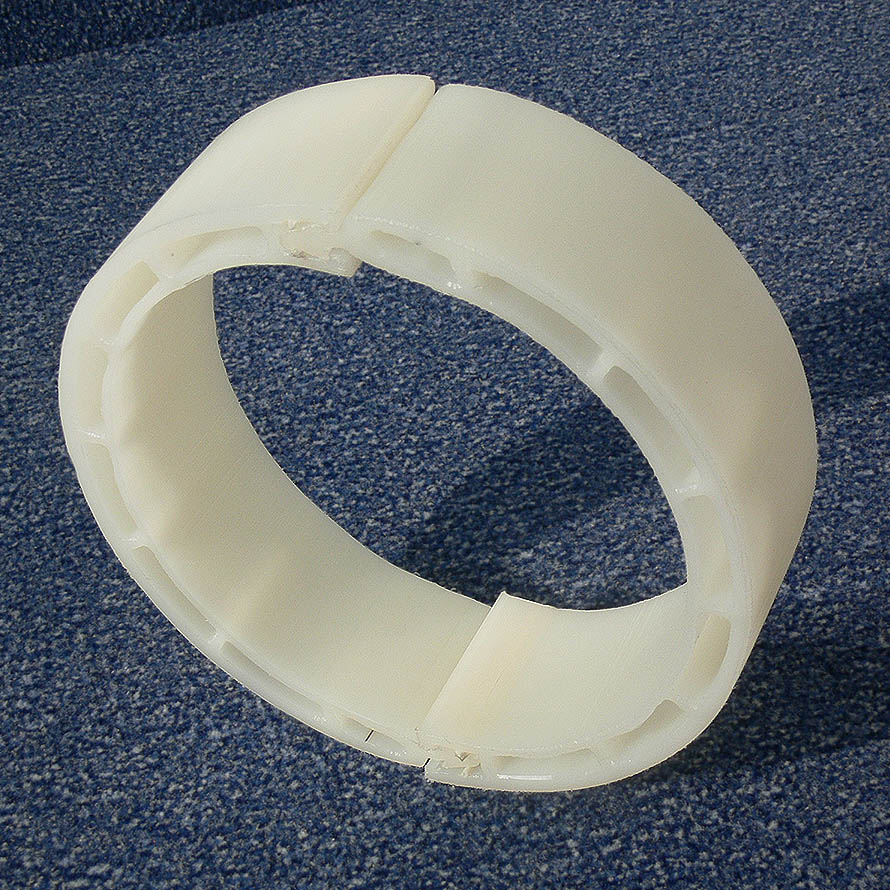

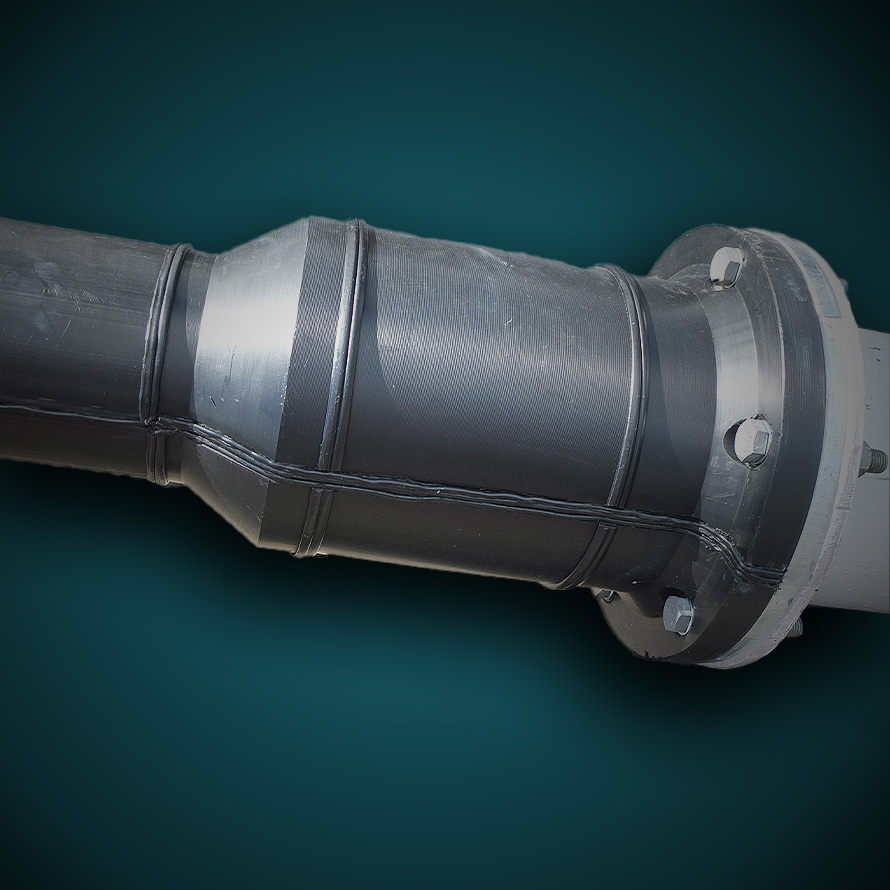

As a watertight transition between the existing stay cable pipe and the steel antivandalism pipes our split NOFX HDPE Electrofusion Deck connectors in white color were successfully installed. The installation of the with electro fusion welding bands equipped split couplers is done in multiple steps. Surface preparation, split couplers tightly clamping using a steel clamp, electrofusion welding by welding processor, cooling, radial top groove closing by hat gas welding rod and longitudinal welding or the split grooves compete the installation. The final appearance looks professional and as an integrated design solution. The durability and uv-resistance is the same as our NOCX HDPE Stay Pipes.
size 315 to 450 mm have been supplied. This new innovation will avoid big ice accumulations which may lead to dangerous ice sheet dropping on the bridge roads or cars.

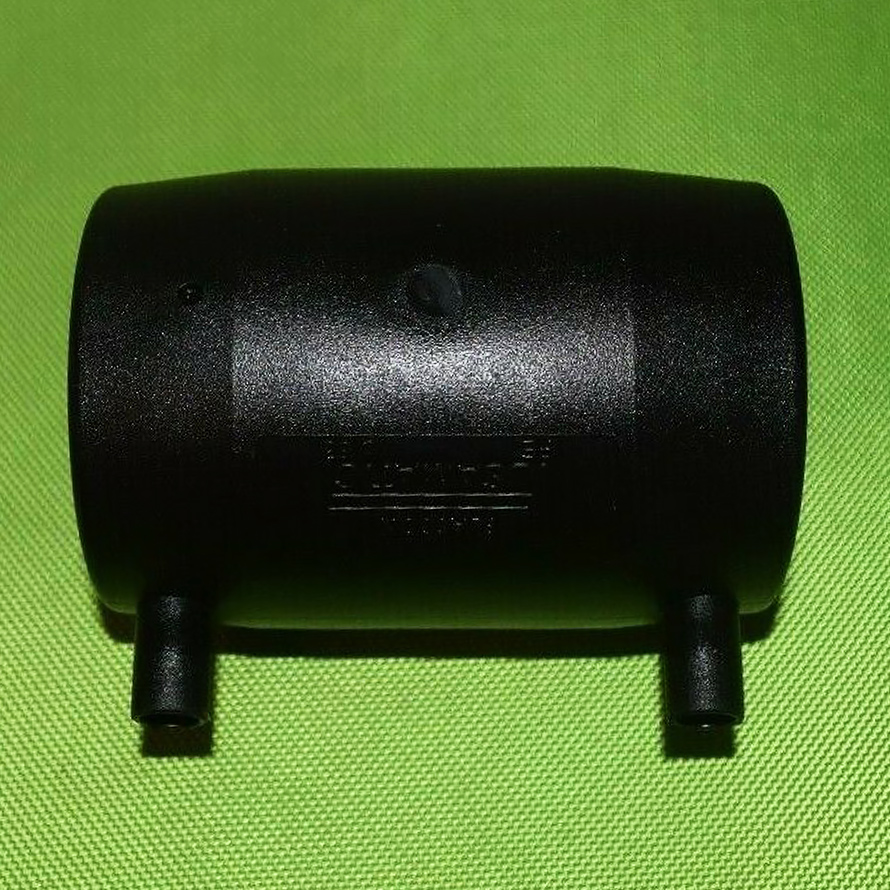

PESTEC also offers IPS inch sized electrofusion couplers and fittings in sizes 2-6’’ inch SDR 17 and SDR 11 in accordance with ASTM F 1055 made of PE3408

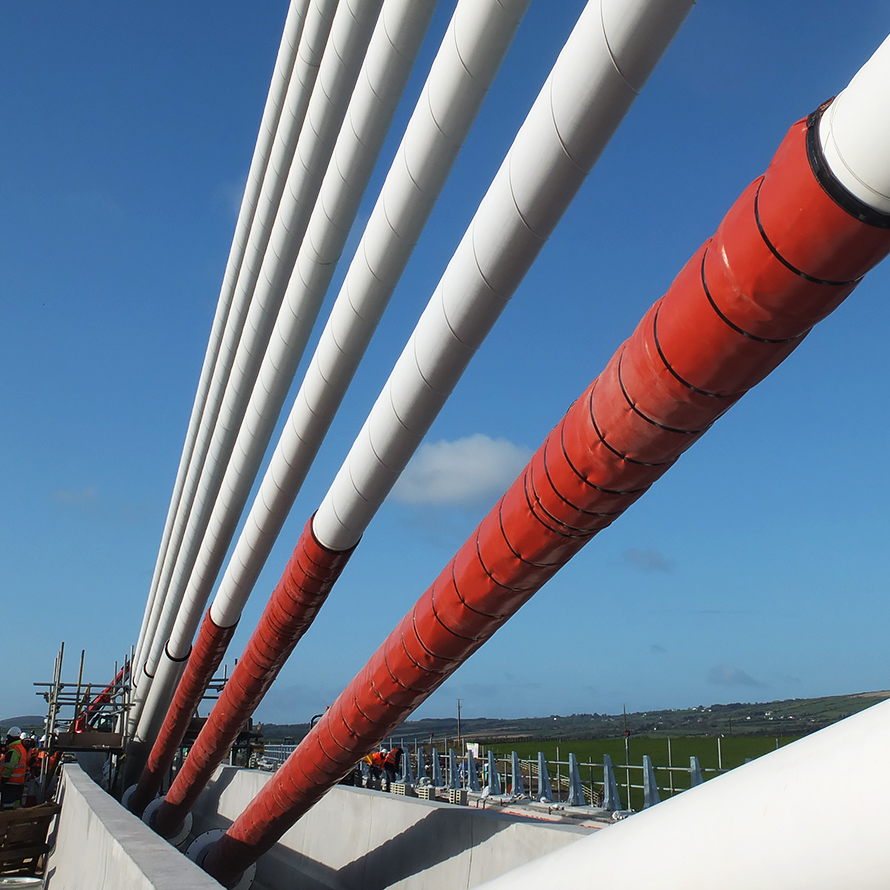

Again, our Fire Protection Blankets have been chosen to comply with the latest stay cable specification requirements related fire protection of the stay cable deck section. 68 cables of size 315 mm have been protected in first 12 m from the bridge deck. Also our NOCX HDPE Stay Cable Pipes were used on this landmark bridge connecting now the highway in South Irland near New Ross,Wexford.

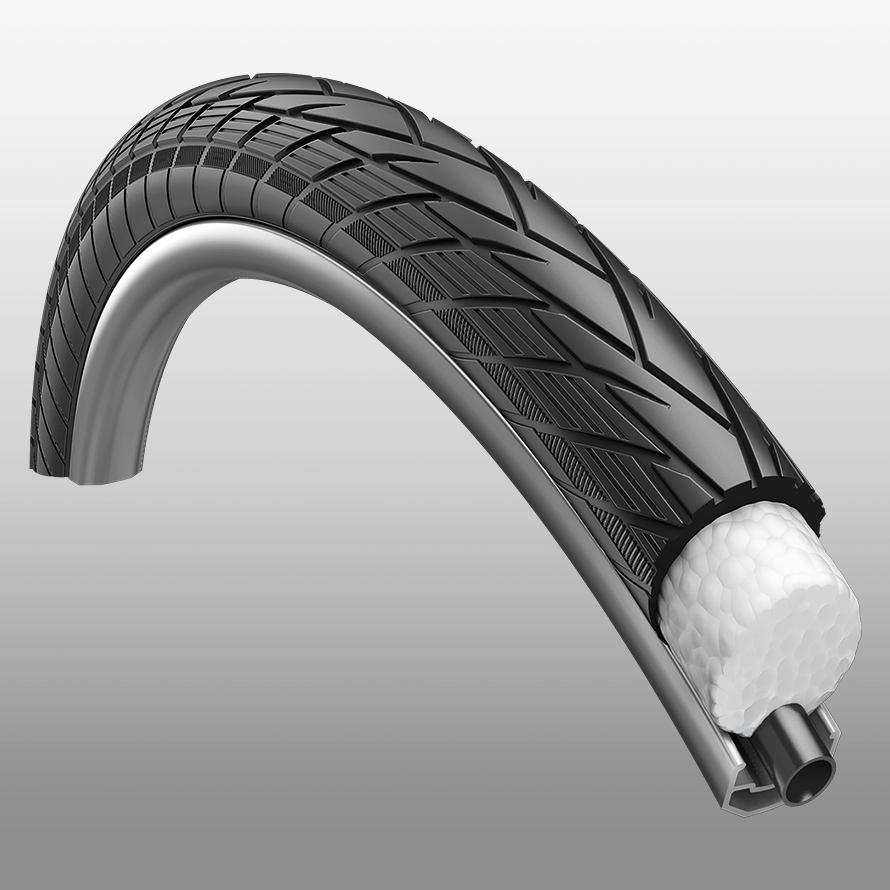

Our small sizes 8-14 mm HDPE pipes are continuously used for a patented airless bicycle tire system of different tire sizes. We supply these pipe in final length with smallest length tolerances to be connected by butt fusion to full rings.

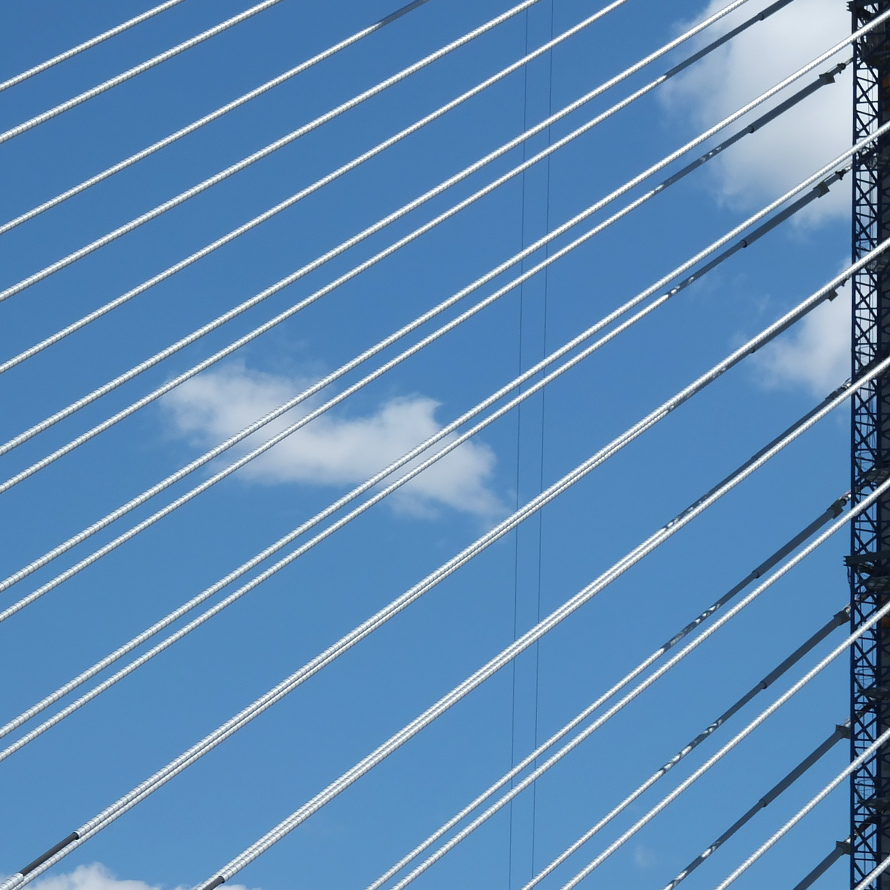

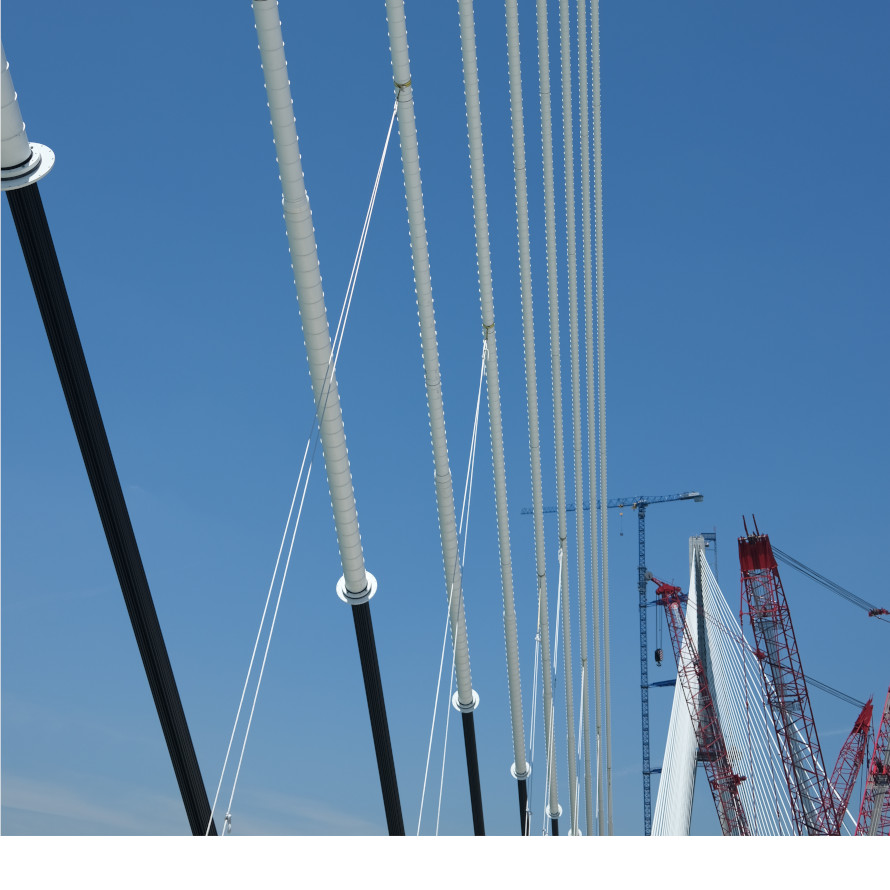

The new patented de-icing pipe surface system has been factory produced with our NOCX HDPE pipes and installed on the new landmark bridge in Montreal, Canada. More than 7000 m in pipe size 315 to 450 mm have been supplied. This new innovation will avoid big ice accumulations which may lead to dangerous ice sheet dropping on the bridge roads or cars.

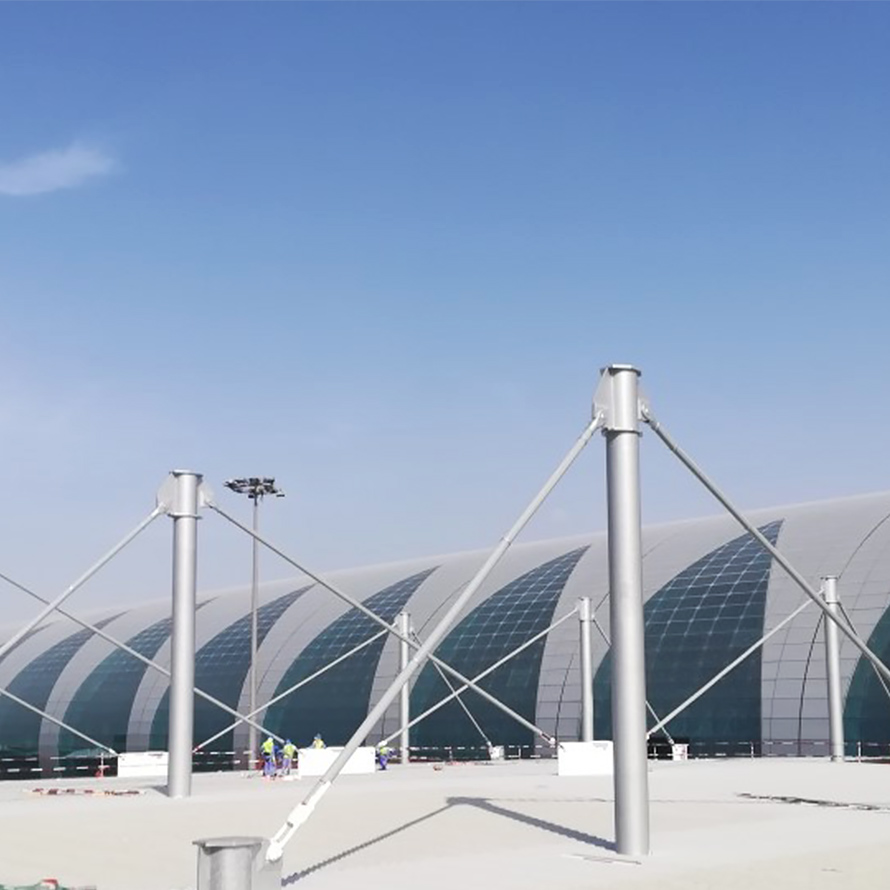

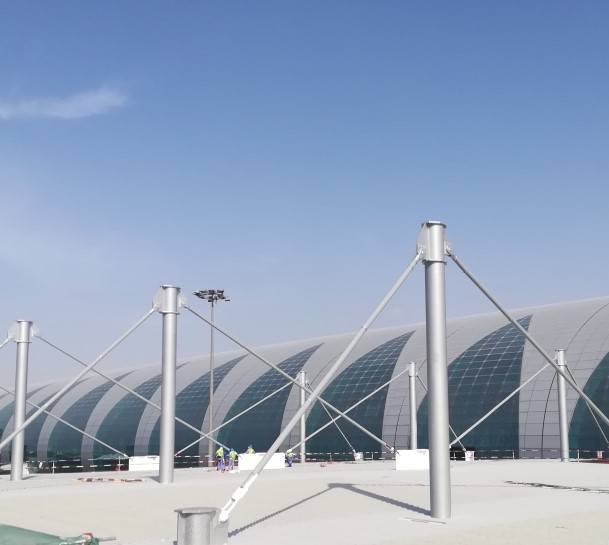

For the extension of DXB Airport in Dubai, our FPB 1100/60/300 Fire Protection Blankets including external DHP HDPE Half pipe cover have been used. The blankets resist a 1100°C fire for 1 hour by limiting the internal temperature below 300°C, so the inner robes are protected against damages and failures.

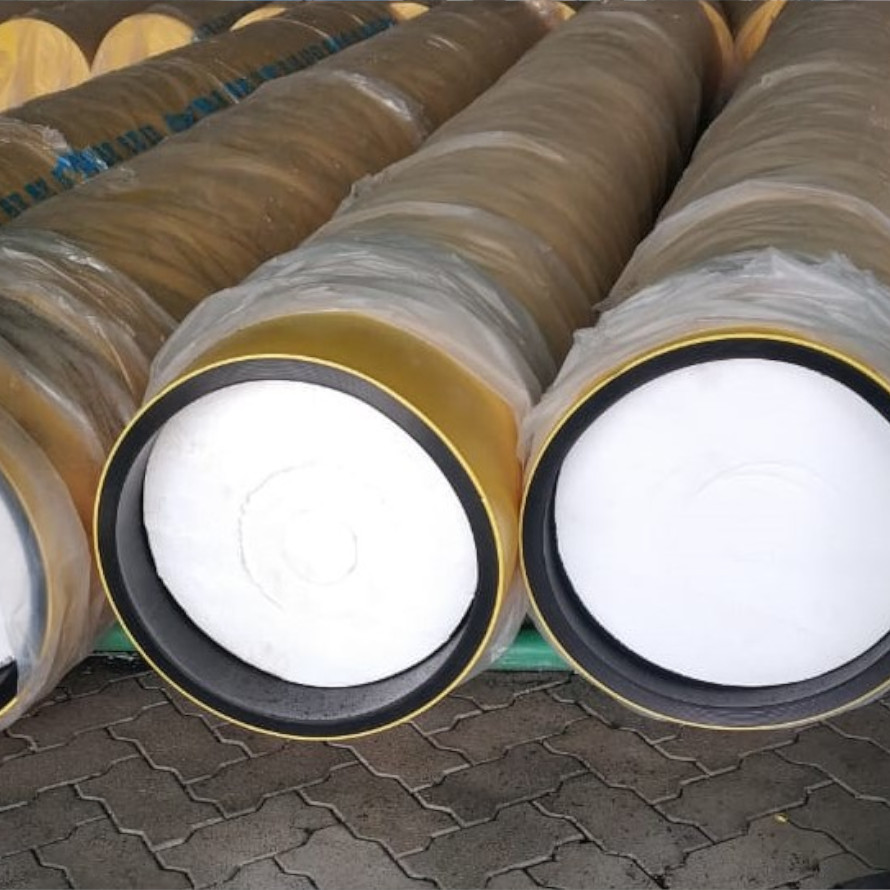

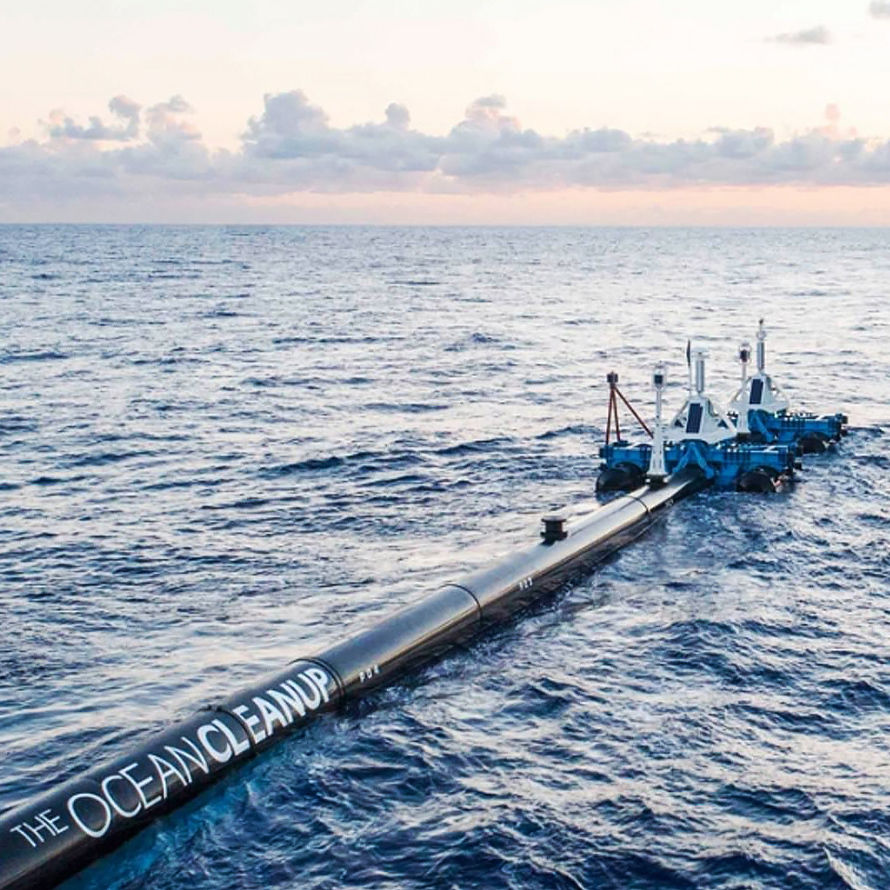

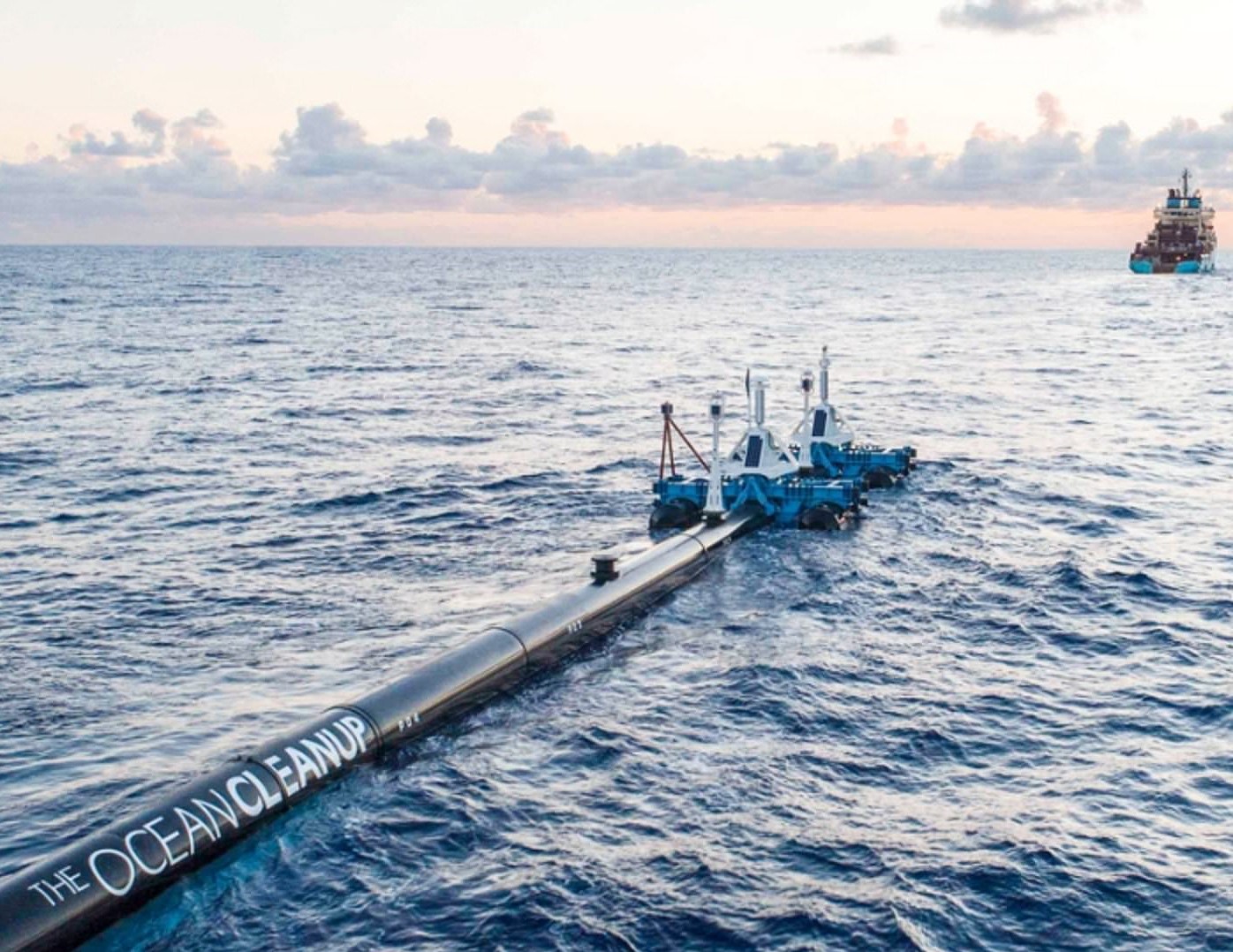

AFS spray coating has been used for marking HDPE pipes used for the worldwide recognized technology to collect plastic garbage from the ocean. This set-up will be used to clean up the Great Pacific Garbage Patch, located between Hawaii and California.

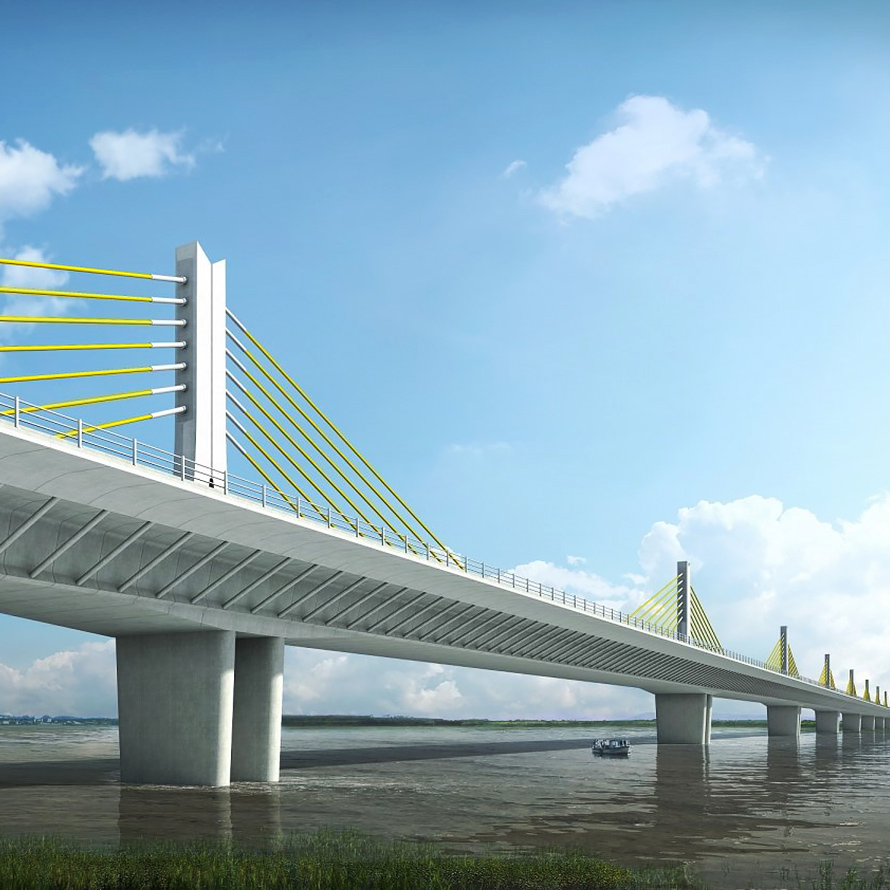

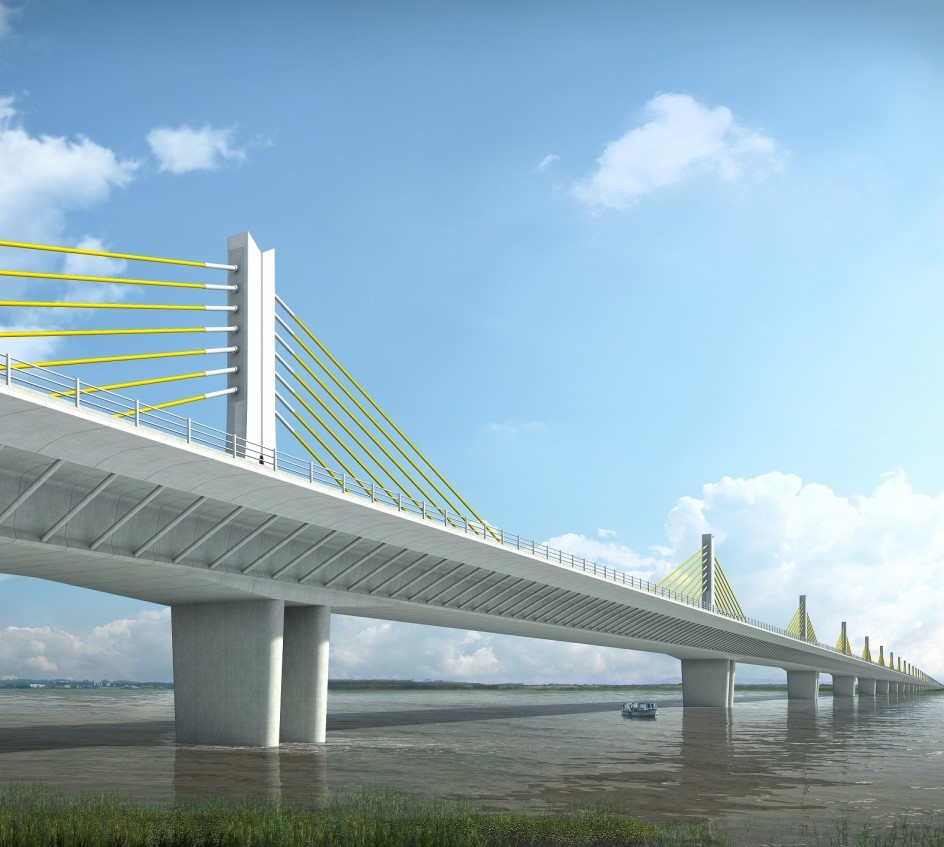

NOCX HDPE pipes with helix in yellow colour will be used on worldwide longest extradosed stay cable bridge with 65 pylons over 9,7 km named Kacchi Dargah over the River Ganges, expected to get completed in the year 2021.

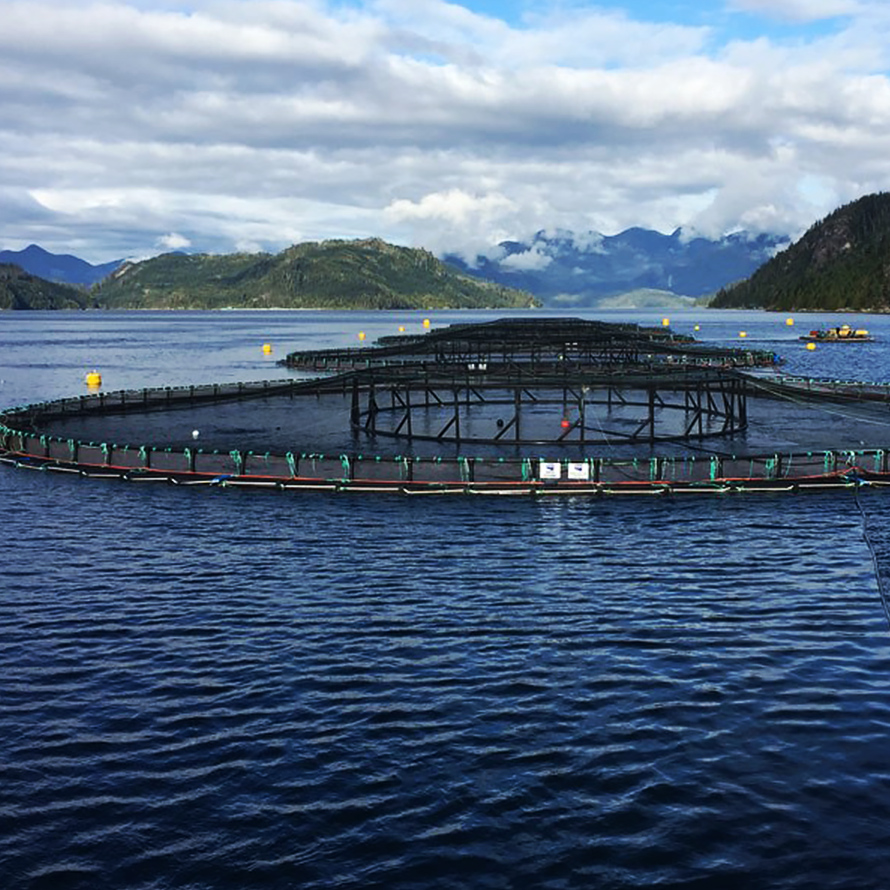

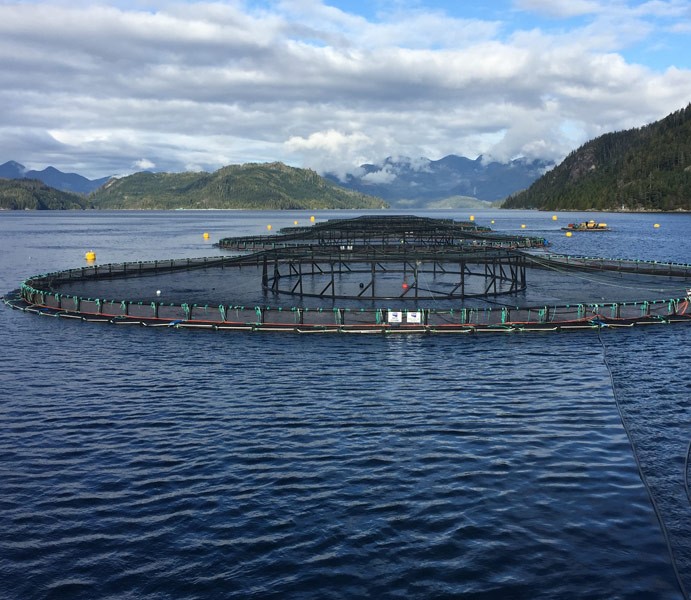

Our uv-stabilized black HDPE pipes have been used for new fish cages in Canada.

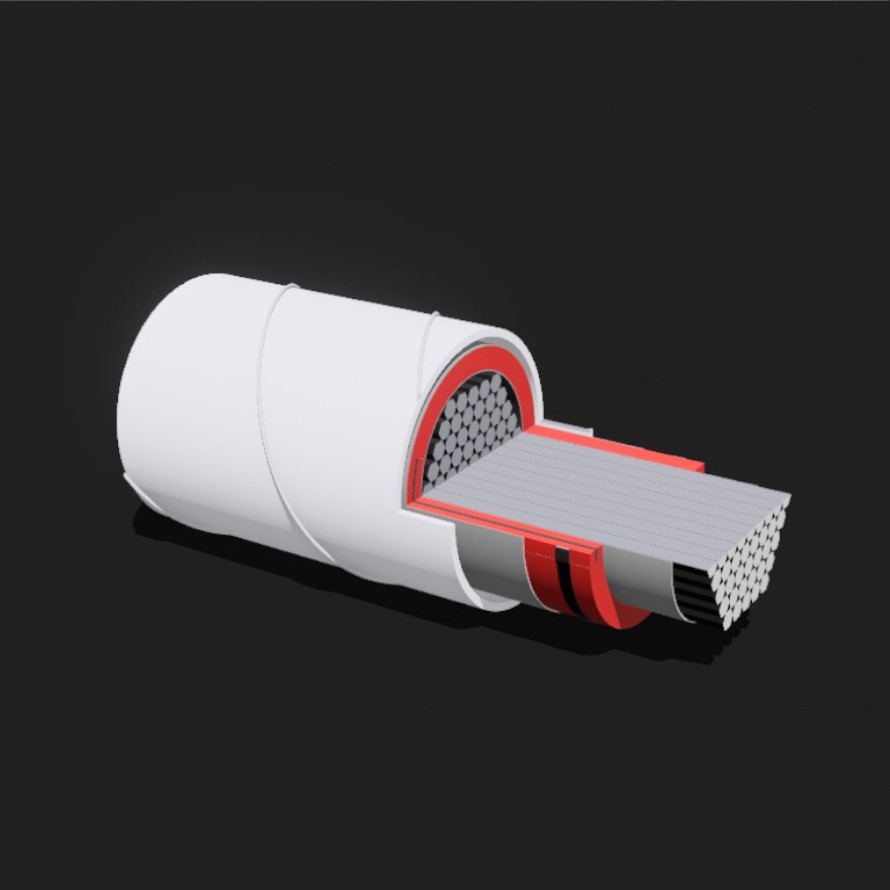

Our just 15 mm thickness FPB Blanket 1100-60-300 has successfully passed third party laboratory test in Germany. PT steel bundle temperature kept to 300°C after 60 minutes under 1100°C hydrocarbon fire so did not influence the minimum steel strength requirements in case of structure fire and also exceed the minimum requirements of latest FIB and PTI draft recommendations.

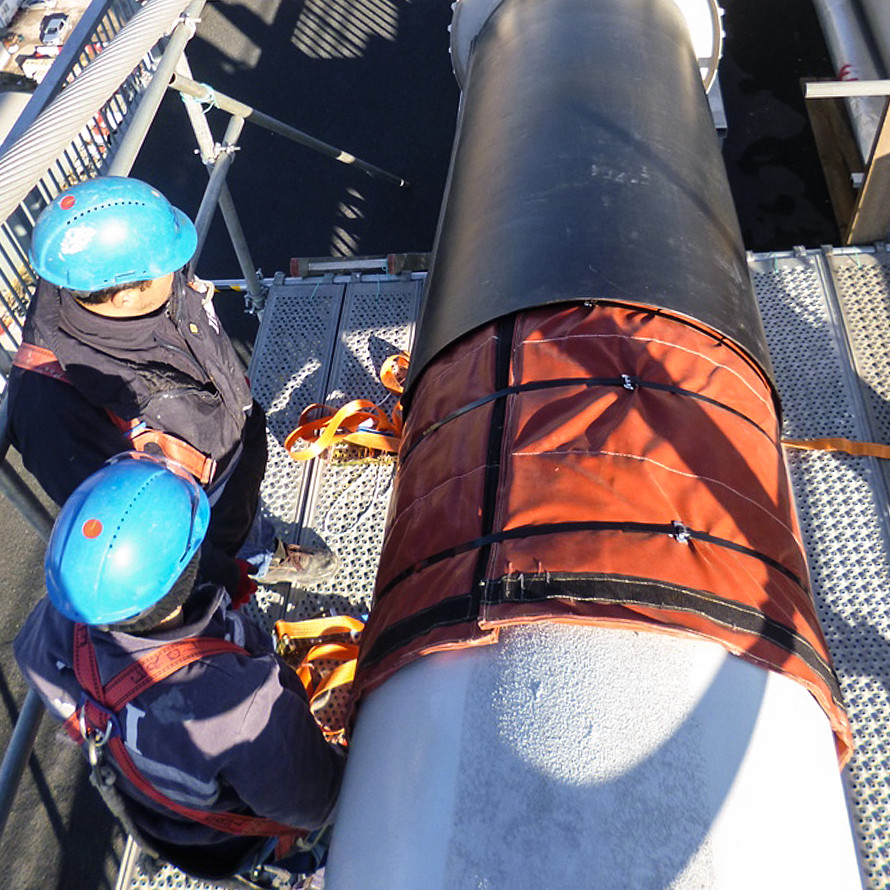

Our FPB blankets come in standard length of 1000 mm at all individual radial sizes and can be used for all kind of structures to be protected including stay cable bridge cables and suspension bridge cables. Installation is simple and fast by wrapping around the structures, closed by integrated Velcro fasteners and fixed by stainless tell fixing bands.
All FPB material layers are hydrophobic so reach extraordinary durability and minimum service life performance of 30+ years, at least when additionally externally covered by using our DHPS or SPHP Half pipes.
Size 788 mm FPB 1100-60-300 blankets including SHPS cover half pipes are qualified for use of 820 m suspension cable protection on Izmit Bay bridge in Turkey. Our just 15 mm thickness FPB Blanket 1100-60-300 keeps the inner steel bundle temperature below 300°C within 60 minutes under 1100°C hydrocarbon fire so comply with the requirements. In addition our water tight SHPS cover pipe system ensures long term service life performance of 30+ years and also complies with aesthetical requirements.

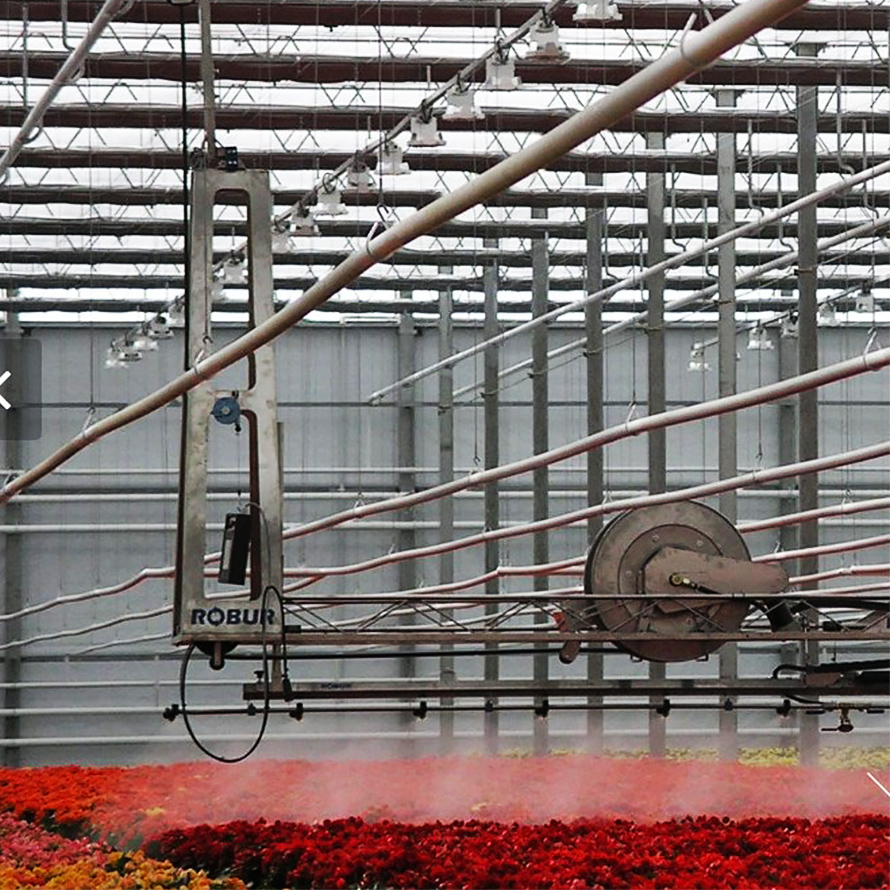

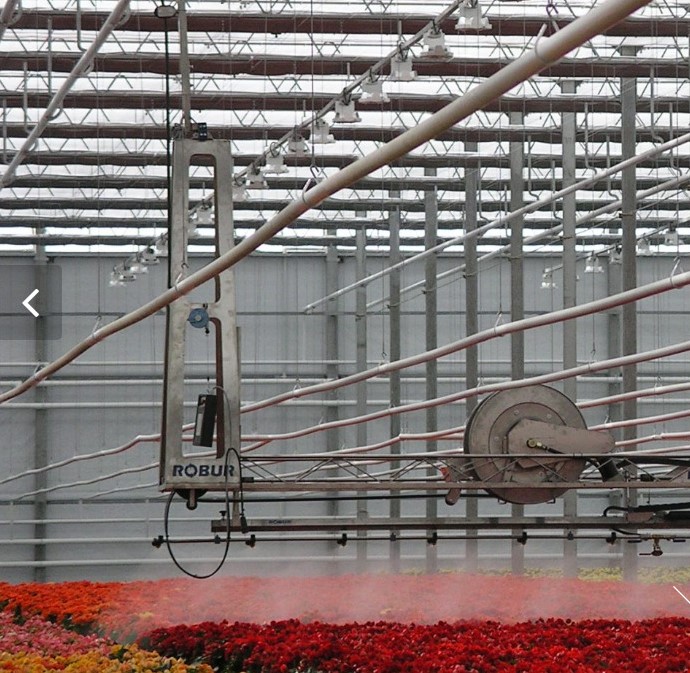

White NOCX high pressure pipes are used for Greenhouse irrigation with excellent uv resistance.
Our IP 4 M PE duct passed ETAG electrical isolation test performed from a client, so did verify for our IP 4 duct system use for all kind of applications like railway bridges etc.

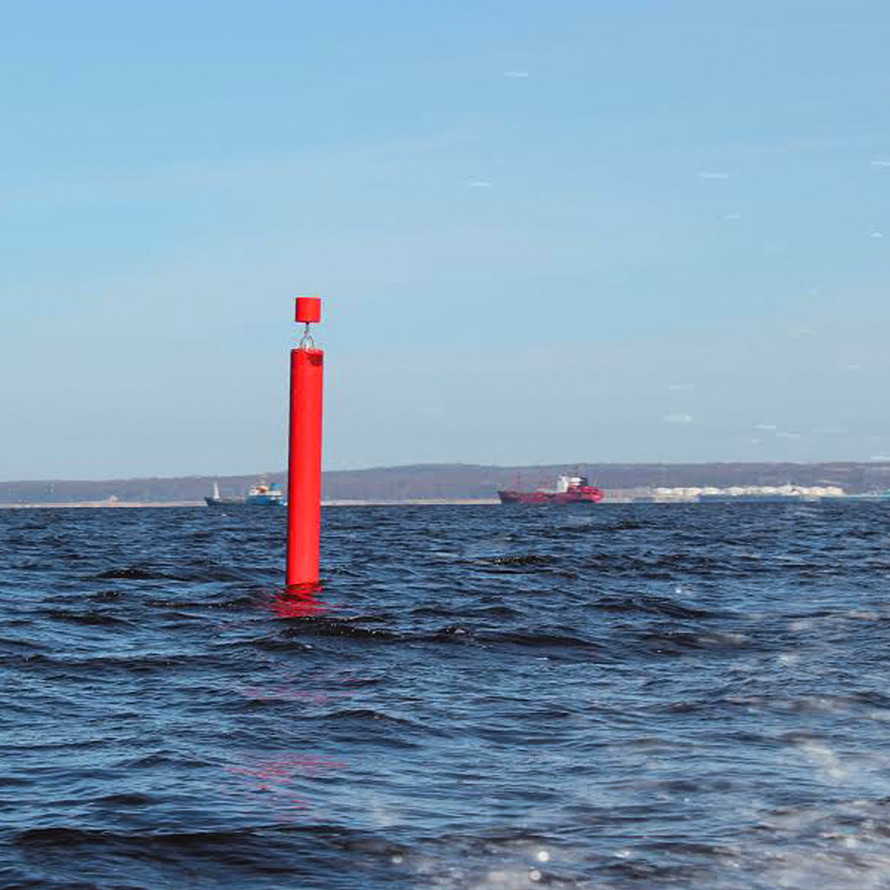

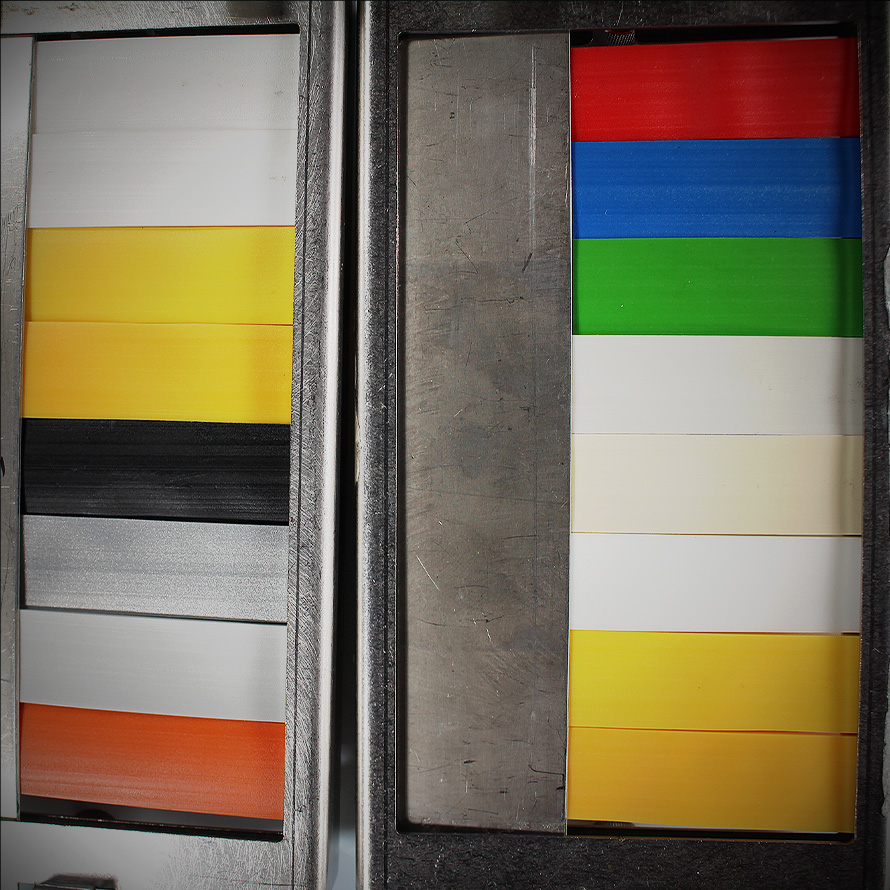

Our NOCX pipes in different special RAL colours of yellow, green, red and white are used for buoyes for long term shiny appearance and best uv resistance.

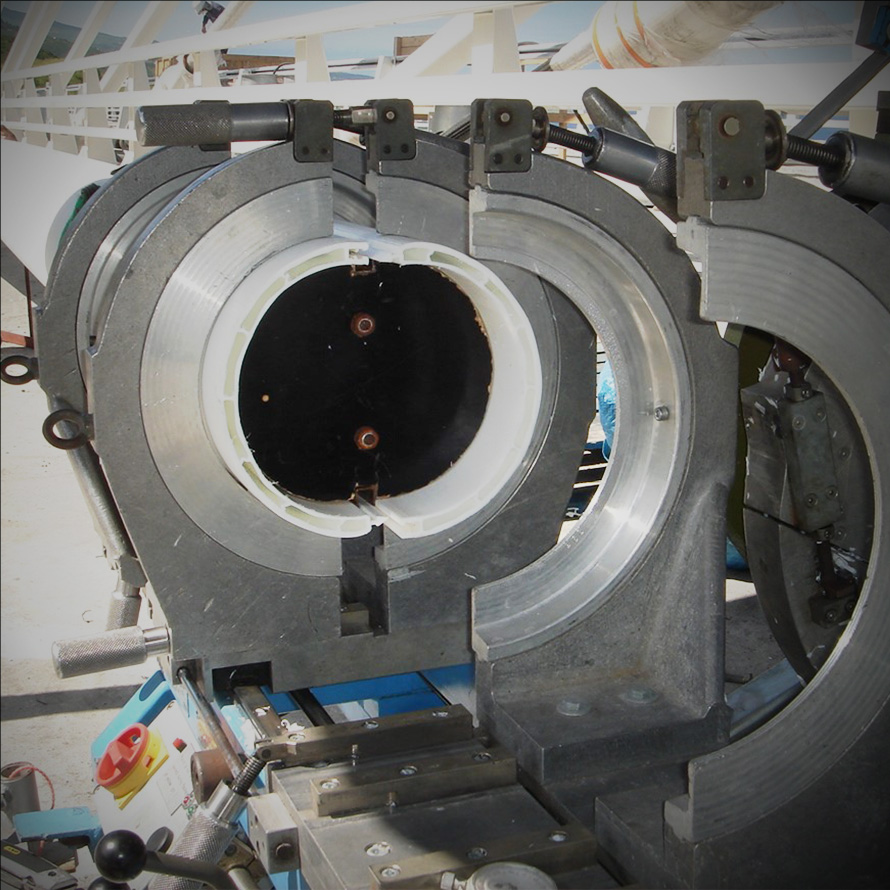

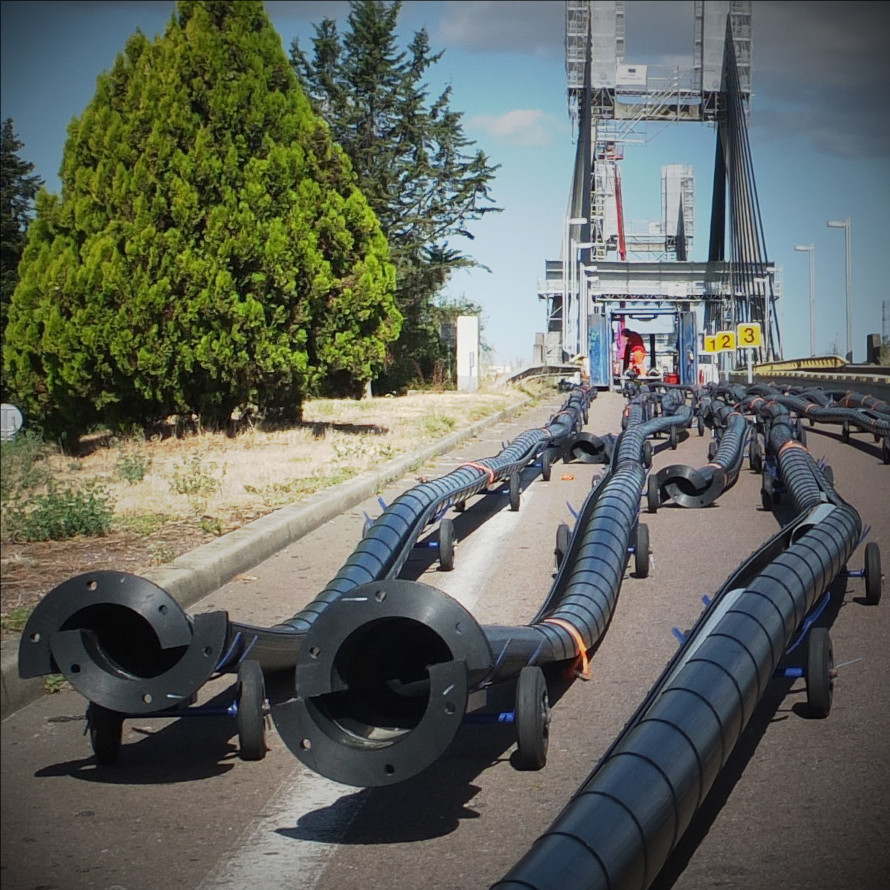

DHPS half pipes with external helical ribs have been used for retrofit of a stay cable bridge in France. Pressure tightness was requested due to re-injection of the cables. Radial connection was executed by butt fusion.

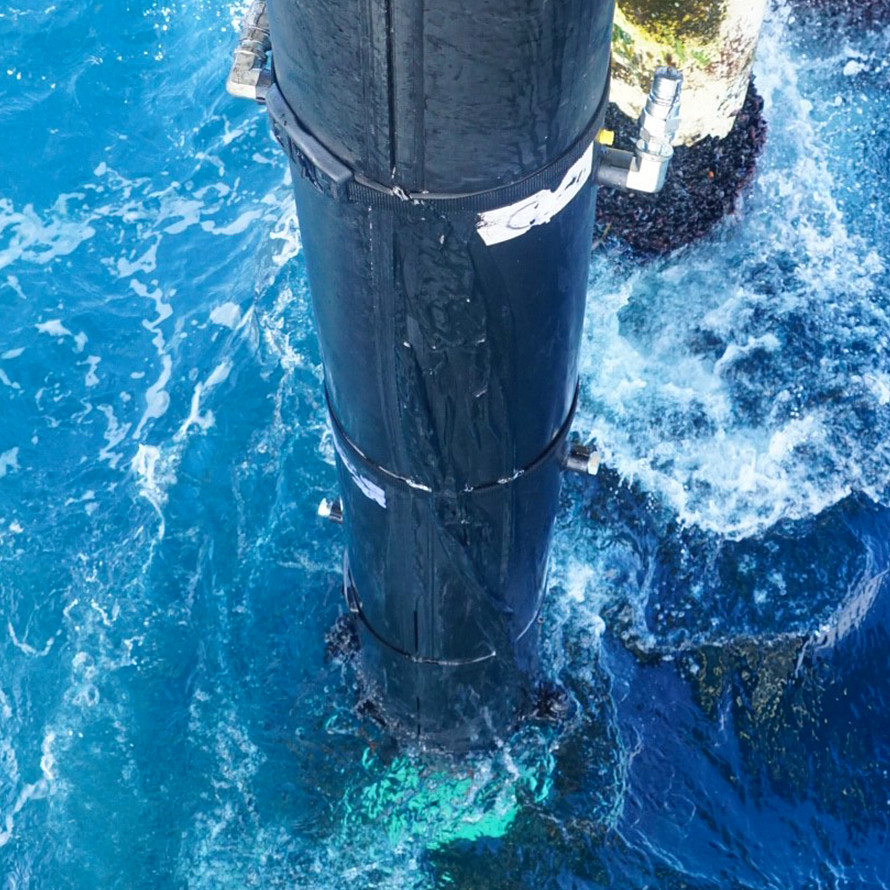

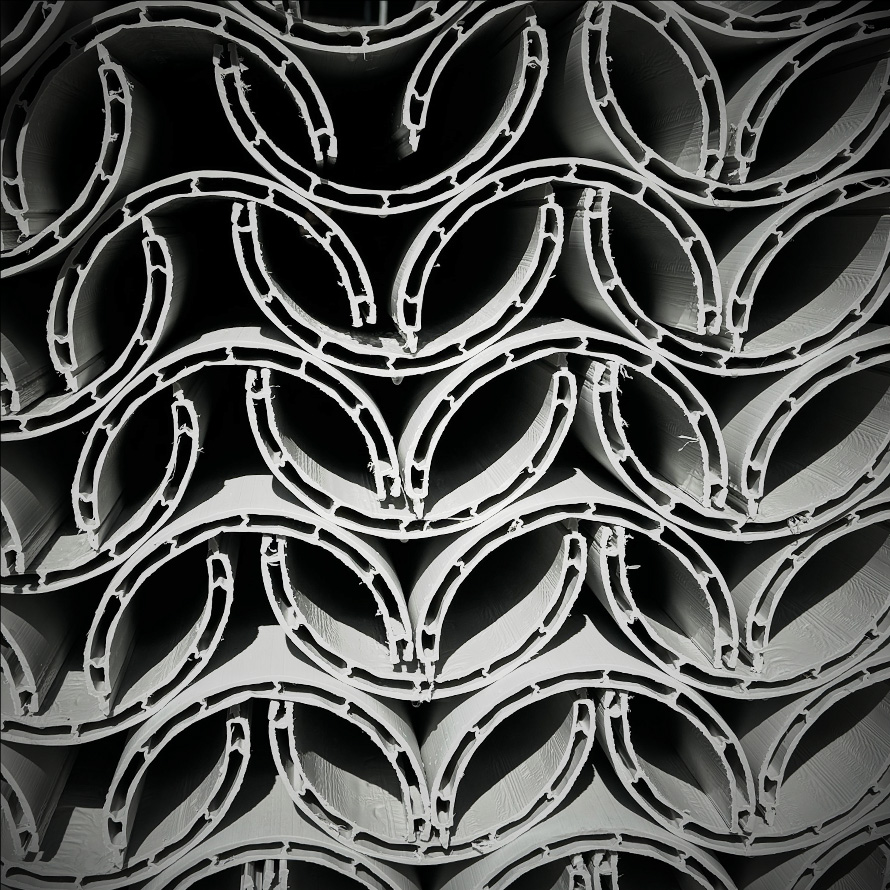

Our pressure tight single wall half pipes with incorporated sealing and click connection have been successfully used for offshore riser pipe retrofit. The system includes special end fittings and pipe to pipe connections. The whole section was injected using a hydrophobic injection material. Installation in the ex-zone by industrial climbers was restricted to the use of non-electrical tools only so needing a simple and fast but nevertheless excellent installation method.

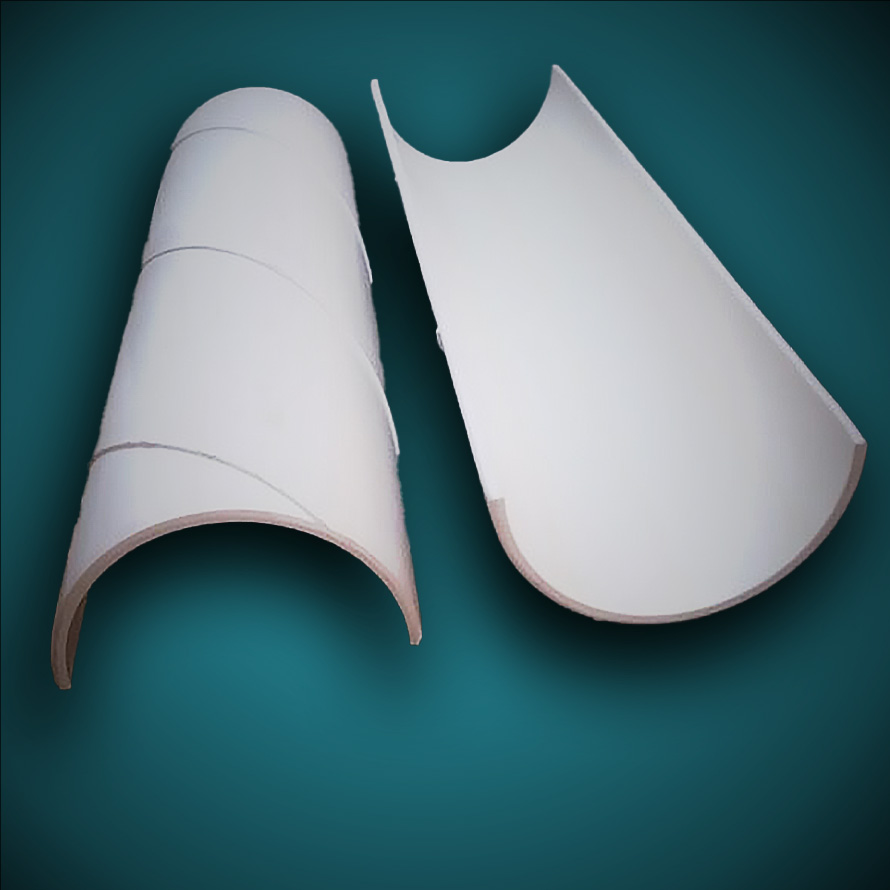

Our SHPS Half pipes are available in all individual custom sizes from 50 – 1200 mm with hydrostatic pressure tightness of up to 3.0 bars.

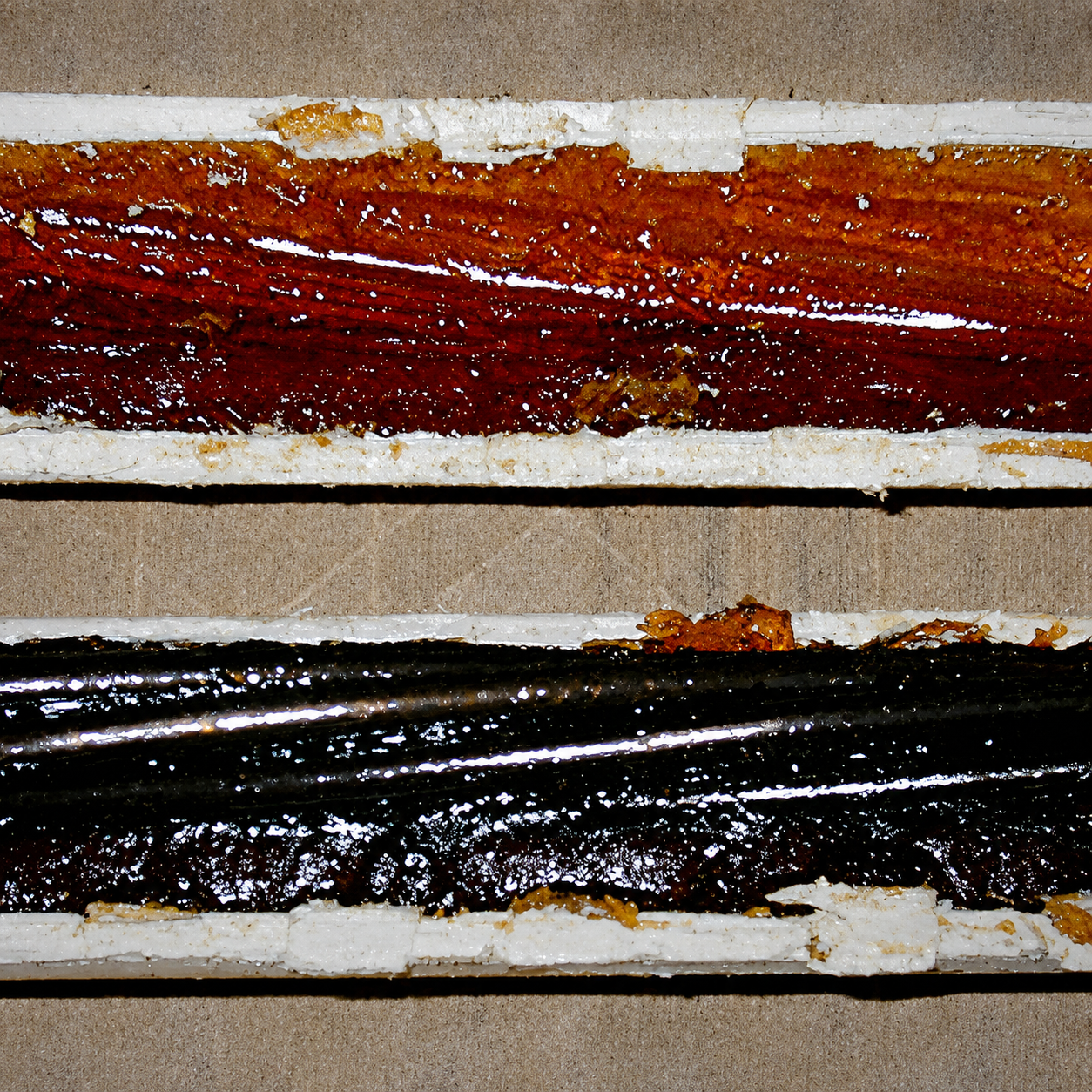

Inspectors of several anchors of the Provencher Stay Cable Bridge in Winnipeg/Canada observed excellent conditions of the strands, like new.
PESTEC Gel-Epoxy has been the choice to fill the anchors in the year of initial installation in 2002 for long-term protection of the anchors in this most of the year cold and humid area of Manitoba.
The bridge owner was excited about the excellent results and so reduced the number of anchor inspections from 10 to 4, since all 4 anchors were in perfect condition. Also the refill was done again with Gel-Epoxy.
This practice results also verify all our laboratory test results we provide for this material.
Product Information: Gel Epoxy

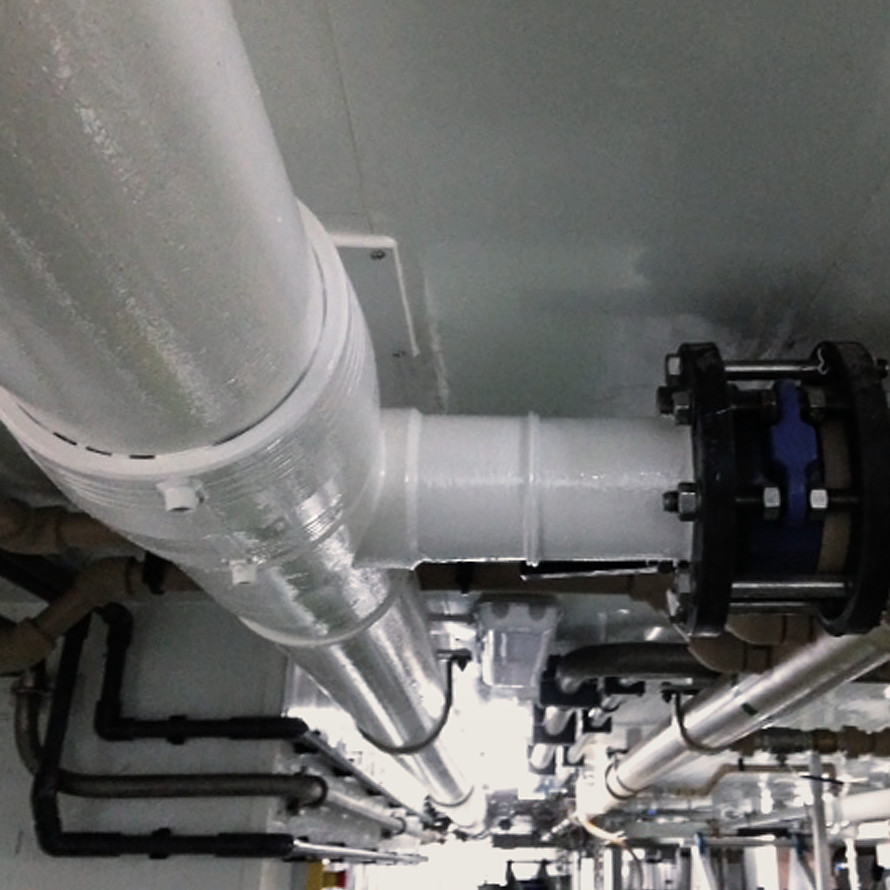

To meet the requirements of the Canadian Food Authorities, more than 200 m of HDPE pipes fittings and electro fusion couplers of size 200 mm have been coated by using our PU Paint system.
The requirement asked for perfect bonding of durable high thickness coating in white color with already installed PE 100 pipes, so preferred by brush painting method due to limited acces.
Further requirements were high uv-resistance due to partly exposed installation, seawater and humidity resistance, ambient temperature variation resistance and suitability for daily cleaning under high pressure by using standard detergents. The short drying period of our PU paint system allowed a very fast coating of all pipes.
Our PU paint system as well as our TPU paint system can be delivered with optimized material blend fpr brush or spray gun coating.
Product Information: HDPE PU Paint System and HDPE TPU Paint System

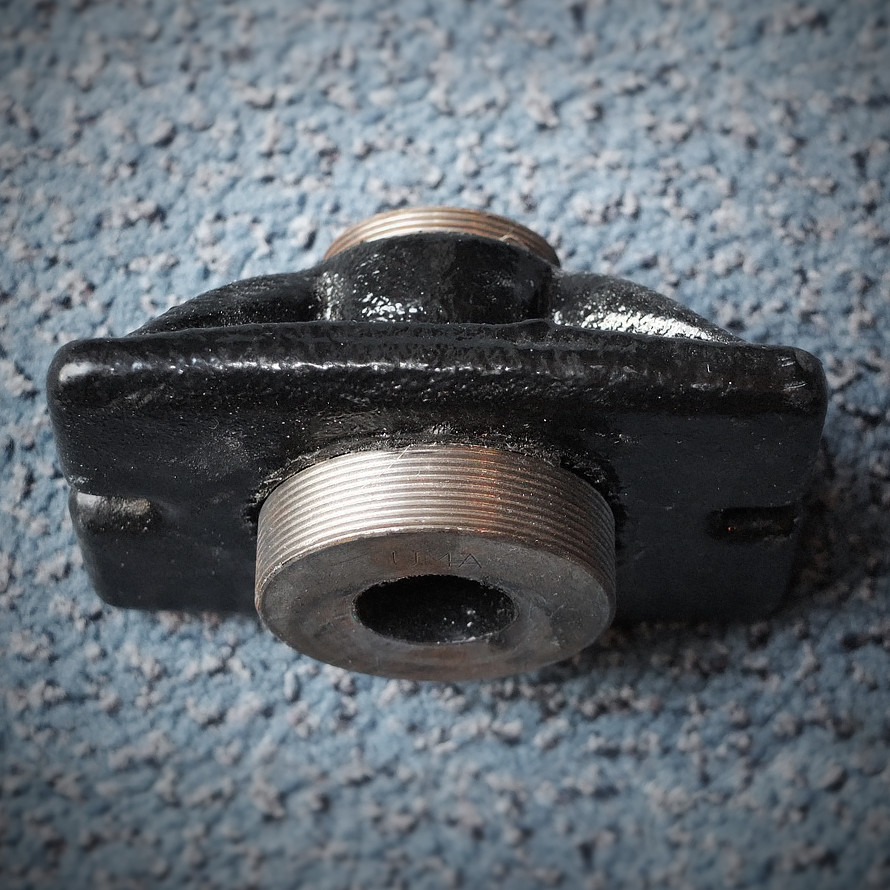

Electrically isolated post tensioning anchors and other metal parts can be achieved by using our AFS advanced flame spray method using HDPE material.
The advantage of the electrical isolation is, that it allows inspecting and monitoring the integrity of the corrosion protection encapsulation during installation and throughout the system service life by measuring electrical resistance.
Product Information: AFS PE Powder Coating
Customized HDPE half shells in uv-stabilized white color have been installed for replacement caused by additional damper installation for stay cables on a project in the USA.
Special customized shape and sizes as well as detailed welding procedure using white HDPE welding rods for extrusion welding resulted in a perfectly new appearance and corrosion protection.
Product Information: Customized buttwelding fittings

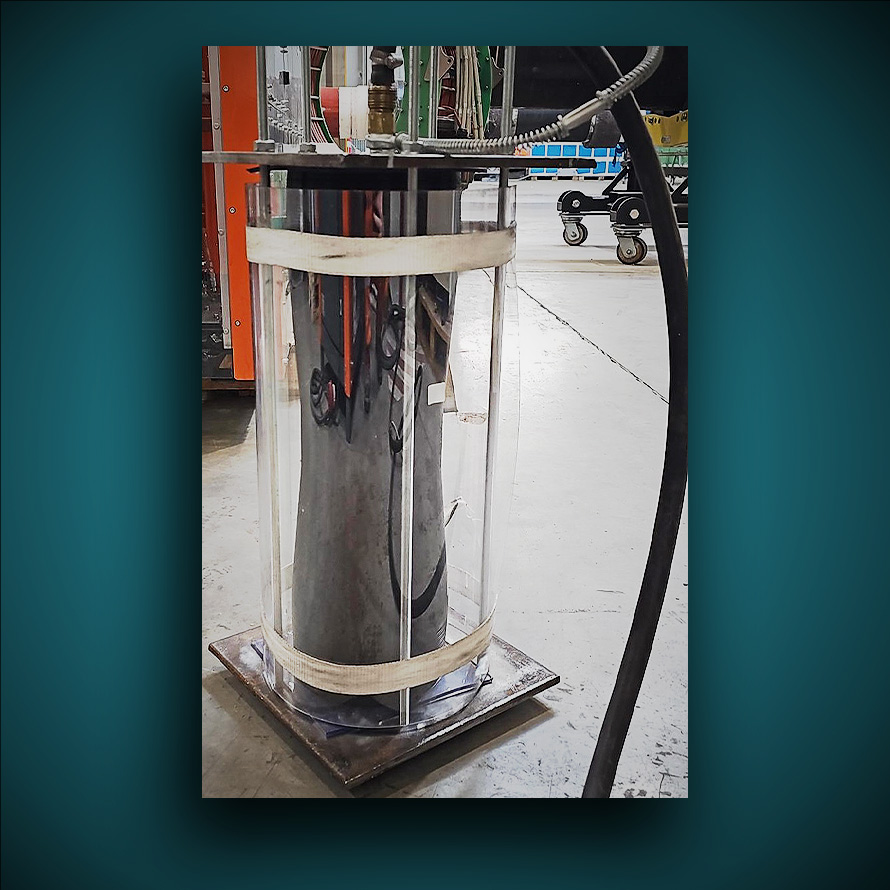

Dual zone and mono zone HDPE electro fusion couplers in 160/200 mm ( 6’’ / 8’’) are successfully implemented in production of a special pipeline system for high pressure application temporary reaching 150 bars (2100 psi) at 60-85°C (140-185°F).
Special features are optimized low tolerances, special located and aligned pins, removable thread pins and approved welding temperatures down to –20°C (-4°F).
Product Information: Customized Electrofusion couplers

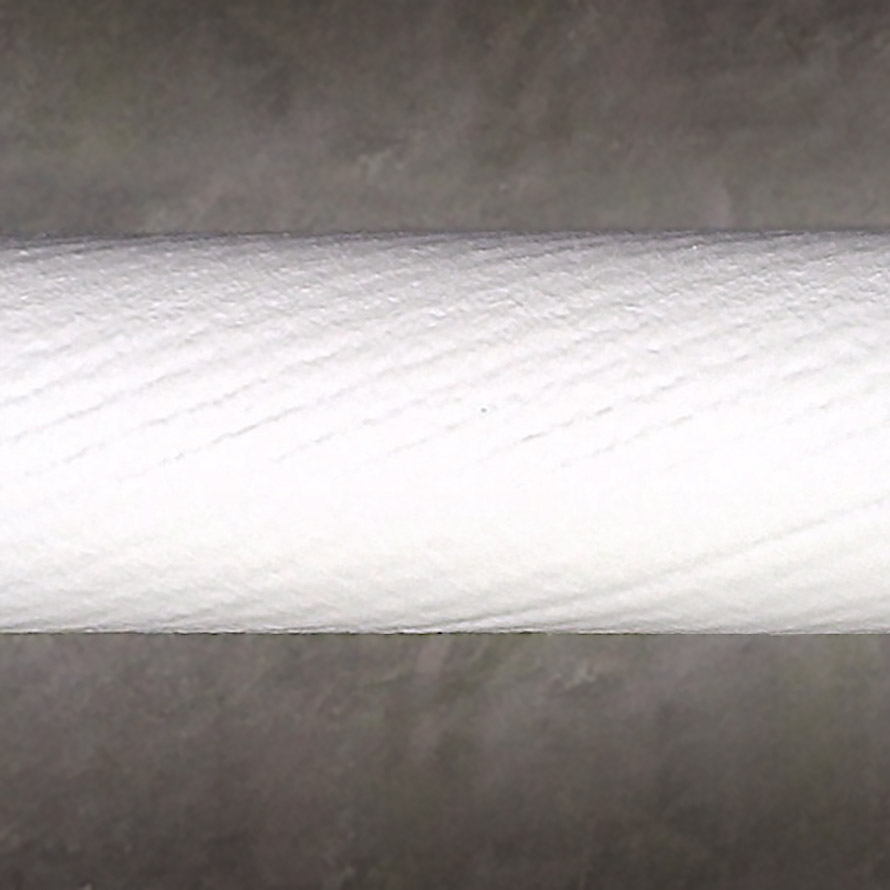

Our new AFS – HDPE Flame Spray coating has been successfully applied to high quality steel ropes to achieve excellent corrosion protection durability as well as to comply with aesthetic requirements.
The fast and perfect performance of our coating system and the typical excellent HDPE product properties additional the excellent uv-resistance of our AFS- HDPE powder convinced our client for the use in their high quality demand projects.
Product Information: AFS PE Powder Coating

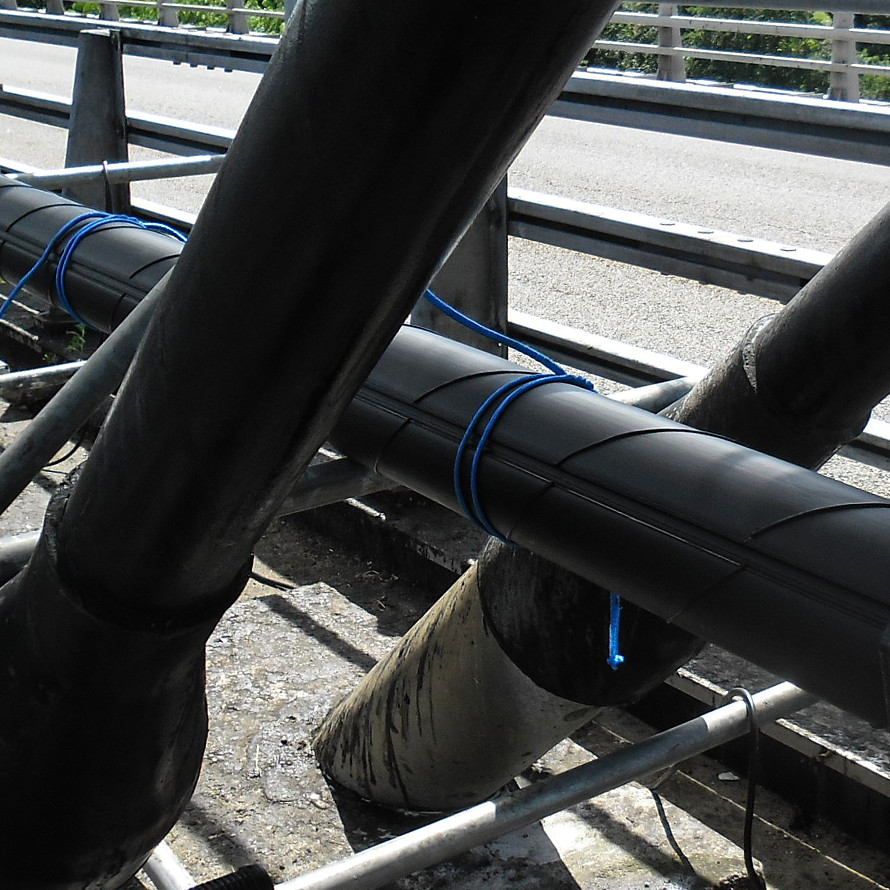

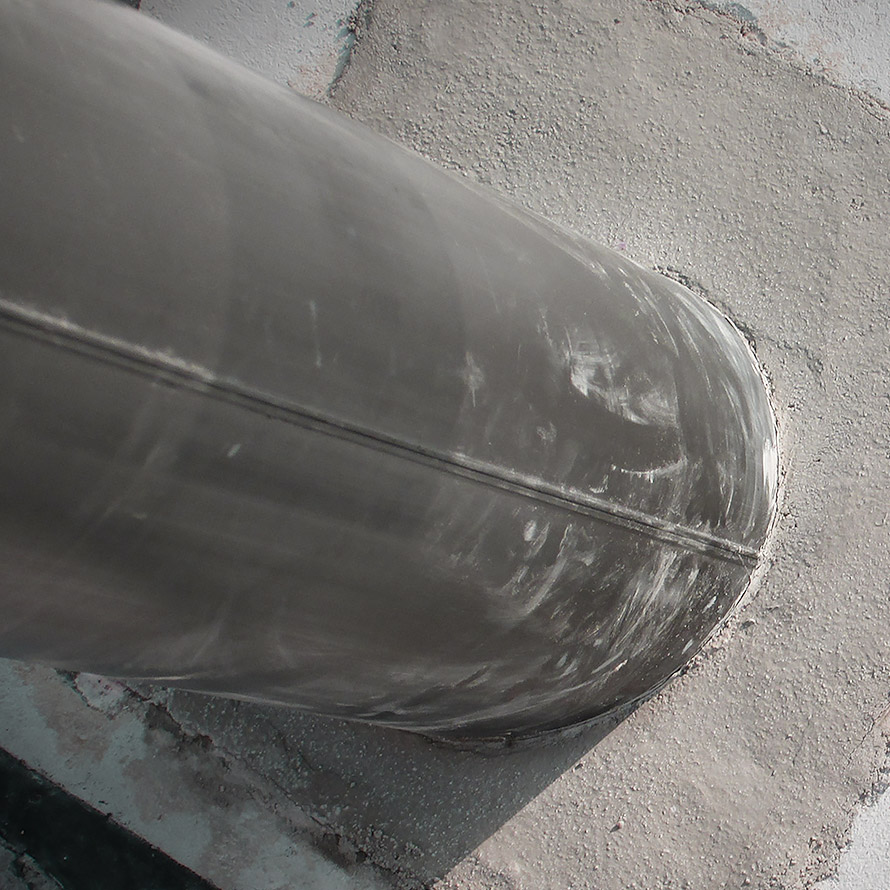

Our DHP HDPE double wall half pipes together with heat shrink wrap sleeves have been fast and professional installed during the repair of stay cables in Luxembourg.
The system is proven tight and durable for corrosion protection of the next several decades.
Product Information: DHP Half pipes

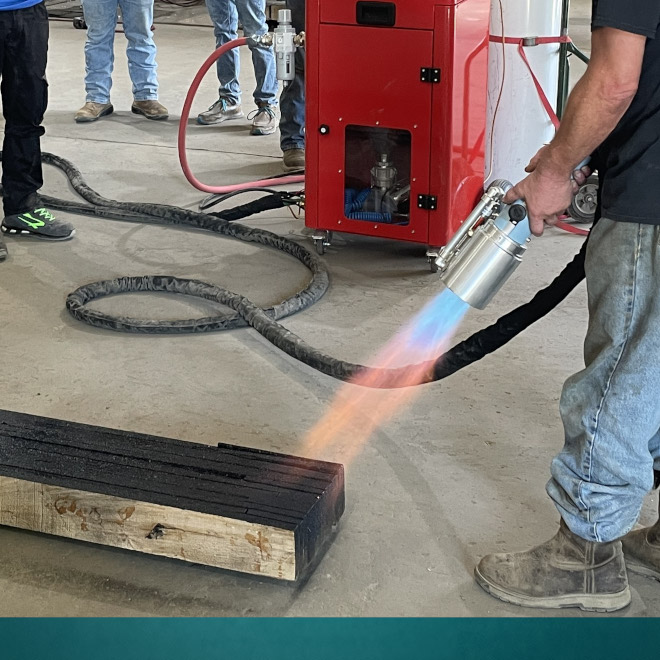

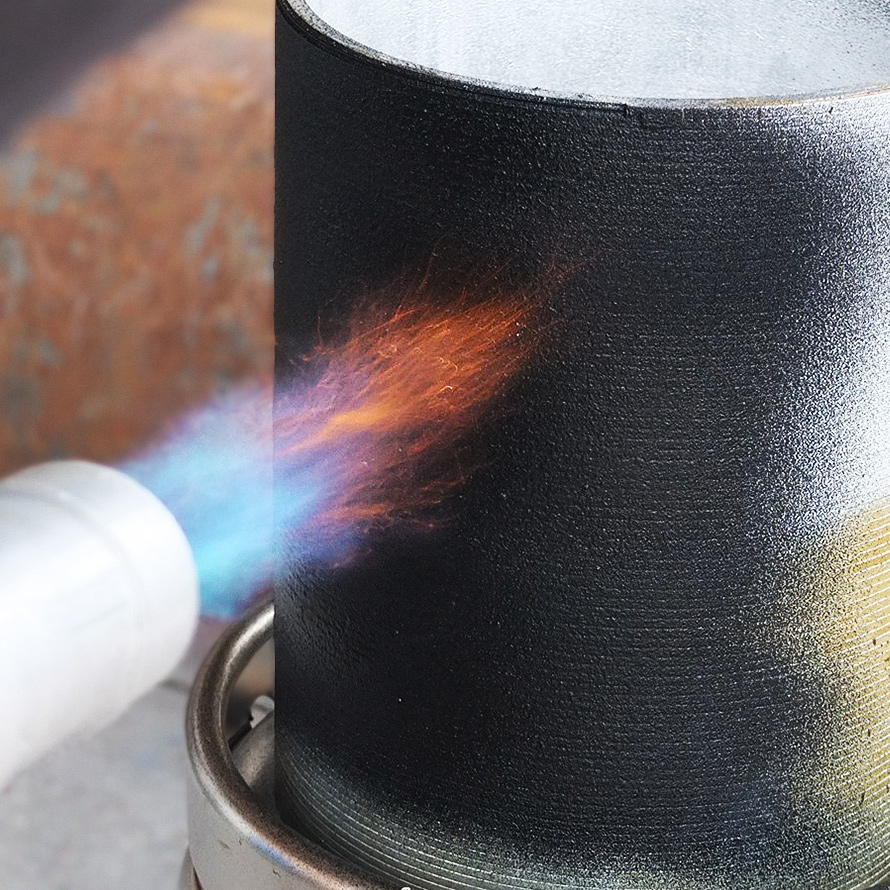

PES.TEC introduces the new AFS – Advanced Flame Spray HDPE powder coating system to the market. AFS HDPE Coating is suitable to apply on nearly all kind of materials like e.g. steel, iron, concrete, Aluminium, wood, plastics etc. and is optimized for excellent corrosion protection and durability, abrasion resistance, uv-protection, chemical resistance and fire retardancy.
The AFS coating process is simple in execution by using our AFS Flame Spray Equipments with different spray guns optimized for several applications and together with our AFS HDPE Powder applicable factory indoor and project outdoor. For most materials (for steel depending on wall thickness) no extra preheating is required, so AFS Coating can also replace painting and epoxy coating applications.
Product Information: AFS PE Powder Coating

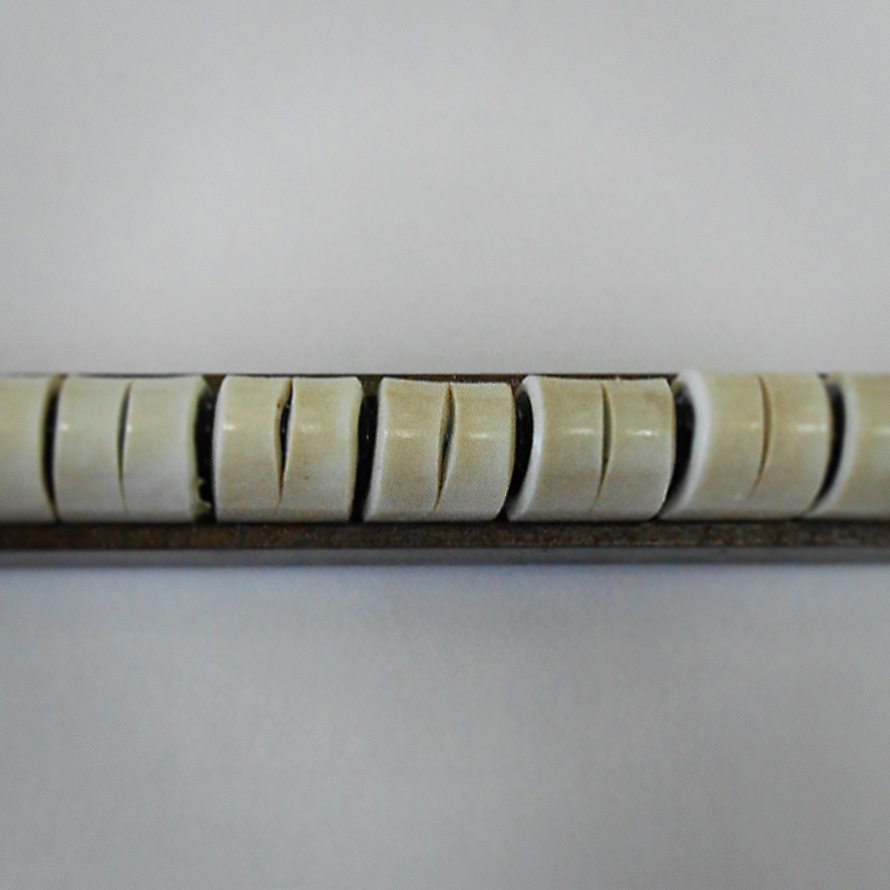

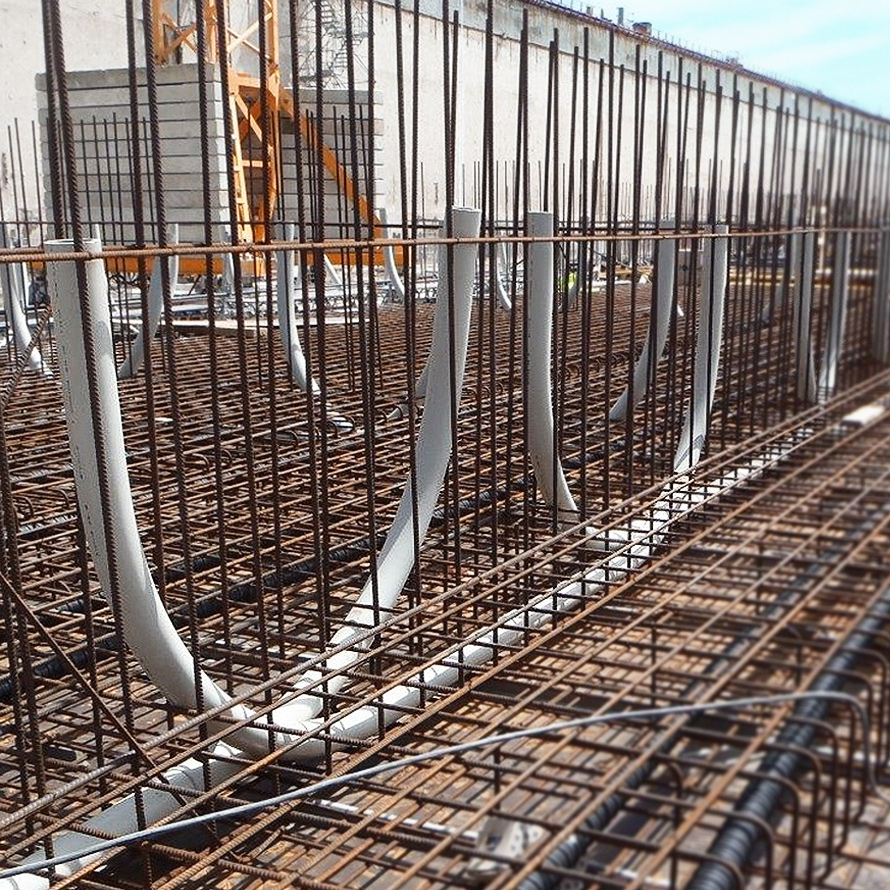

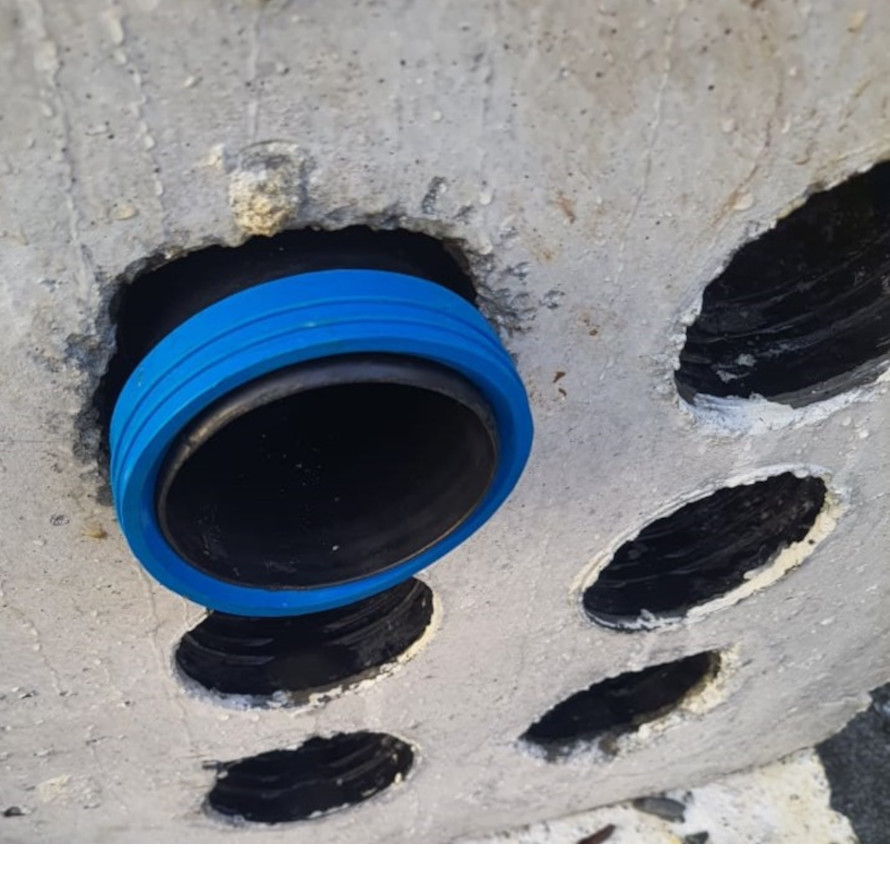

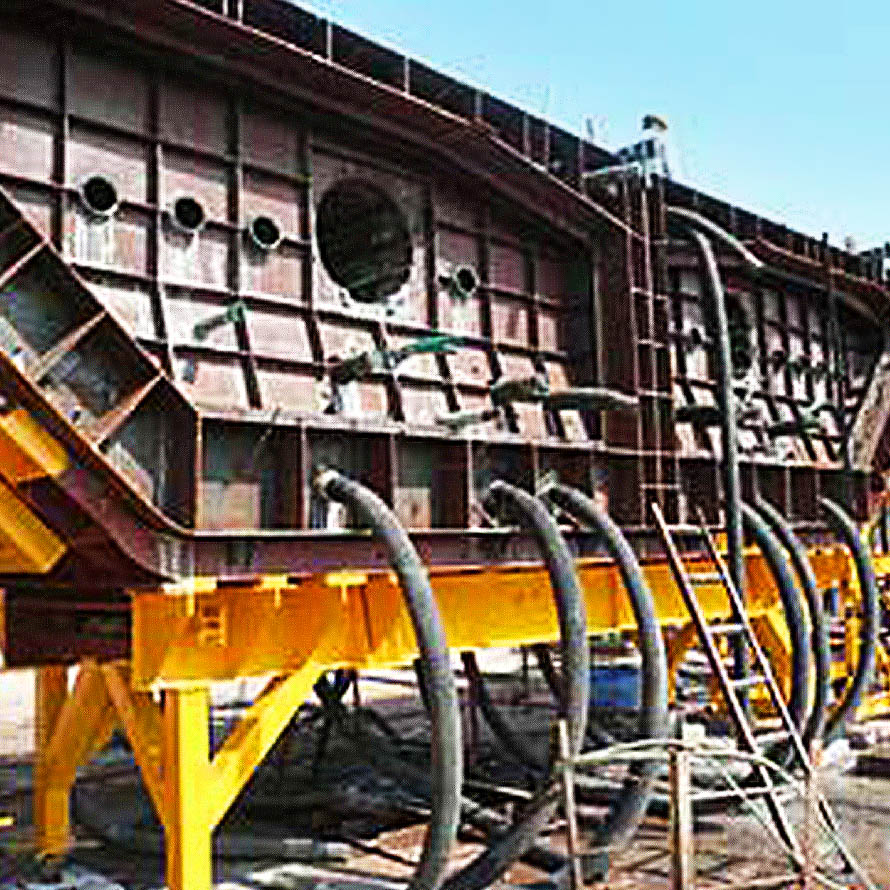

PES.TEC supplied more than 450 prefabricated, continuous curved and seamless IP-PP Deflection Bends for electrical isolated post-tensioning tendons of 6-7 strands. The 90° bends size 90 mm SDR 11 with special radius and straight extensions have been prefabricated to double bends 180° with individual distance sizes and were equipped with grout injection ports.
The double bends comply with the project requirements of perfect resistance during tendon stressing, high lateral pressure and stiffness and were installed horizontally installed and connected with IP-PP ducts using heat shrink couplers.
Forme 10 Dry-Dock in Marseille will get the third biggest dry-dock in the world and the biggest in the Mediterranean Sea.
Product Information: Customized buttwelding fittings
NOCX HDPE pipes passed > 3000 hrs ESCR-Test (Environmental Stress Crack Resistance) performed according ASTM D 1693 @standard 98°C thermostatic water bath with 10% Igepal concentration. No cracking was observed in all 10 test specimen.
The test result of > 3000 hrs far exceed the minimum requirements of just 600 hrs in PTI and FIB specifications and by this underlines the extraordinary durability properties of our pipes.
Product Information: NOCX HDPE Pipe
PES.TEC supplied our NOFX formulated HDPE Compound in color solver for the production of Locked Coil Strand Cables used on Lusail Bridge in Qatar. Reliable test results and experiences of more than 400 bridge installations convinced the producer of the extraordinary UV-Resistance of our material. The work is still under construction.

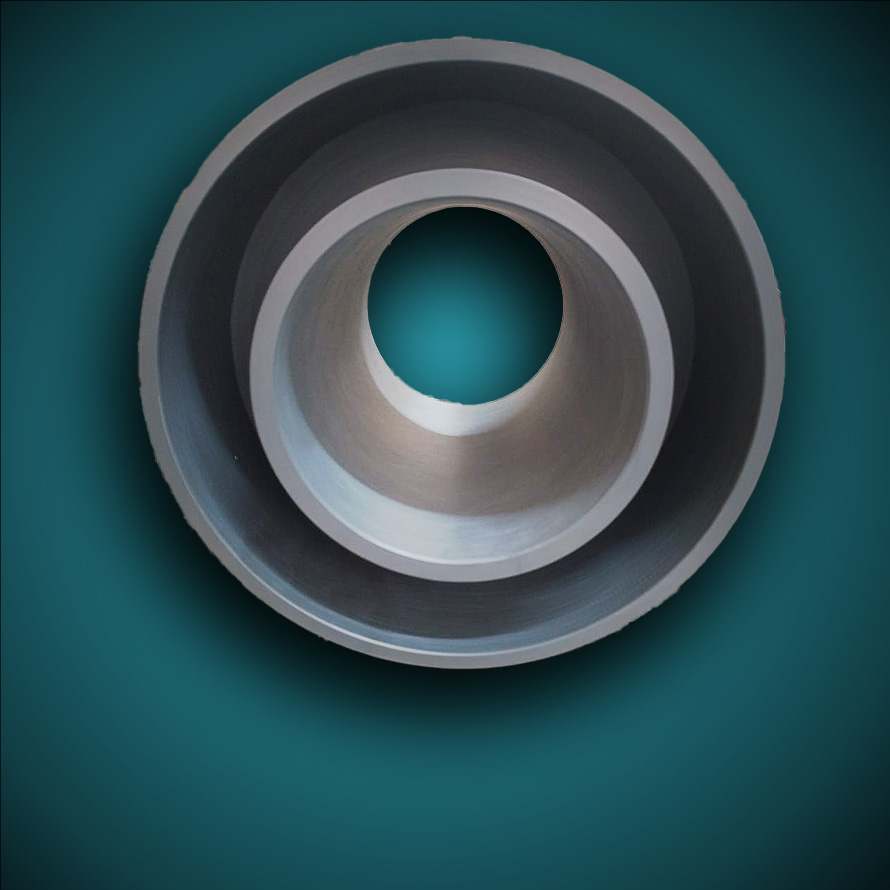

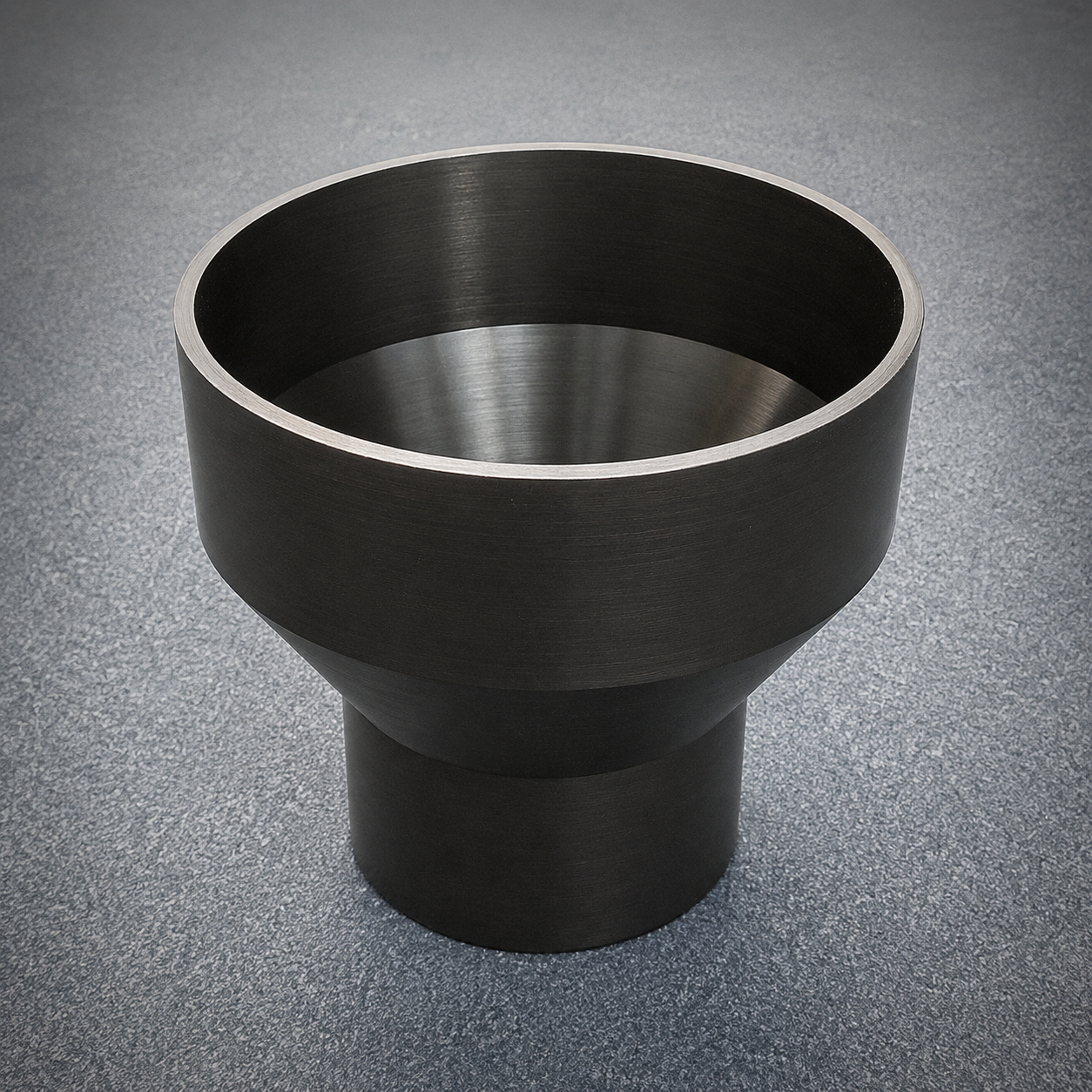

For the same project we also supplied same silver colored special Heat Shrink Pipe Reducers for perfect long term connection between the Locked Coil Cables and the sockets.
Product Information: Heat Shrink Pipe Reducer

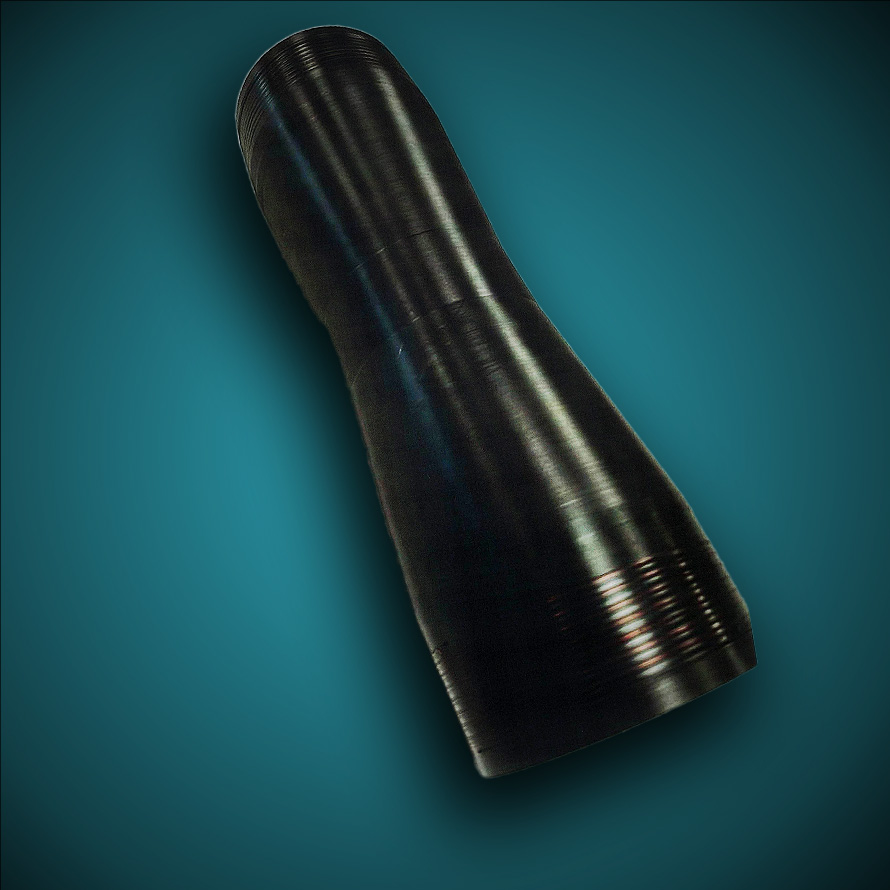

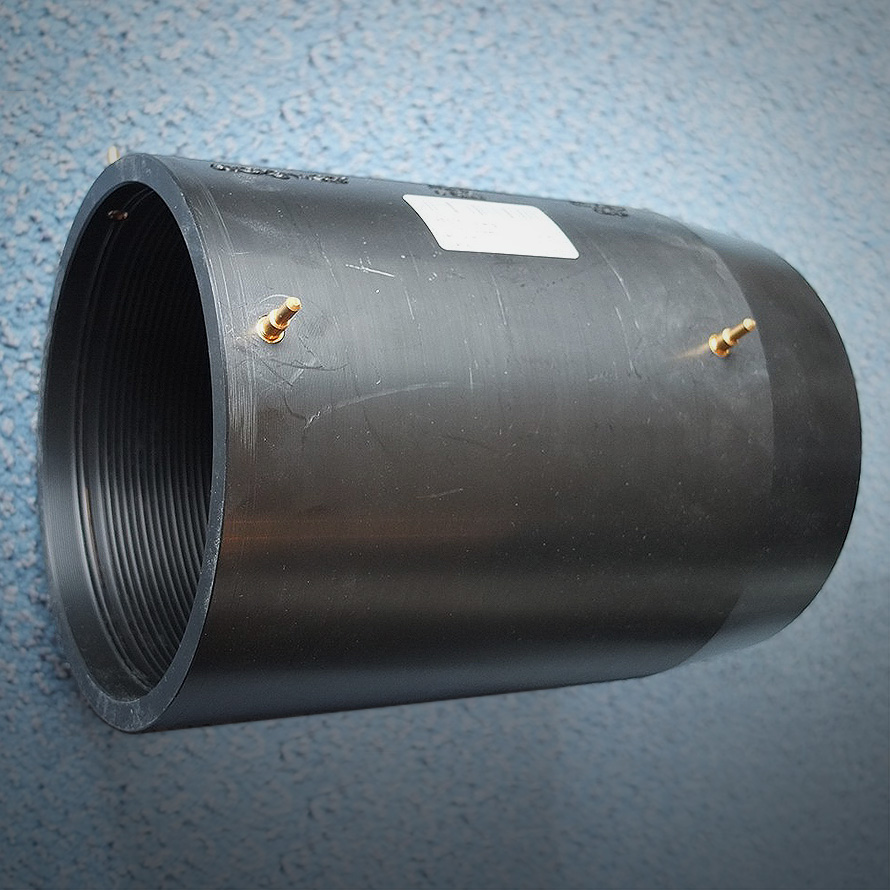

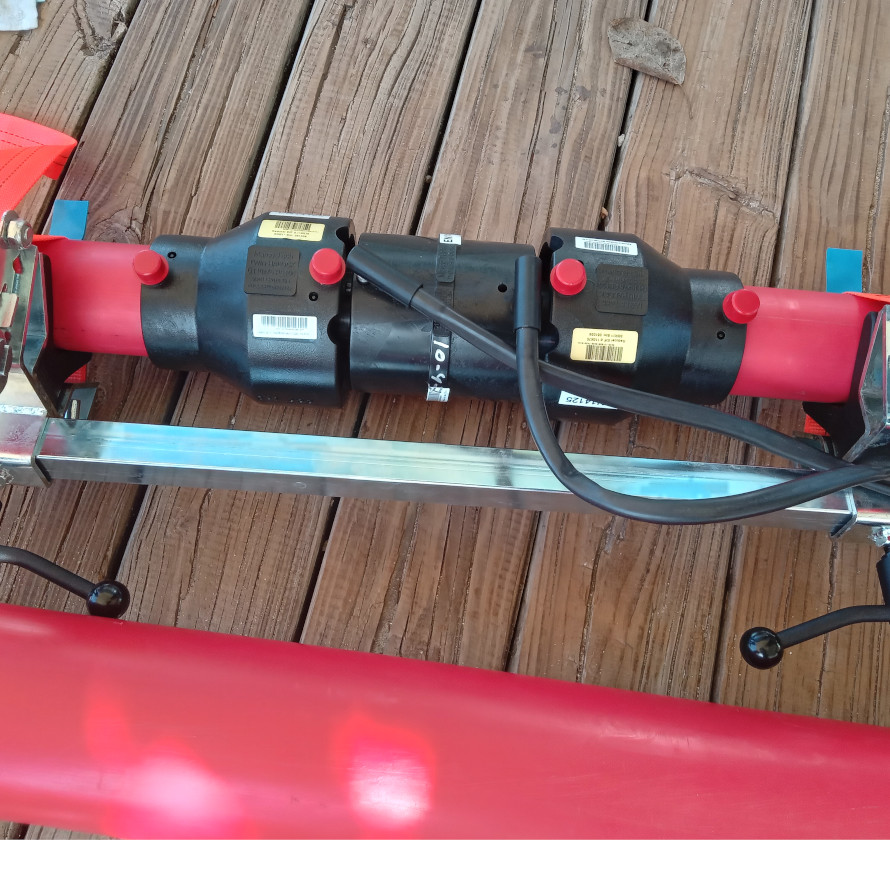

PES.TEC designed special 160 mm (6’’) HDPE electro fusion couplers for a special high pressure application temporary reaching 150 bars (2100 psi) at 60-85°C (140-185°F).
More special features are the dual zone, optimized tolerances, special located and aligned pins, removable thread pins and approved welding temperatures down to –20°C (-4°F).

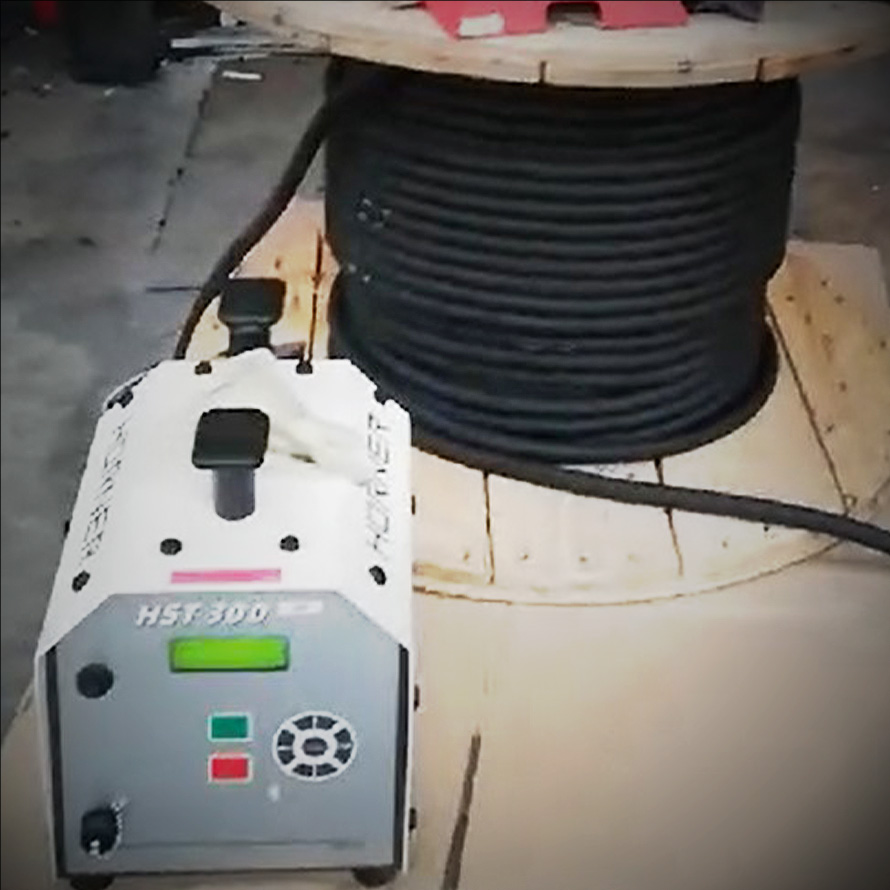

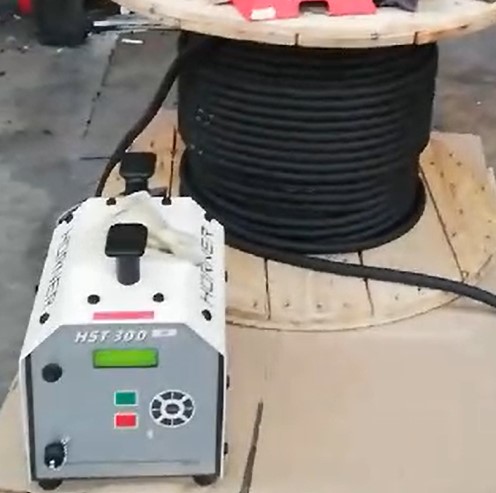

Welding is executed using GPS supported electro fusion welding equipments.
Extended sizes up to 315 mm (12’’) are under preparation.
Product Information: Customized Electrofusion couplers

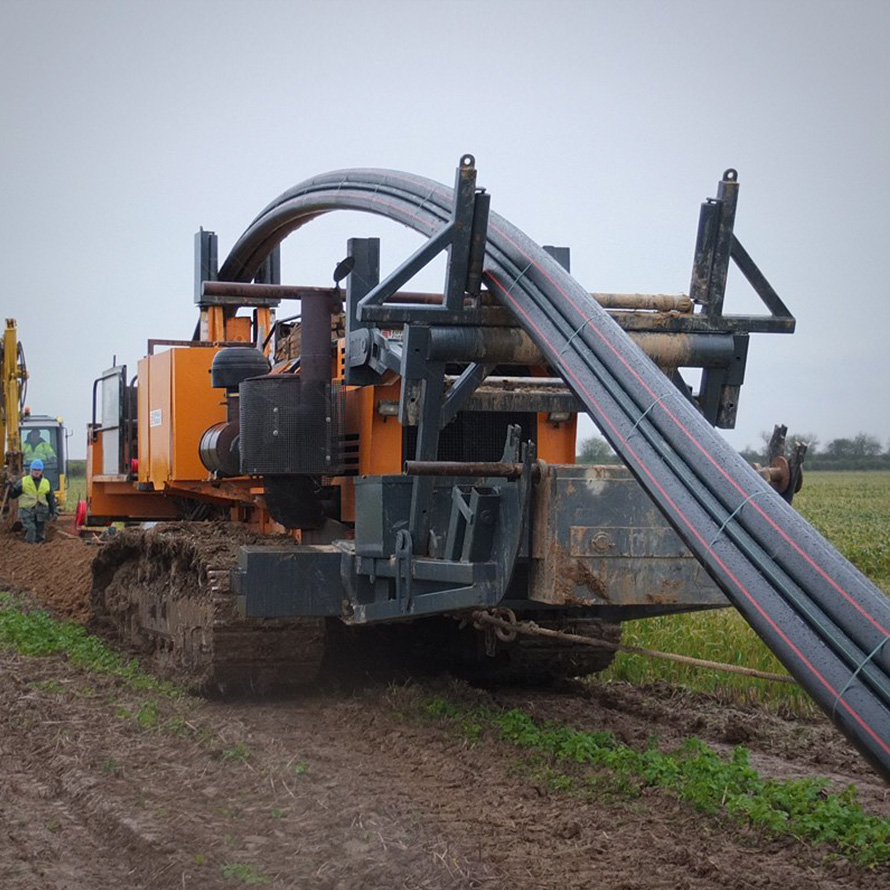

75000 m (250000 ft) of CP2 HDPE Cable protection pipes Q2 in size 180 mm (7’’) SDR 13,6 have been supplied in 410 m (1350 ft) lengths on Mega drums OD 3700 mm W 2450 mm within 3 month.
Using several special coiling technologies enabled us to keep the max ovalization by max 8,5% (Requirements was max 10%).
3 pipes were fixed using a automized machine procedure and simultaneous plowed with a speed of up to 1000 m/day using a special cable plow equipment.
Product Information: CP 2 HDPE Cable Protection Pipe

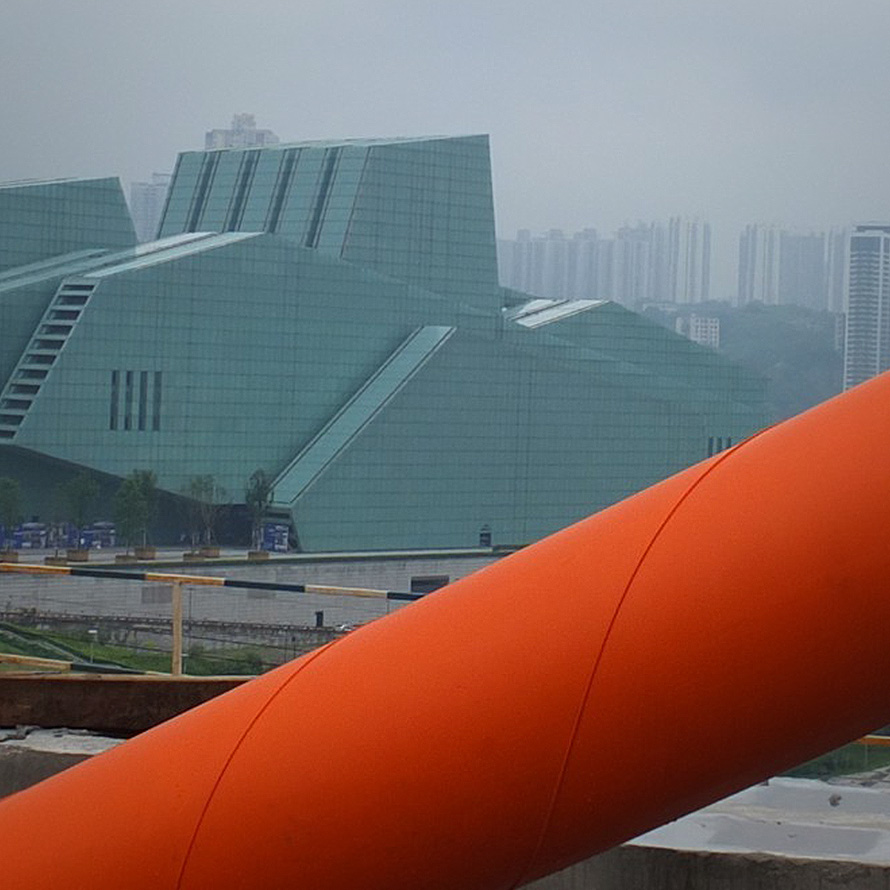

8000 m NOCX HDPE pipes 355 mm including external helicoidal double helix in color traffic orange have been supplied within just 3,5 month including shipping time for Dong Shui Men Bridge in Chongqing.
The 6-139 strand cables are the biggest stay cables used in China so far.
The bridge crosses the Yangtze River in the centre of 30 million Megacity of Chongqing close to the new Opera House opened in 2013.
Product Information: NOCX HDPE Pipe

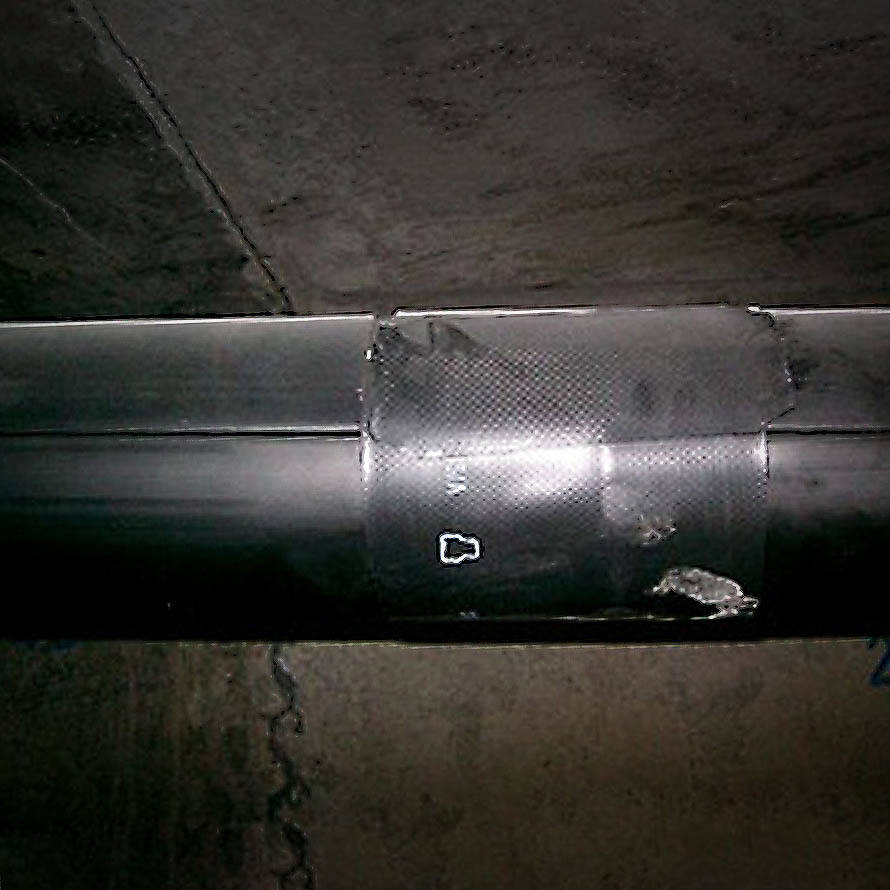

DHP HDPE Pipes including heat shrink wrap sleeves have
been successfully used for external tendon repair inside a
box girder in Singapore for long term tight and protective
solution. Easy, fast and professional application
Product Information: DHPS 2 Half Pipe

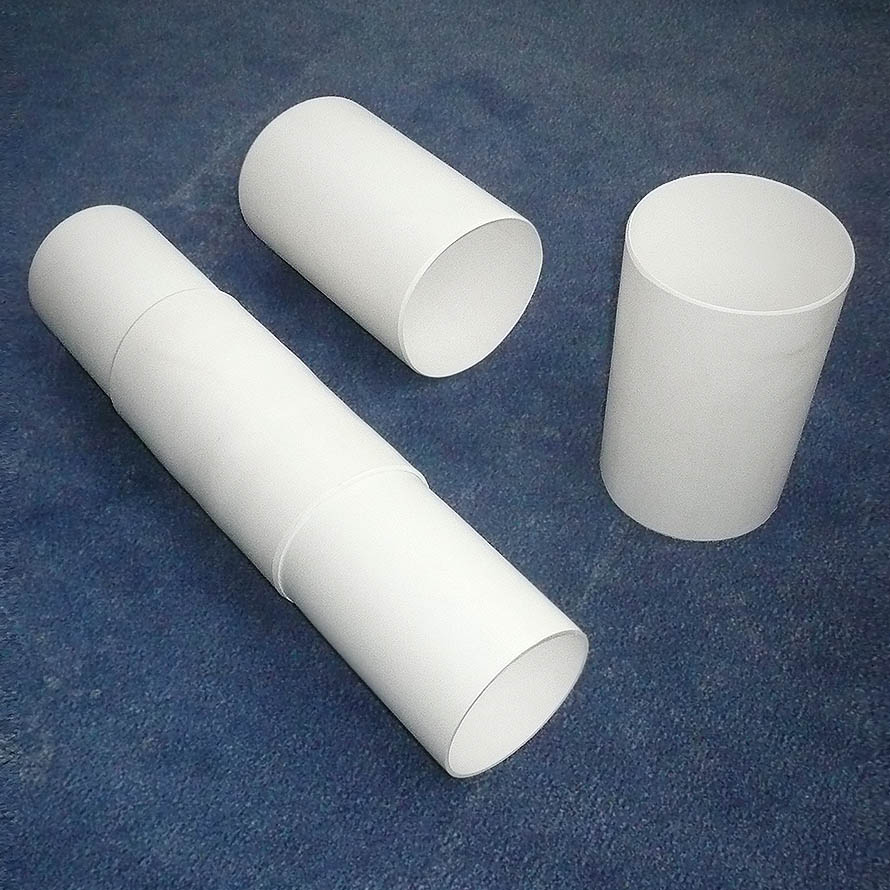

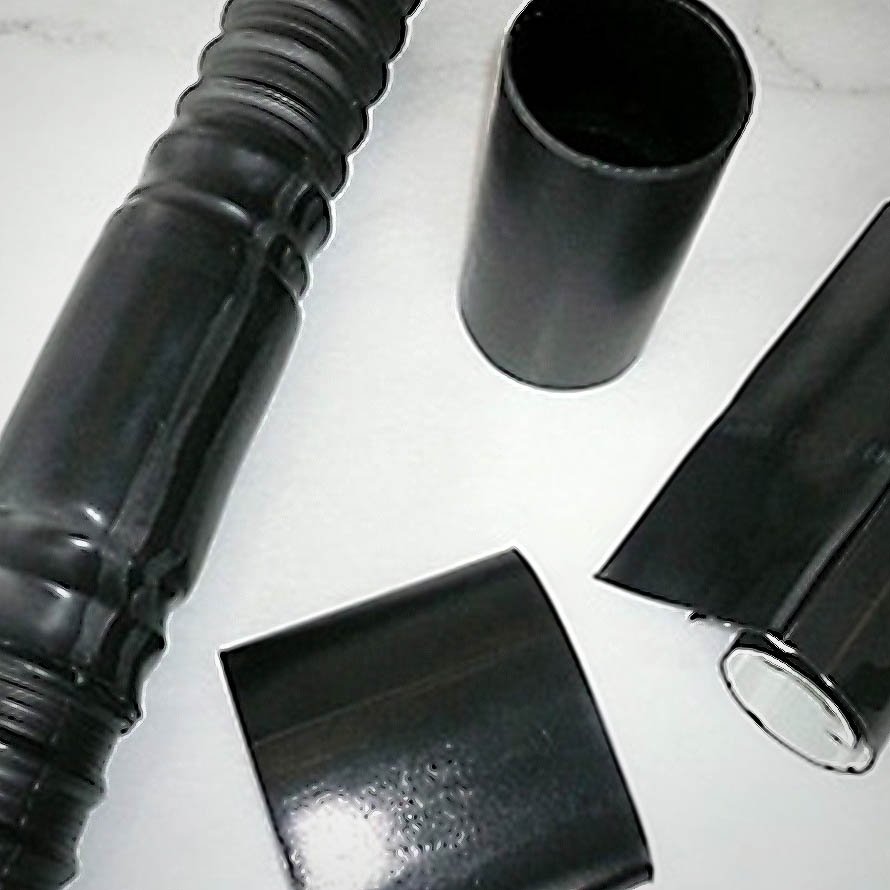

Heat shrink pipes are now also available in colored version
e.g. white, so following architecture design requirements
for visible constructions. Technical properties remain the
same as black heat shrink pipes. On request colored heat
shrink pipes are available with similar uv-protection as
our NOCX pipes. Heating of colored heat shrink pipes is
recommended using a heat gun instead a flame gun to
avoid colored fire spots. Final shrinkage result is the
same, just shrinking time is little longer.
Product Information: Customized HDPE Shrink Pipes

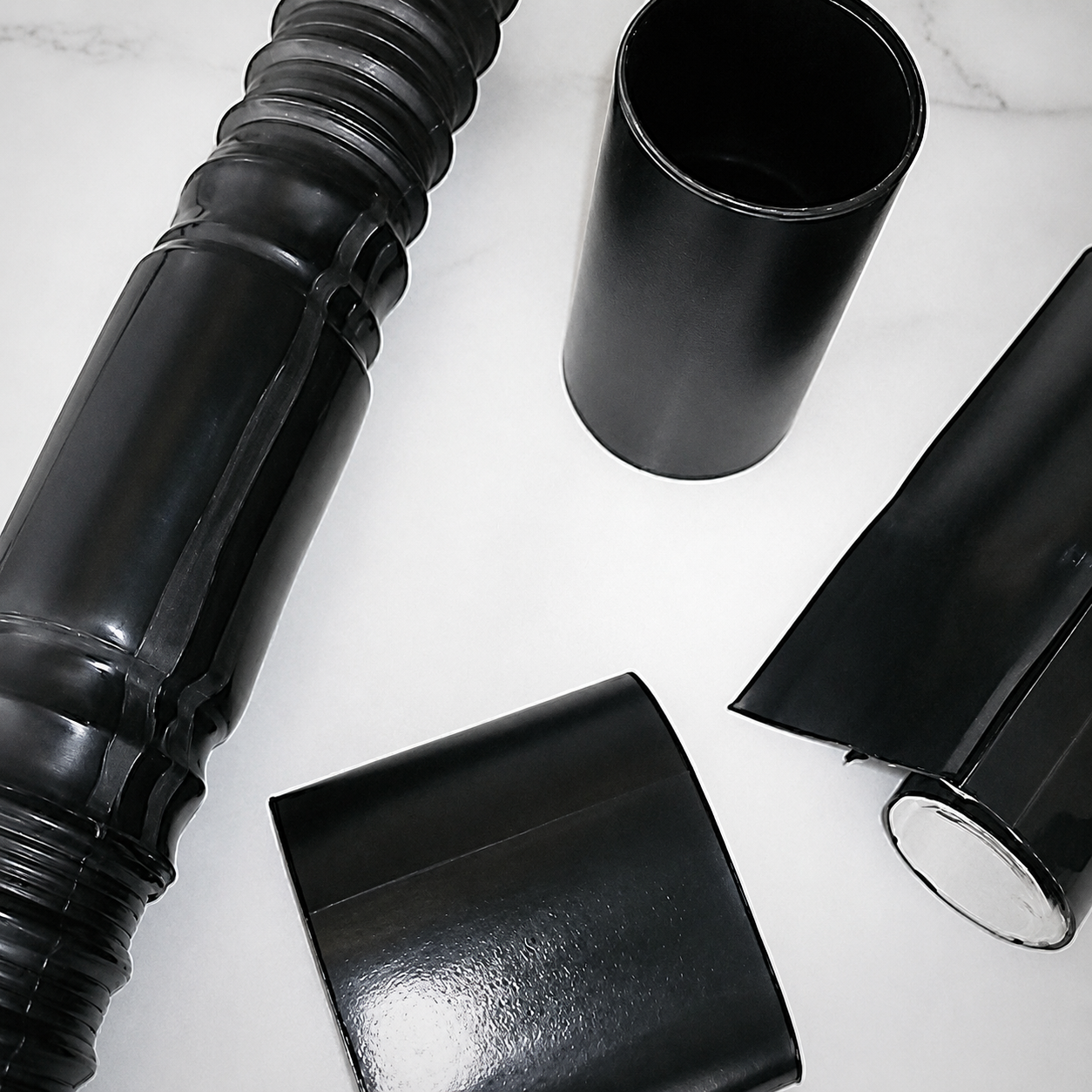

PESTEC present a new selection guide list for heat shrink
sleeves and pipes showing suitability for the different
applications.
View content:
TI 920-1 HDPE Heat Shrink Pipe Selection Guide List.pdf

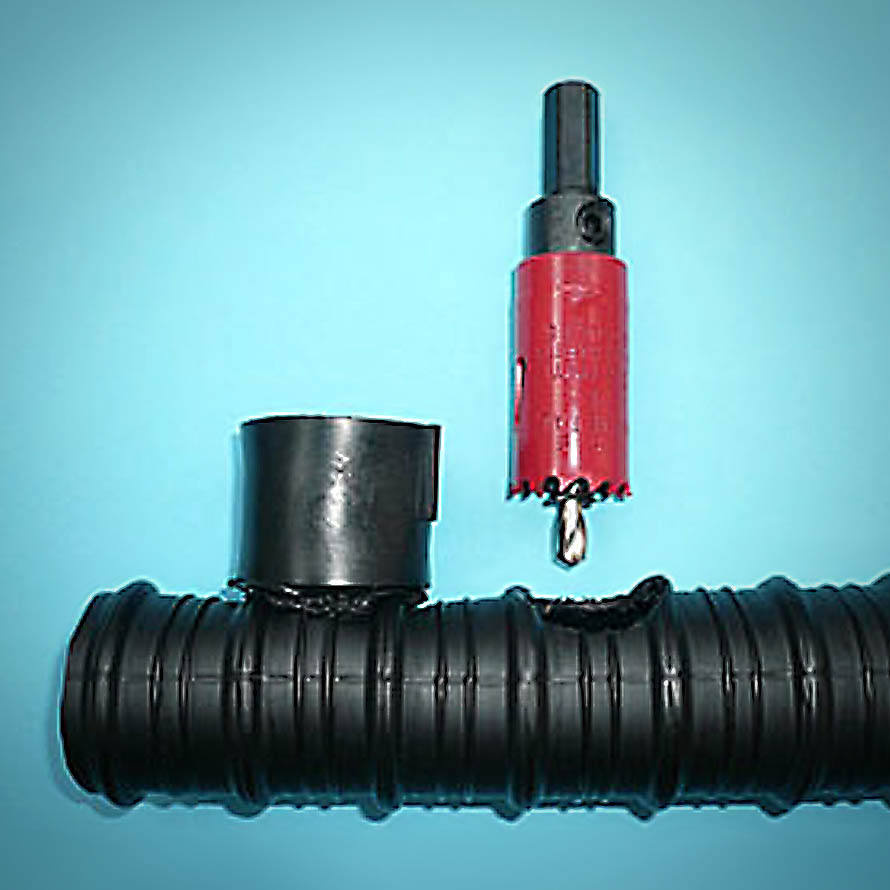

PESTEC offer new drill tool to be used for all size of
PT ducts including small size ducts.
Product Information: Grout Port Welding Equipment

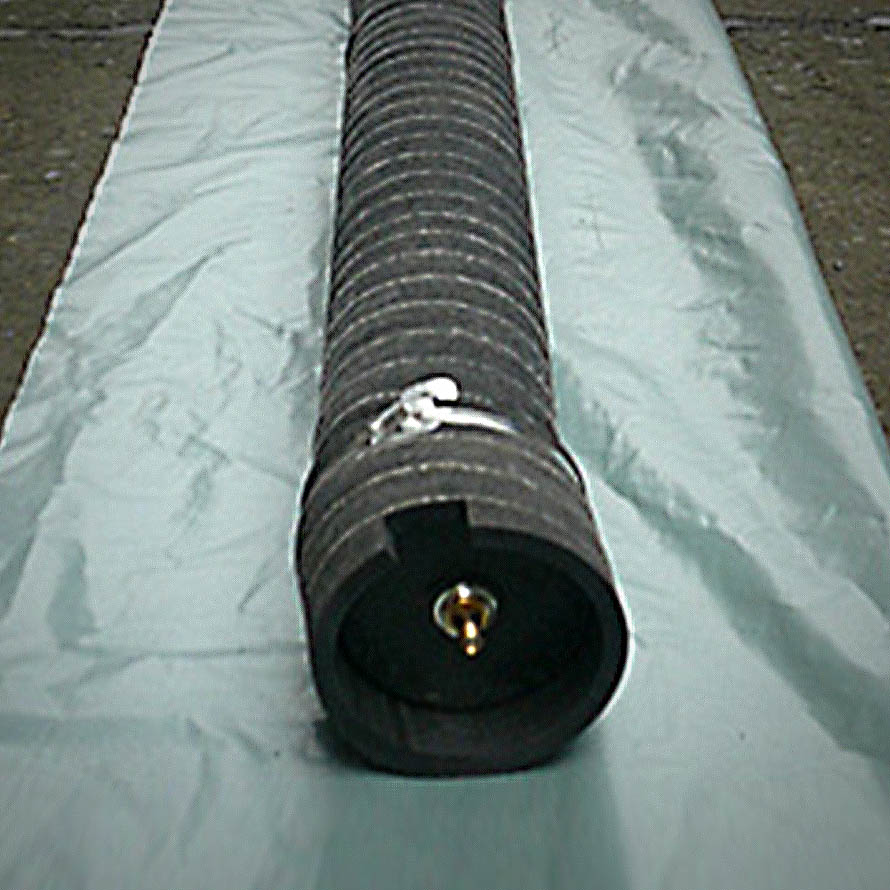

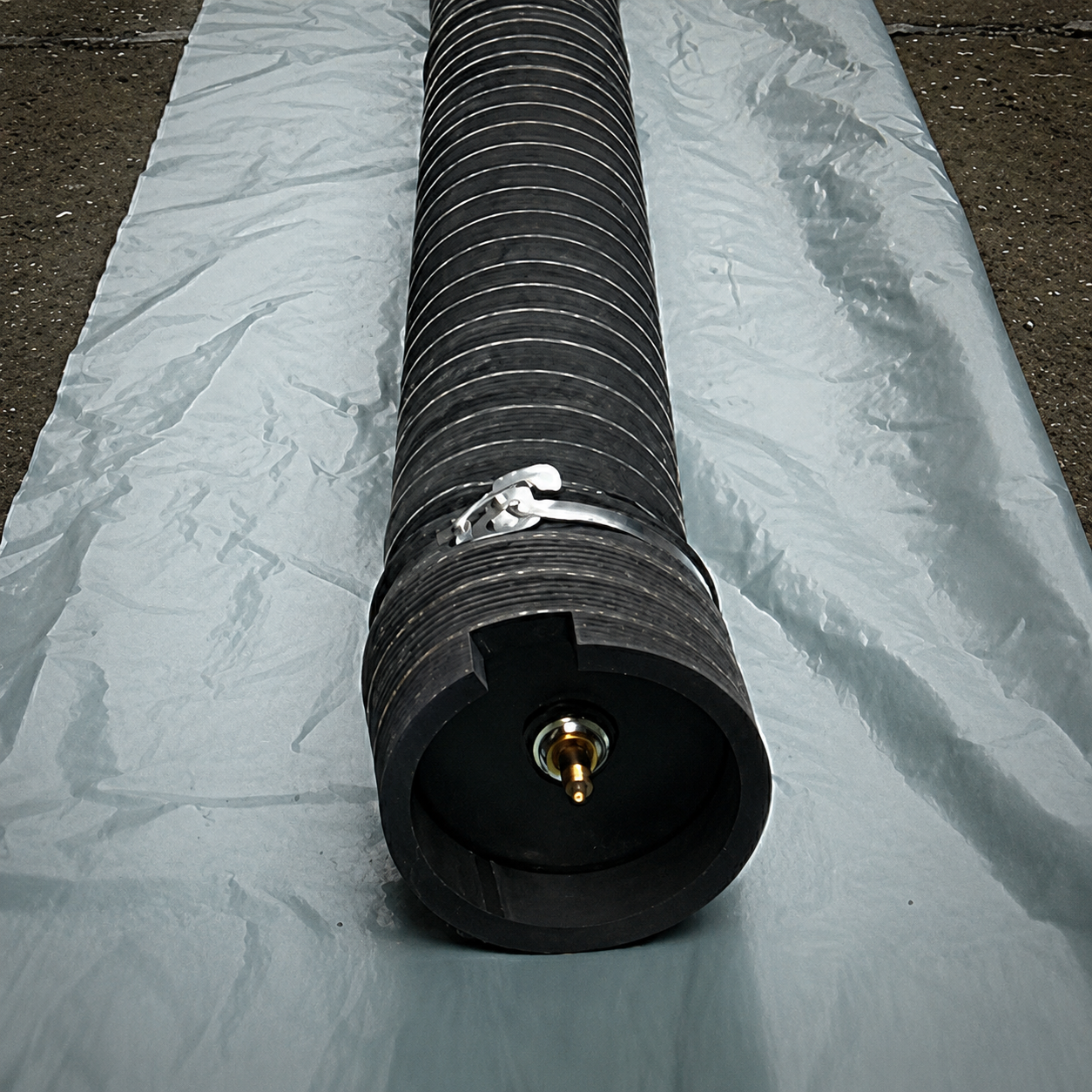

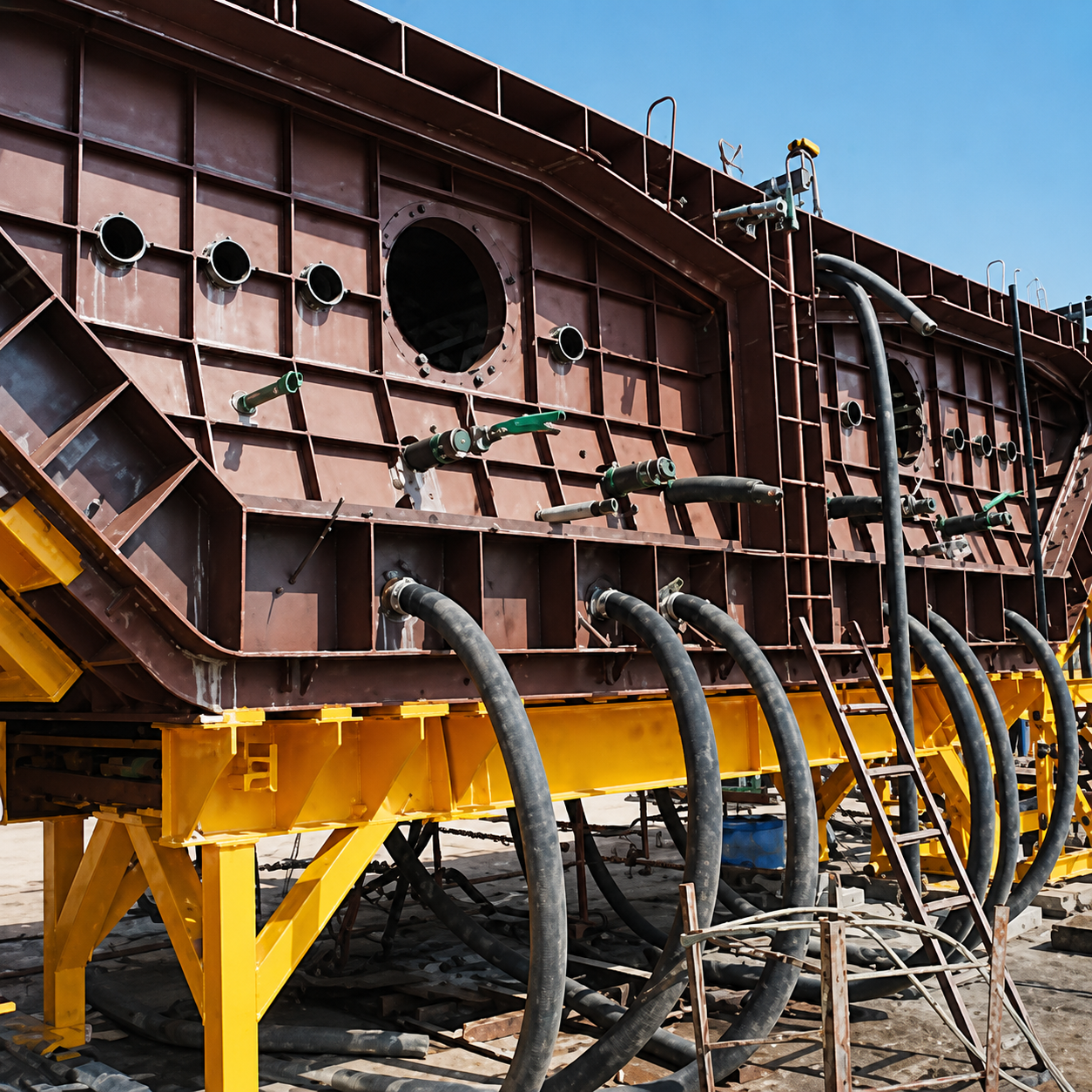

PESTEC introduce new Inflatable Rubber Hoses to use as
temporary internal bonded PT pipe stiffener during
concreting of segments and structures designed in sizes.
where concrete load can not anymore taken by the plastic
duct themselves.
Inflatable Rubber Hoses are available in sizes 25-250 mm
with wall thickness of 8-15 mm. They are expandable 15-25
mm depending on size and may be used for min 200 times
at max elasticity. Max available length is 30 m and hoses
include steel end cap at one end and end cap with
automotive tire valve to fill with 3-4 bar air at the other end.
Product Information: Inflatable Rubber Hose

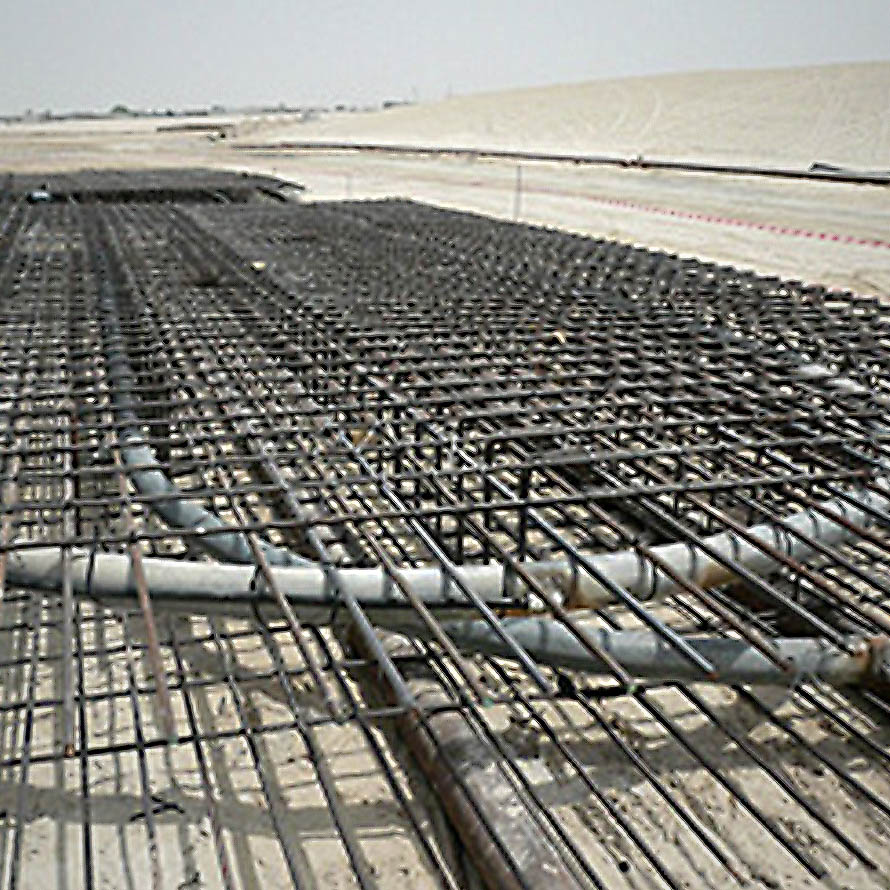

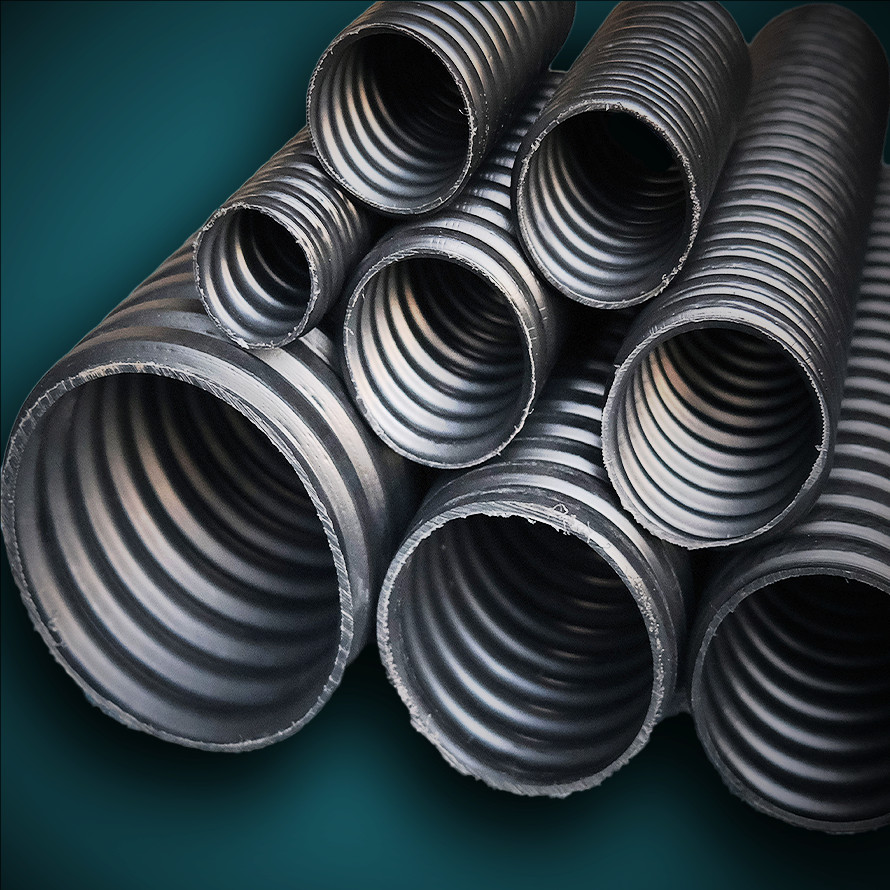

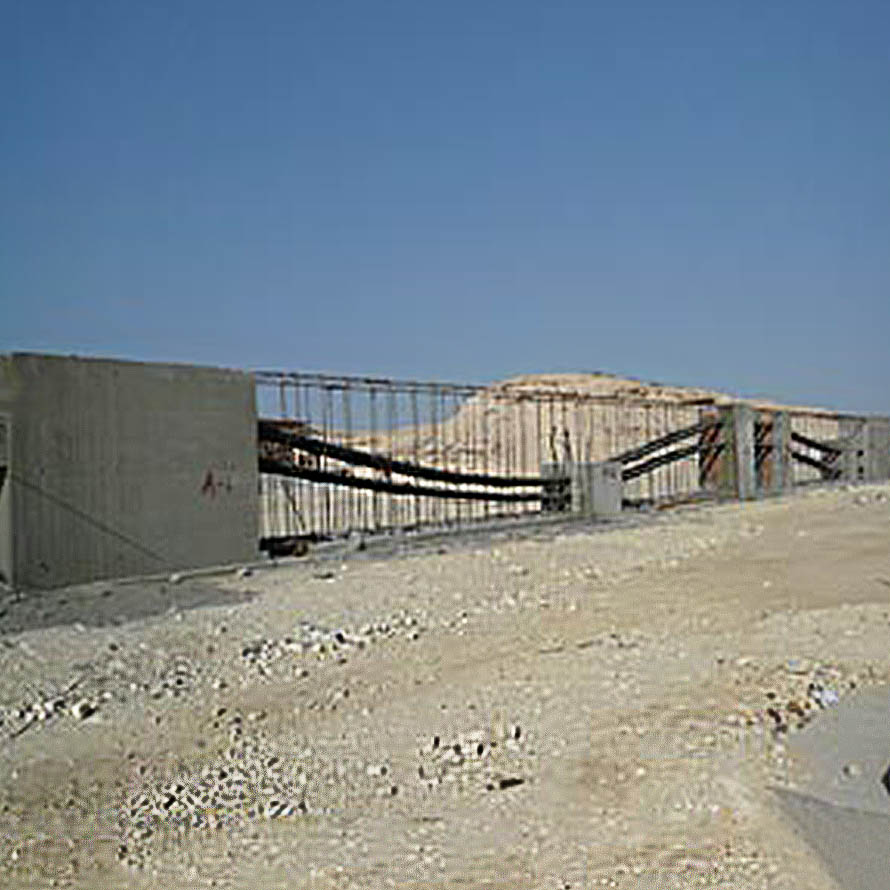

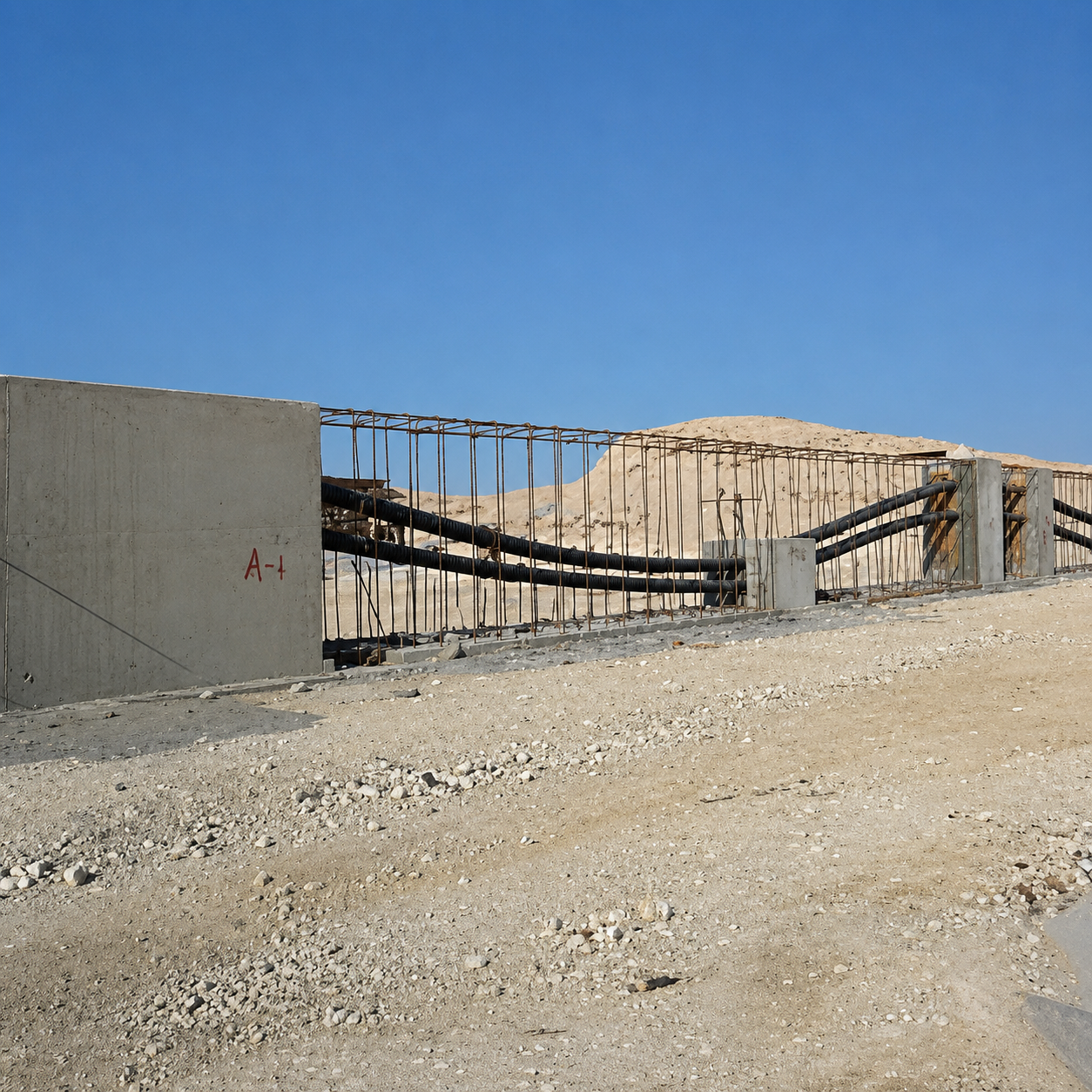

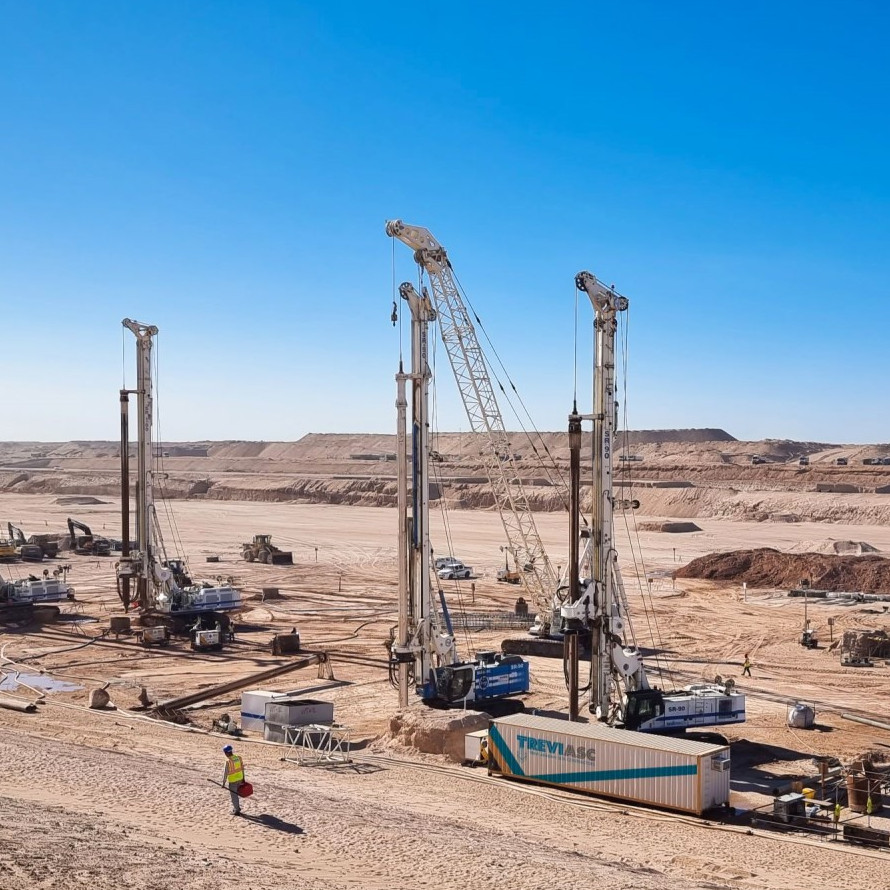

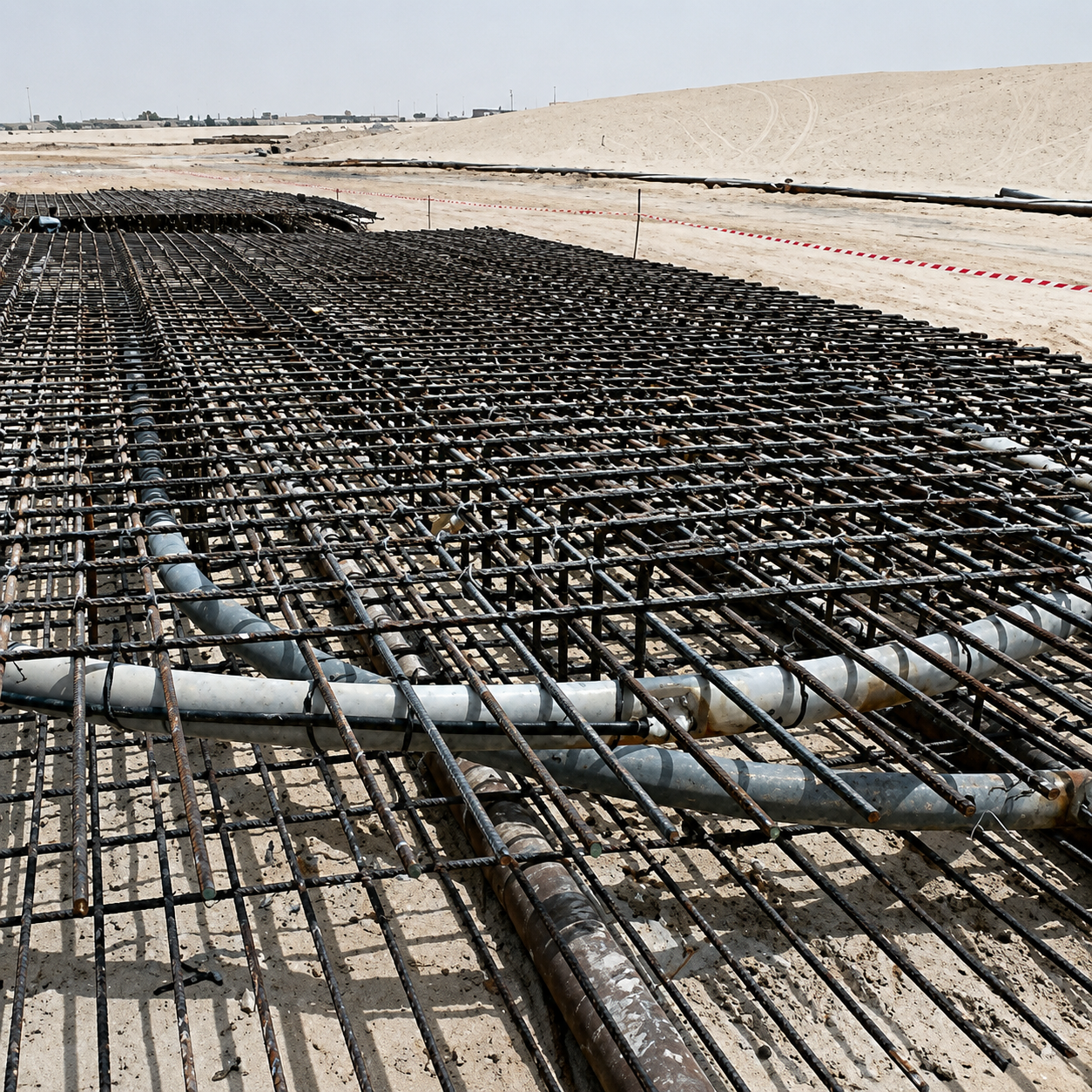

PESTEC has started to supply 118.000 m IP 4 duct system
contract for new Canal link to Dubai Creek constructed by
diaphragm wall cages strengthened by internal bonded PT
method.
The new system consists of 100/116 mm ducts, heat shrink
pipe and steel bends.
The total installation period is estimated for 16 month.
Product Information: IP 4 Duct

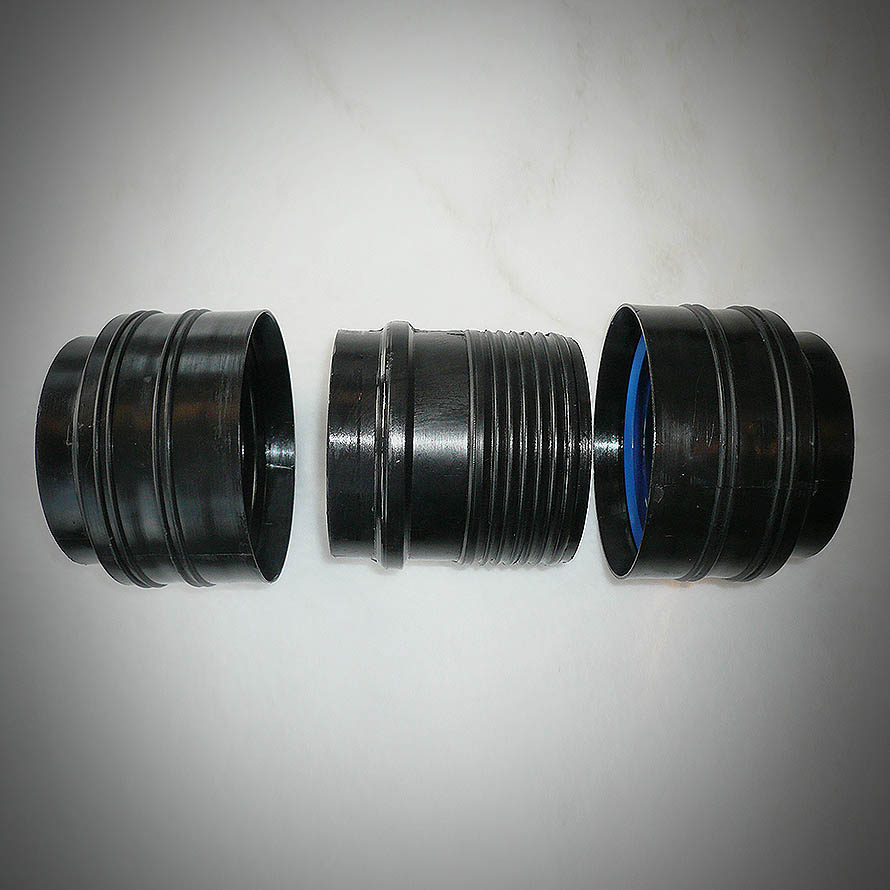

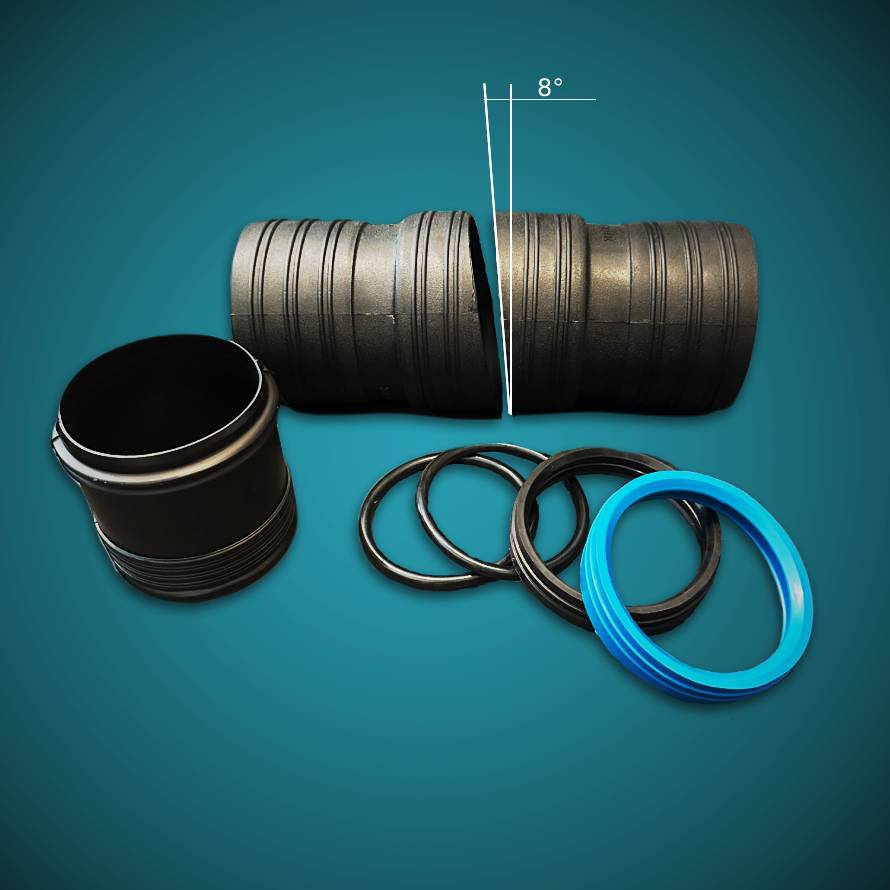

PESTEC introduce our SB 4 Coupler System for
pressure and corrosion tight plastic duct connection of
internal bonded post tensioning tendons in pre-cast
segmental structures.
Our SB 4 coupler available in HDPE or PP comply to
FIB 7 specification and is designed to cover a maximum
segment to segment installation tolerance of 50 mm
caused e.g. by part tolerances, duct elongation,
temperatures, pipe cutting and welding or formwork
and segment to segment gap.
Suitable for corrugated PESTEC IP 3 and IP 4 ducts for
internal PT and smooth PESTEC EP ducts for external PT.
Also suitability with other corrugated ducts for internal PT
upon request.
SB 4 coupler systems consist of 2’Outer Couplers’, 1’Inner
Coupler’, 1 Sealing No 1, 1 Sealing No 2, 2 end caps for
temporary and multiple use.
All PESTEC IP 4 duct sizes ID 58 – 140 mm are available.
Other sizes on request.
PESTEC offers several options for SB coupler delivery
either prefabricated segment ducts on final length
consisting of IP 4 duct including mirror welding of ‘Outer
Couplers’ or just the couplers separately for site welding.
Delivery of ducts in standard lengths and SB couplers
separately for site Welding.
See detailed information: SB 4 Coupler Data Sheet.PDF
Product Information: IP 4 SB Coupler

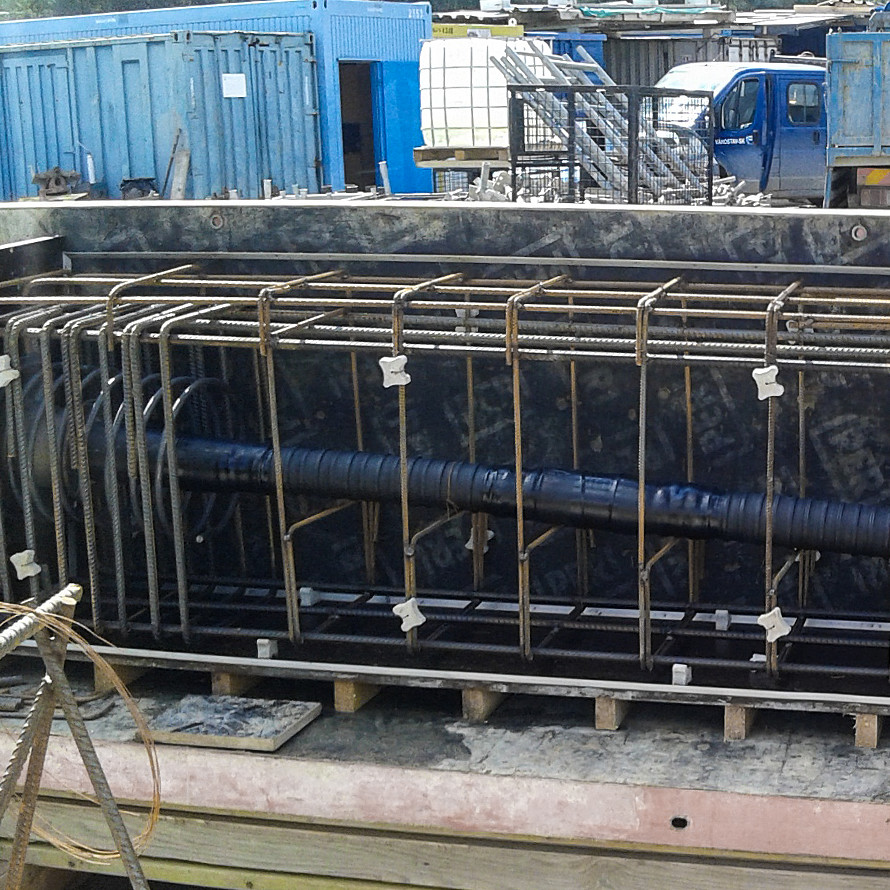

54 m long and 2,65 m high Full Scale Test has been
successfully performed with big sized
ID 130 mm IP 4 M PE Ducts.
4 Tendons 6-43 have been concreted, grouted and stressed
and all results for friction, wobble, tightness, loads and
filling grade have been within the required and specified
FIB 7 and TR 47 values.
PESTEC has started to supply first quantities of total
115.000 m IP 4 100 mm duct for new Bagalore elevated
Expressway constructed by segmental bridge method.
The pipes are supplied in fixed length and connected
using our PF couplers and the total installation period
is estimated for 14 month.
IP 4 Duct approval according to Indian IRC 18 was
achieved by verification tests.
Product Information: IP 4 Duct
PESTEC NOCX pipes will be used on new Audubon Bridge
crossing Mississippi river near Baton Rouge in Louisiana.
More than 20000 m stay cable pipes for the 482 m main
span bridge with the 2x 153 m pylons are needed.
Owners and designers approach is to design the bridge
similar to the approach of 19th century local residing, very
renowned artist John James Audubon, who dedicated his
life to paint all of the birds in America also valuing smallest
details and their relationship to the surrounding
environment.
Mr. Audubon inspired the engineers to the goal to ensure
the bridge is not built in a vacuum, so rather to get an
integral part of the surrounding landscape.
So the theme selected for this project is ‘In harmony with
nature’.
The stay pipe color is burnt umber, a common color found
in the birds native to this area and has the advantage to be
even visible to the travelling public against cloudy or hazy
sky, so at all weather conditions.
PESTEC is proud to supply their NOCX pipes for this bridge
‘In harmony with nature’.
Product Information: NOCX HDPE Pipe
PESTEC introduce advanced PUR HMD polyurethane quality
optimized for hydrolyse resistance microbe-resistance, low
temperature resistance by also absorbing dynamic stresses
in outdoor use.
First advantage is a new production technology for this
material needing More simple tools only and so saving high
injection tool costs as needed for other material. Either
small quantities of individual shapes, e.g. like for stay cable
boots, now can be offered for affordable prices.
Second advantage is the availability of a big variety of
colors.
Compared with CR – polychloroprene (common brand
name Neoprene) and CSM – chlorosulfonated polyethylene
(common brand name Hypalon) our PUR HMD material
provide excellent weather resistance in black color
and good weather resistance in other colors where CR and
CSM only reach medium to good results.
While wear resistance of PUR HMD is better, all other
mechanical properties like tensile strength, aging, ozone,
abrasion, temperature range and compression set are
very similar with CR and CSM.
Product Information: Rubber Boots and Centralizers

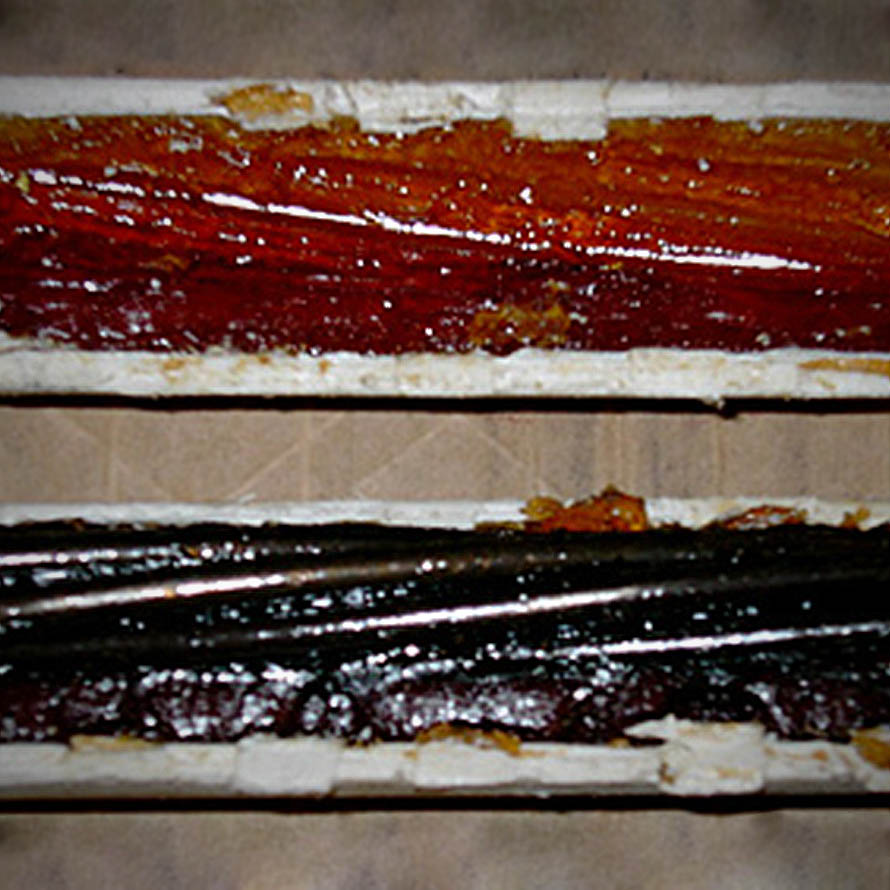

PESTEC’s Visco elastic gel of epoxy polymer is an invention
for long term corrosion protection of high performance
materials in civil structures.

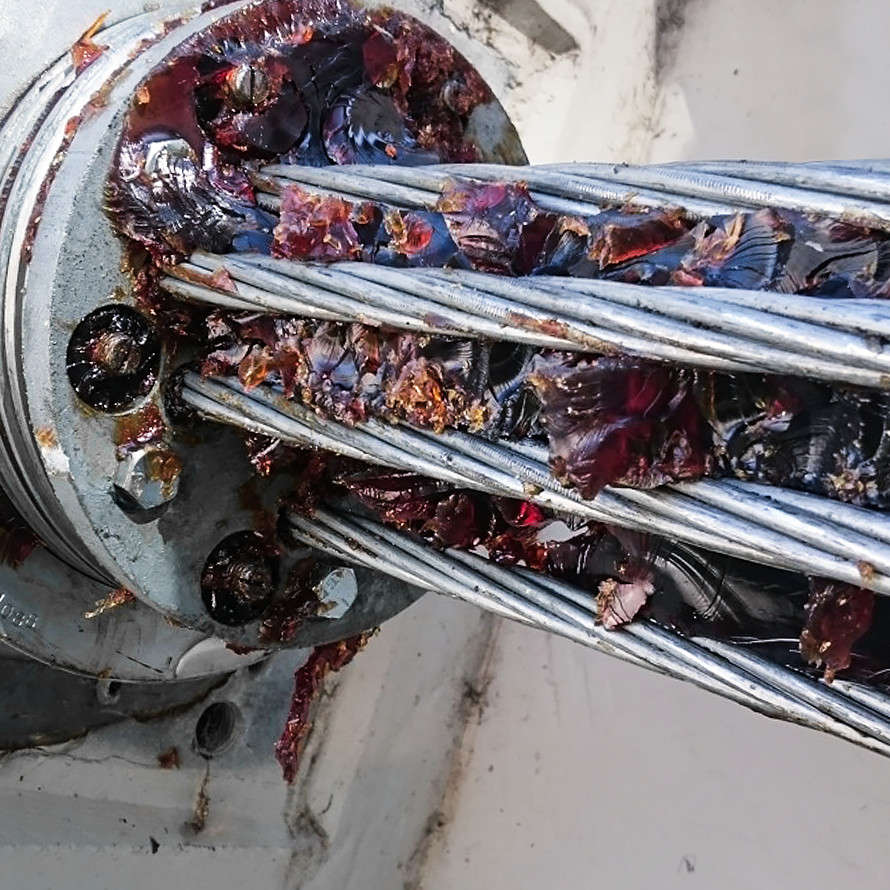

The material has been successfully used on several projects
e.g. for stay cable anchor protection.
Special formulated Gel Epoxy resin and hardener
components are mixed at ambient temperatures, easily
injected to smallest cavities because of it’s high viscosity
( like water) with low pressure during 12-24 hours and
cross linked during polymerization to a visco elastic
polymer with adhesive properties as well as damping
properties to the system.
Perfect corrosion protection has been approved by several
tests, e.g. 3 month exposure in salt spray test and salt-
water immersion test as well temperature test. In addition
PESTEC Gel Epoxy provide excellent alkaline resistance
during 6 month cement grout compatibility test and
excellent mechanical behaviour in cycle thermal test.
It was further approved to stop started corrosion at it’s level.
Other benefits are volumetric material shrinkage, no
material diffusion to other materials and no temperature
increase during polymerization.
Product Information: Gel Epoxy
First use of our DHPS Half pipes with incorporated
longitudinal sealing for a project in La Reunion with special
fire protection requirement. Half pipe color will be white.
PESTEC uses the same well developed and tested white
NOCX color we also used for several projects for
solid pipes.
Our Half pipes will be installed over the bundles of HDPE
coated strands which are covered with special 10 mm

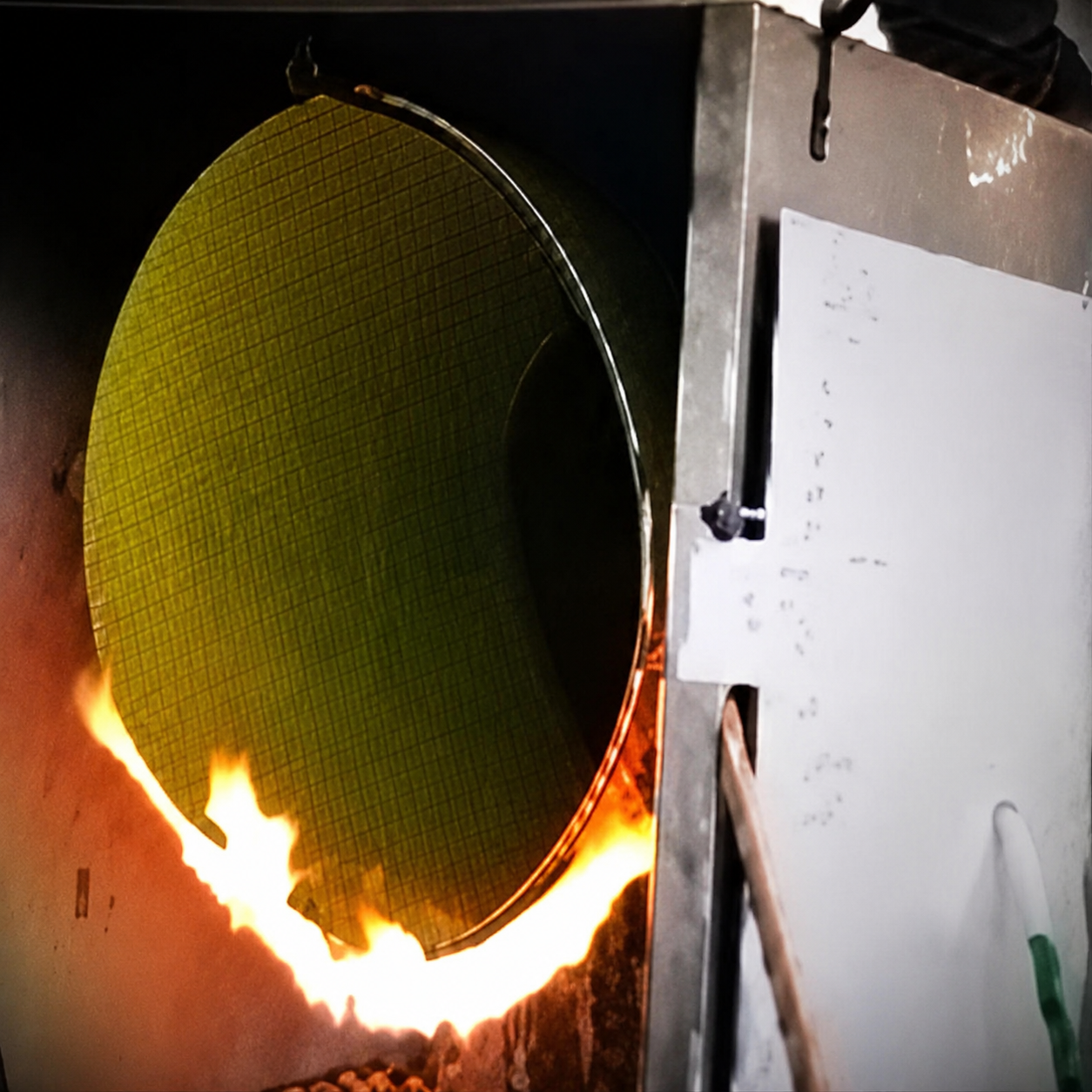

double layer fire protection blankets. The fire protection
blankets did pass the required 1000 °C hydrocarbon
fire test with a duration of 1 hour by keeping the steel
strand temperature less than 100°C.
Installation will be made by pressing the half pipes
together and using our click system and lock them in
position. Full strength radial joints are secured by butt
welded using our special half pipe butt welding equipment.
To complete the system, special components to connect
the half pipes to pylon and deck will be supplied from
PESTEC. Our experiences and references convinced the
project designers and project engineers to choose our
half pipes for this special application.
Product Information: DHP Half pipes

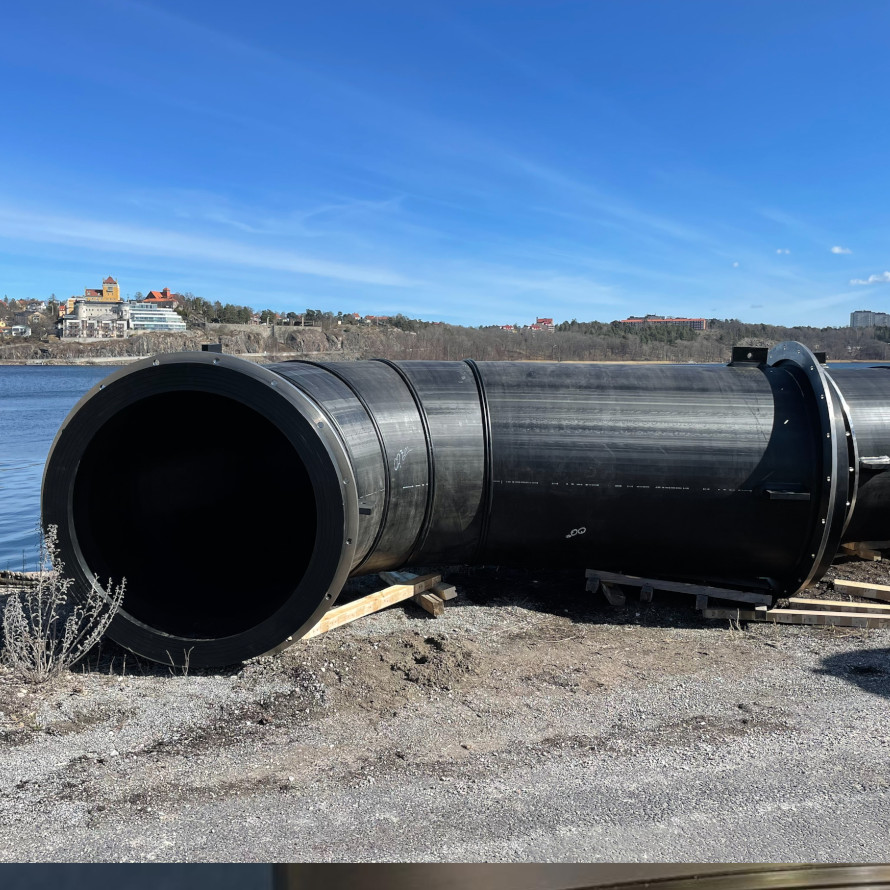

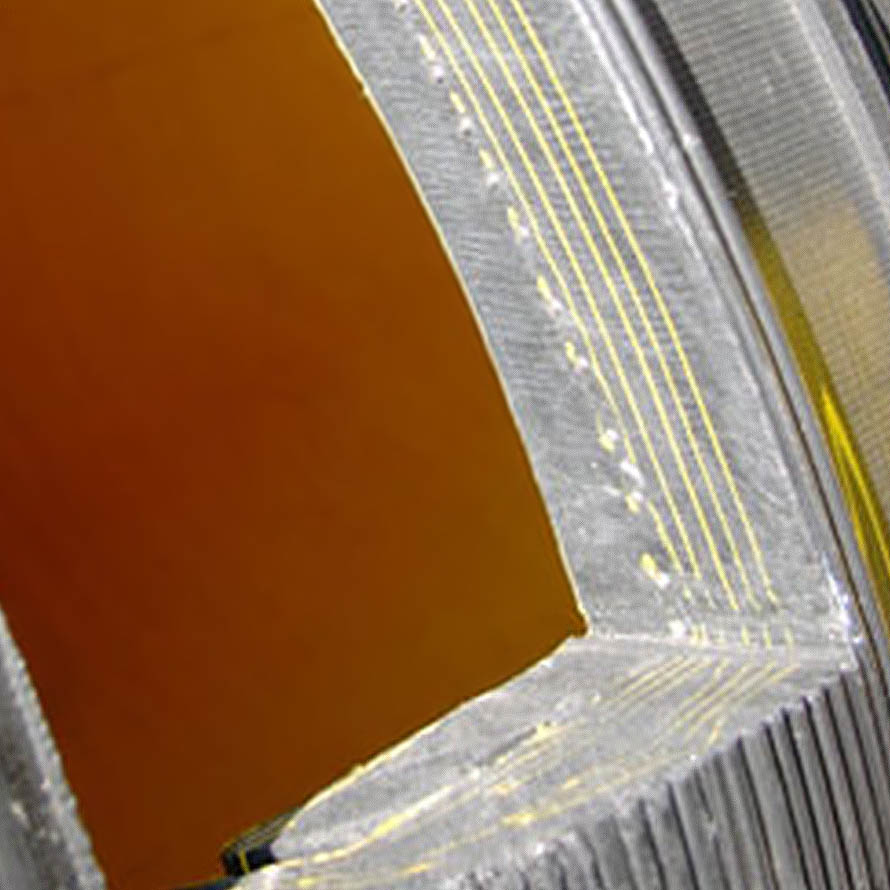

New extra large diameter HDPE pressure pipe for main
application of raw and potable water supply.
The development of a new HDPE raw material compound
containing fibre snippets enables us to offer the unique
FKS PEG Pressure Pipes which are available in sizes
1000 – 4000 mm for pressure resistance up to 10 bar in
stiffness classes 2 – 12 SN according ISO 9969.
FKS PEG Pressure Pipes have solid wall and smooth inner
and outer surface ensures best hydraulic properties and
the outstanding HDPE properties ensure best chemical
resistance and low abrasion.
Our new FKS PEG Pressure Pipes are jointed with the
well-established electro-fusion socket.
All kind of fittings as bends, elbows, reductions and flanges
are available.
The production is based on the well experienced
FKS profile pipe production.

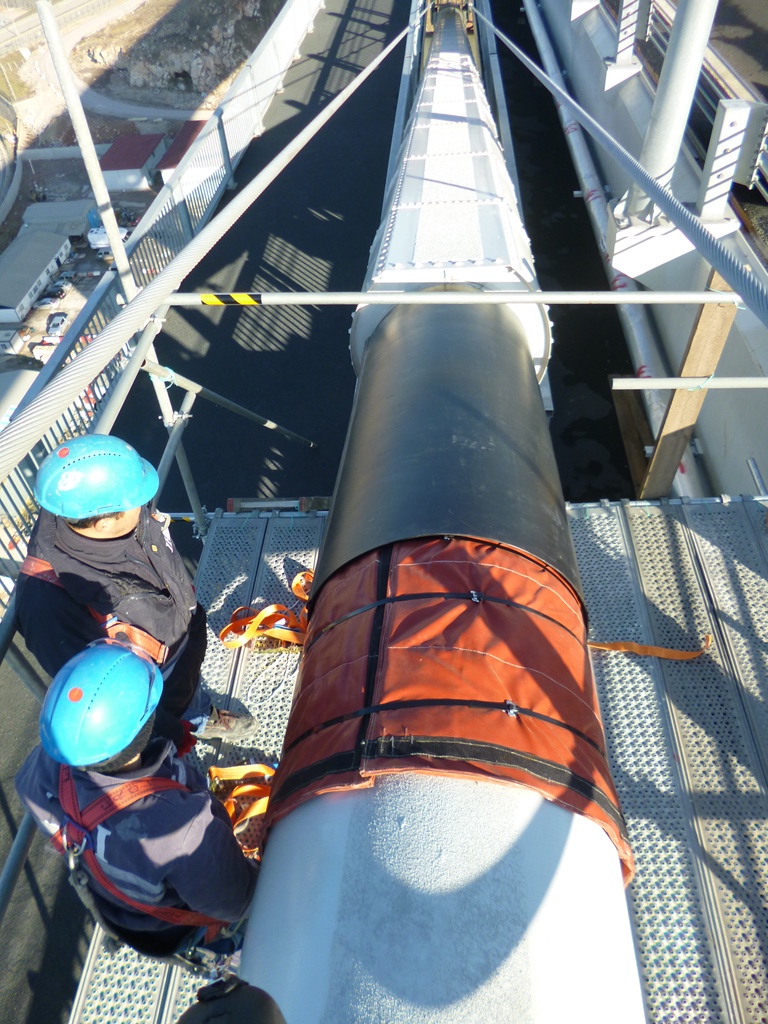

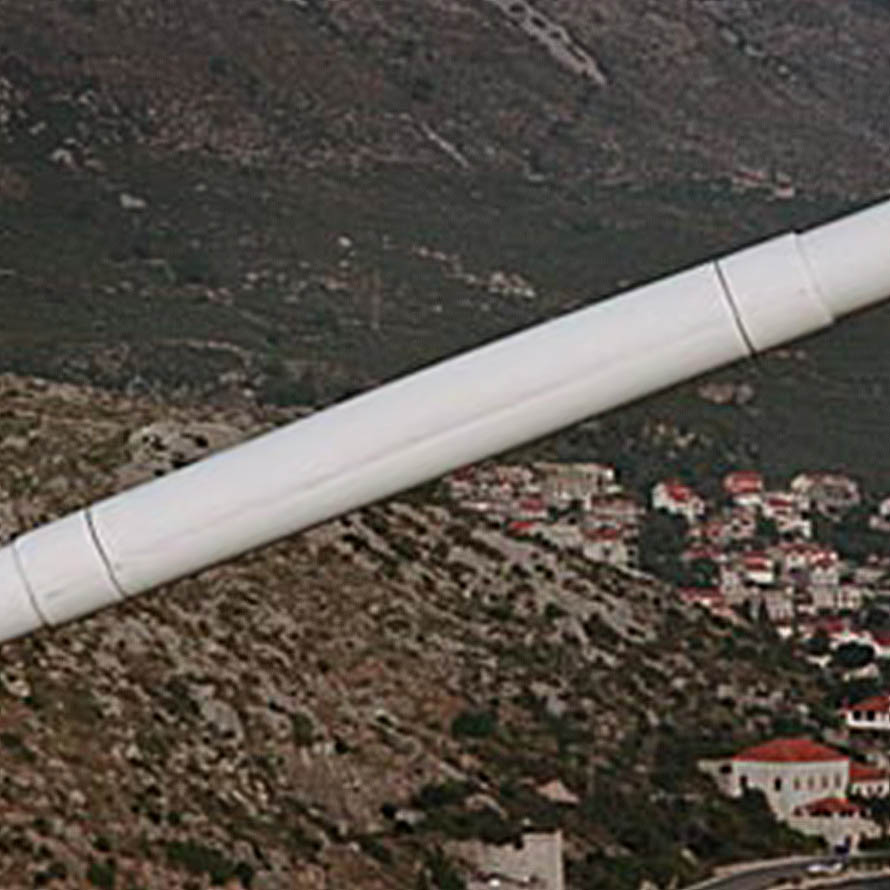

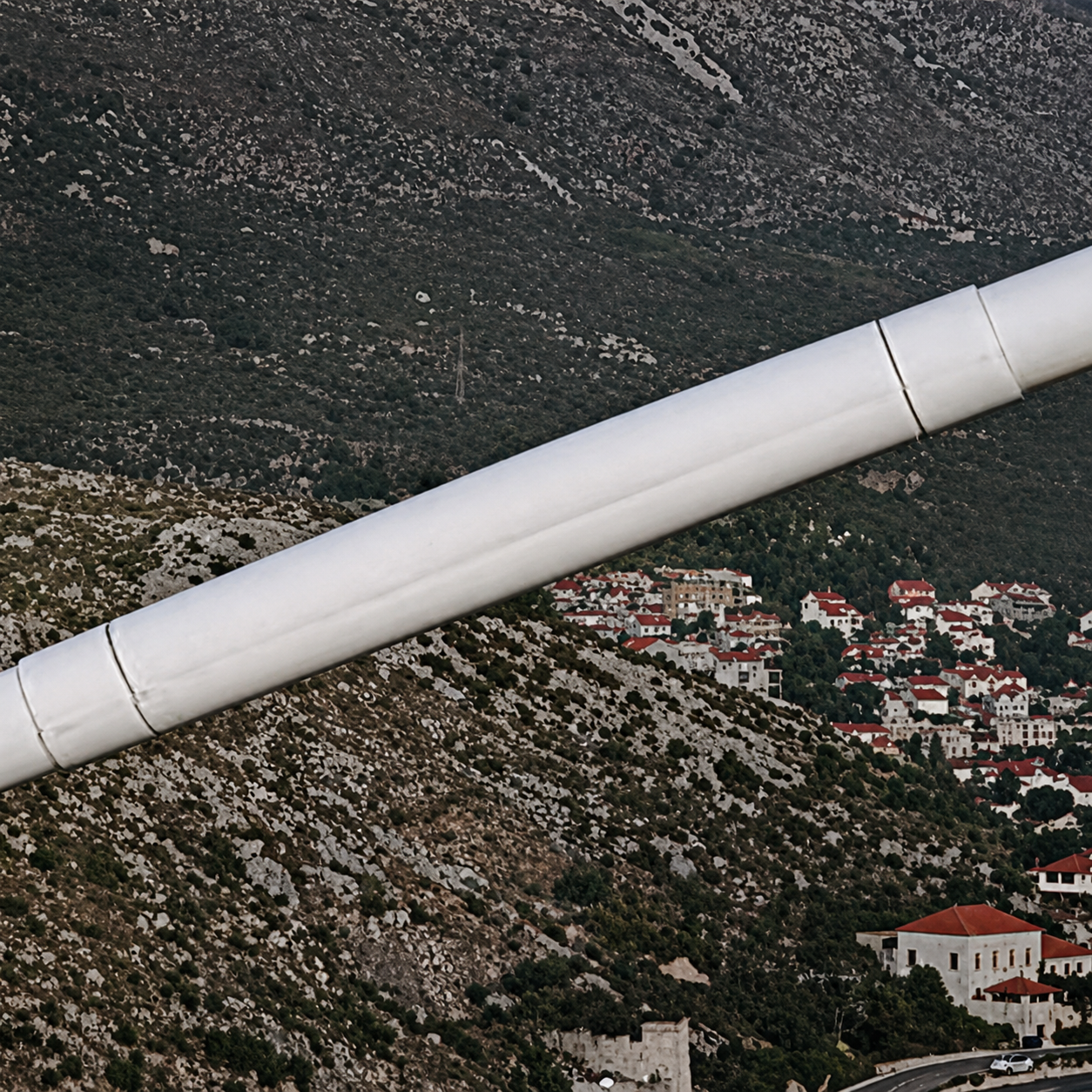

Swinging cables during high wind crashed against street
lamps on Dubrovnik Bridge, Croatia and smashed the
NOCX-HDPE pipes in about 10 m height in sections of
about 60 cm.
The smashed sections were carefully cur out using a
special circular saw with adjustable height to avoid
cutting into the inner HDPE coated strands and our special
electro fusion half pipe repair couplers of same stay pipe
colour were successfully installed.
Our repair coupler system is designed to replace the
original stay pipe section by taking the same calculated
loads of pipe and welding forces.

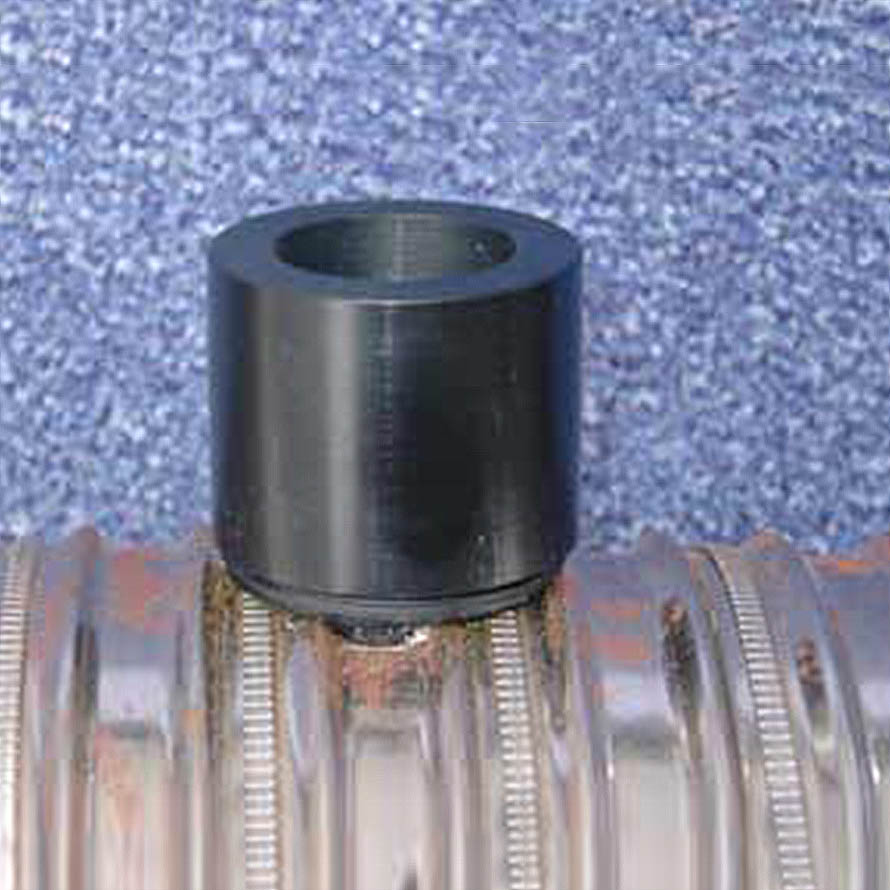

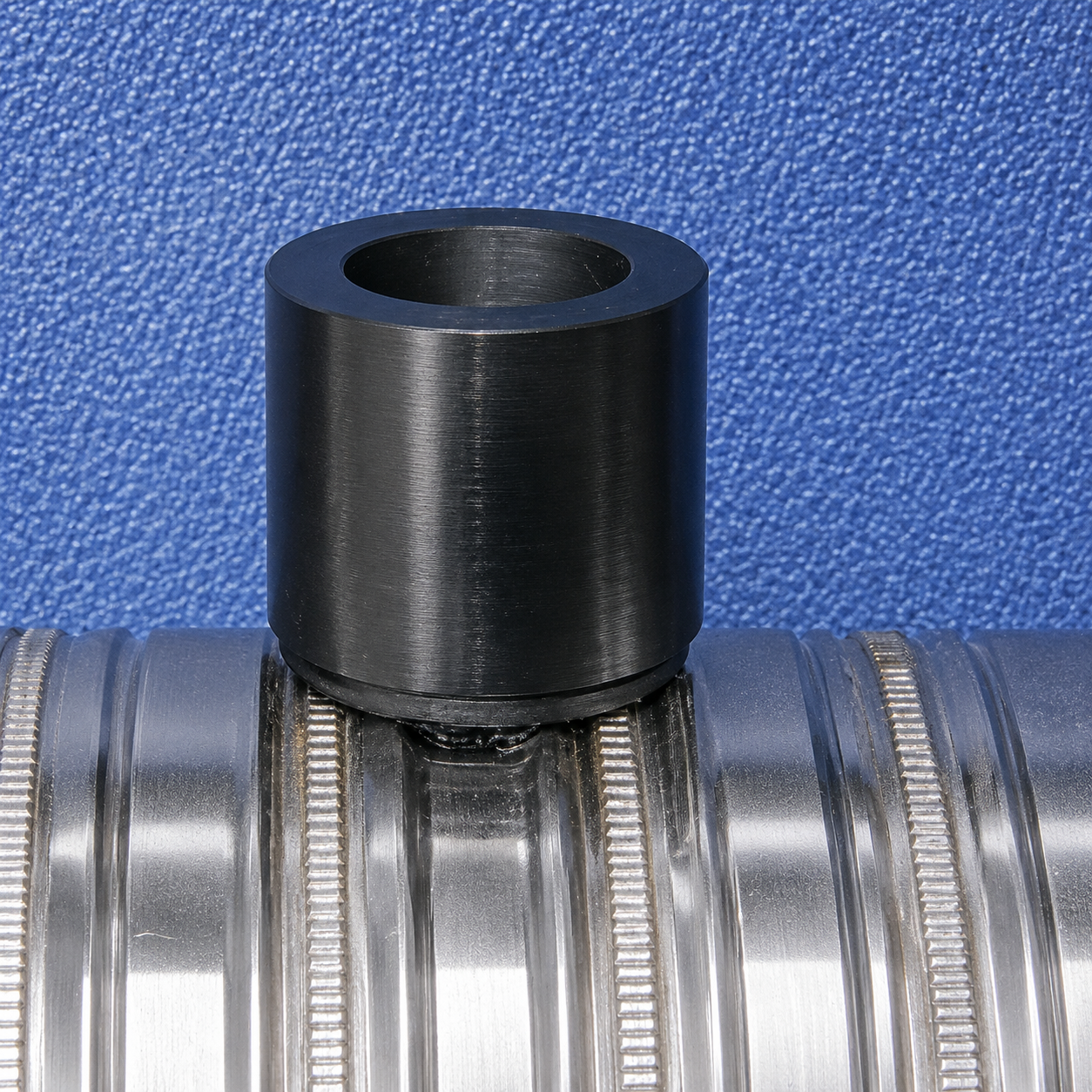

PESTEC has developed a connection between HDPE and
corrugated PT steel ducts for professional look and
performance to avoid standard methods of sealing and
taping of port vents in the future.
Installation is easy and fast. It needs just to drill a hole
into the steel duct, to heat up the HDPE grout port same
as in our well experienced grout port welding system, to
fix heated grout port in the steel duct and to spread it by
using our special tool. The HDPE grout port is tight
and tough fixed in the hole and can not be removed.
Standard spiral corrugated vent pipe 21/28 mm can be
connected to the grout ports. Modified grout ports to fit
to smooth vent ducts or other customized solutions
can be offered.

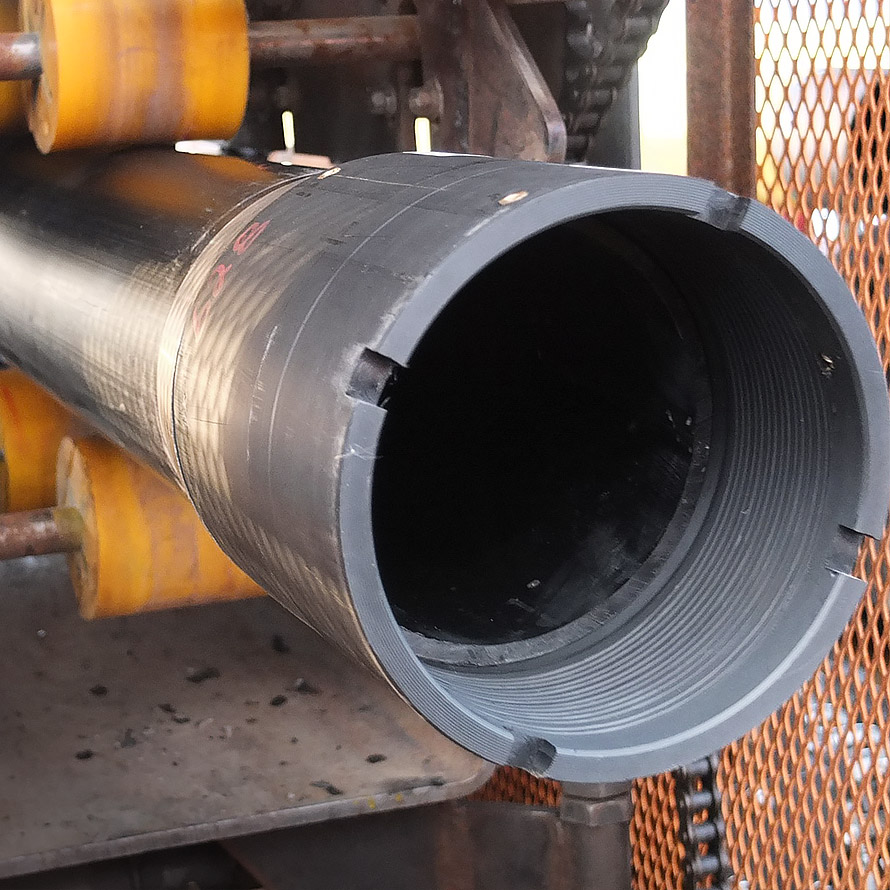

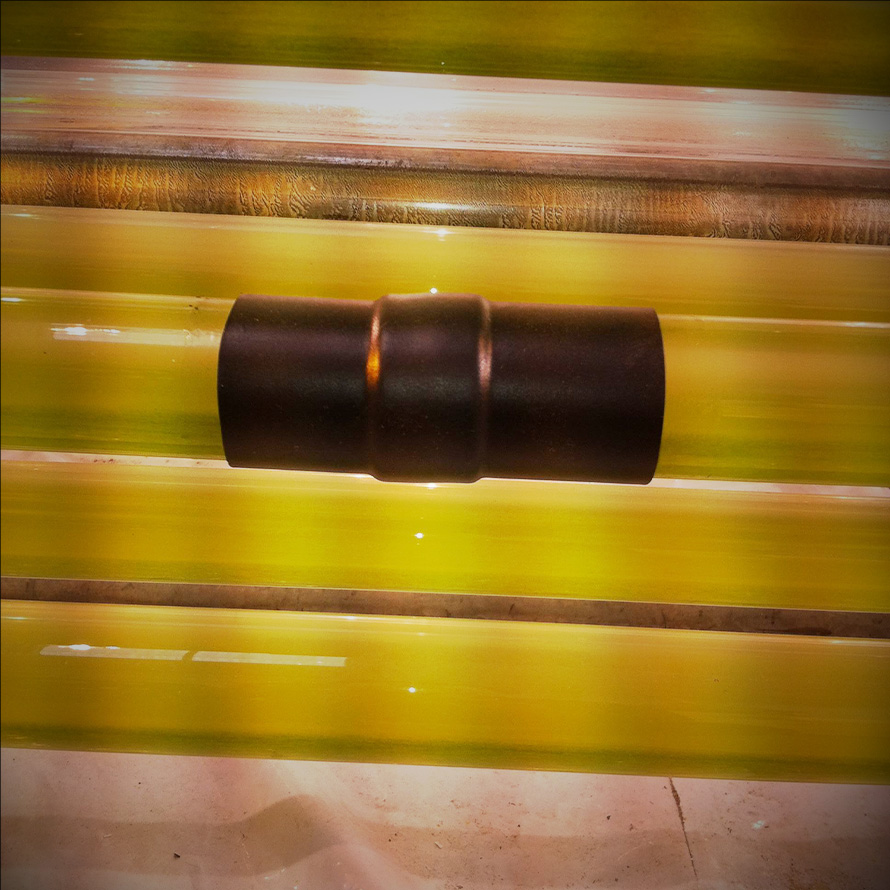

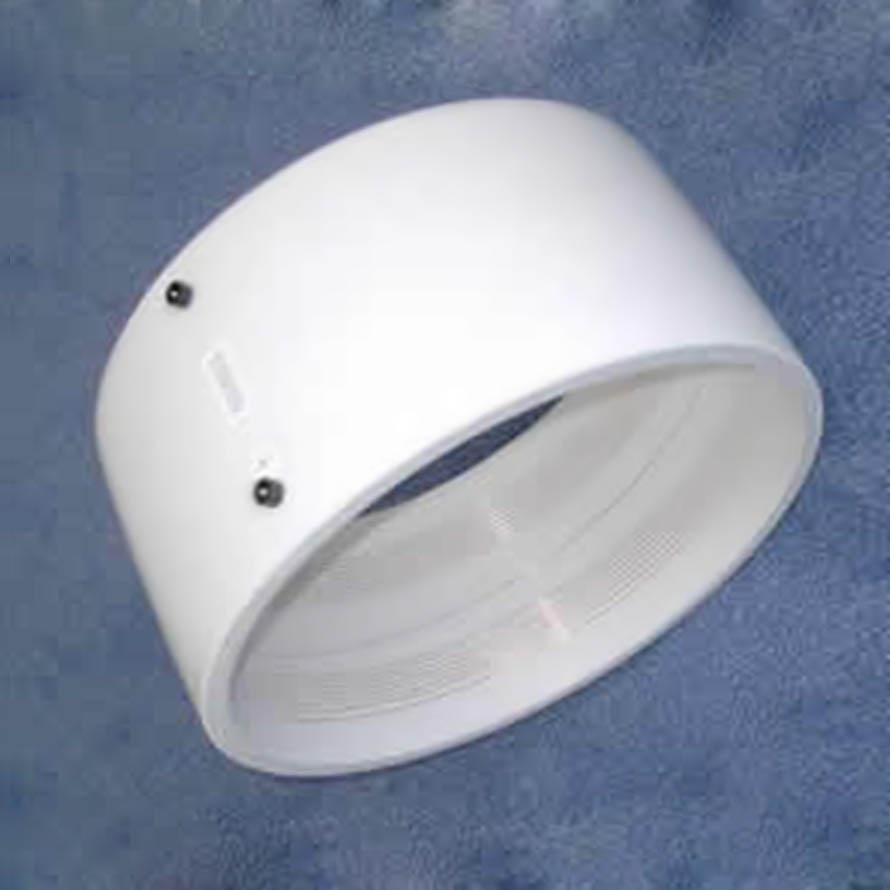

Best quality moulded electro fusion couplers in NOFX HDPE
colored material including bar code label to use with all
kind of universal electro fusion welding equipments.
Available in all colors of our big color variety and produced
of best uv- and material stabilized NOFX HDPE color to
match with our NOCX pipes.
The electro fusion coupler are designed for possible butt
welding to pipe if considered to use as telescopic sleeve.
Perfect function and tightness either if manufactured with
sliding performance property. Of course successful tests
acc standard e-fitting tests have been achieved.
Available in all standard sizes 110-630 mm in SDR 11-32
as well as in all special sizes on request.
Please note minimum order quantity of 50 pc. required.
For quantities less than 50 pc. we still provide our
individual manufactured special NOFX electro fusion
coupler in sizes up to 315 mm in SDR 17-32.

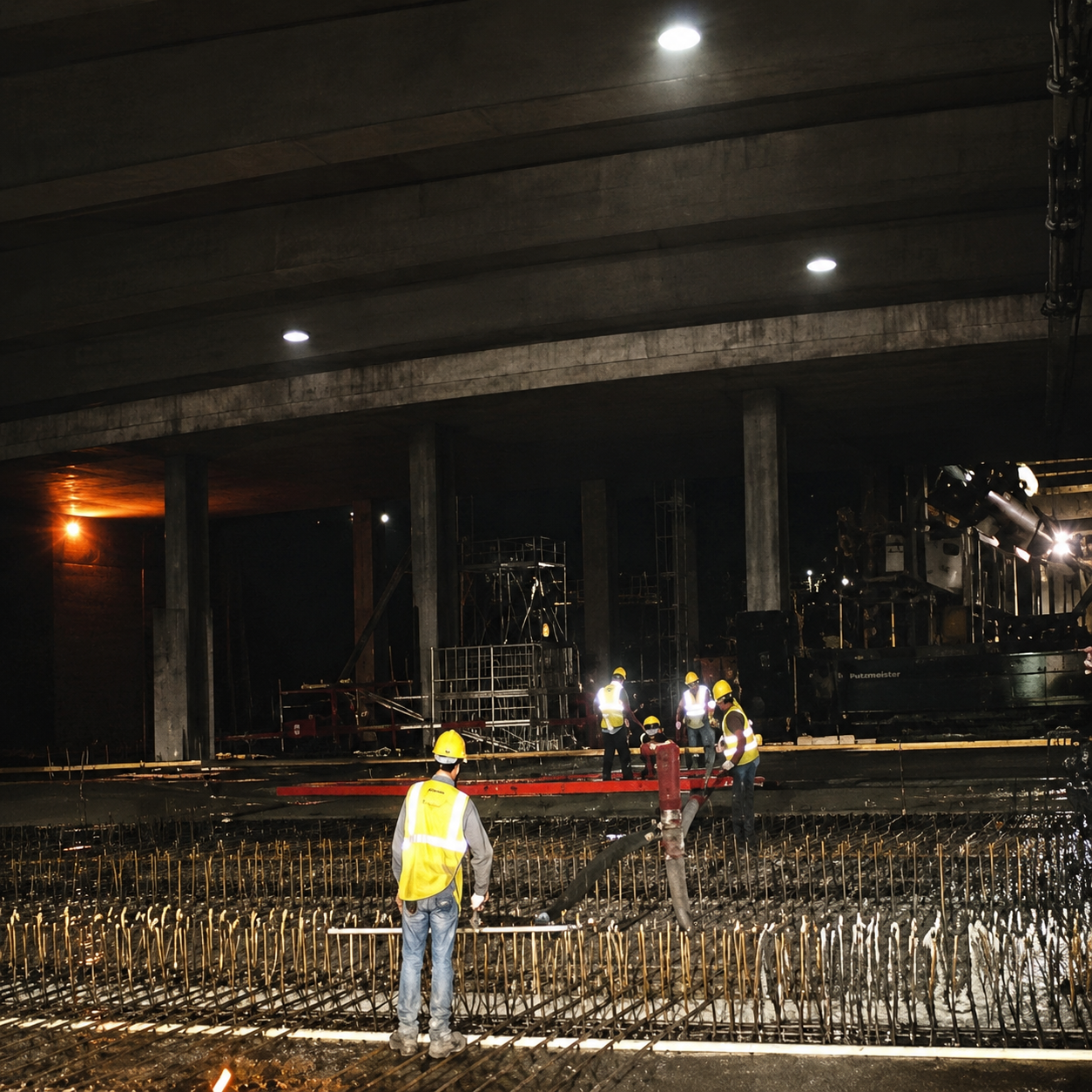

To protect both sides of the 2500 m long and 10 m
high facade of the railway approach of historical
Antwerp Railway Station from year 1905 still in
operation today, the new HSL - High Speed Railway
Station is designed on underground levels under
the present rails.
Construction method are tunnel works using
prestressed beams and excavate the ground part
by part to reach -2 level underground.
More than 17000 m PESTEC IP 3 M PP Duct of
sizes ID 85 and ID 100 have been installed for
corrosion protection of internal post-tensioning of
the beams. To complete the corrosion protection
system, PESTEC PF duct couplers, grout ports
welded to the ducts, as well as vent pipes, valves
and end caps have been used for perfect grouting.
IP 3 Duct approval was achieved by meeting the
strict project requirements.
We proudly received the first contract worldwide using OD
400 mm HDPE pipe to cover the biggest stays ever used.
7000 m NOCX HDPE pipe OD 400 mm SDR 21 including
external spiral in grey color will be installed on a US bridge
in the state of Maine starting April next year.
For this new size a new tool for the external spiral needs
to be produced.
We will also supply several components in the same
grey color to complete the system.
Our very well matured pipes, already providing
extraordinary features in uv stability, heat and micro
crack resistance on more than 100 projects worldwide for
very competitive price, were chosen from the project
designers, project engineers as well the subcontractor
as the most efficient and economical solution to protect
the strands and cover them long term in favourable design.
Thank you to our customer for this contract as well as for
the extension of our product line !!!

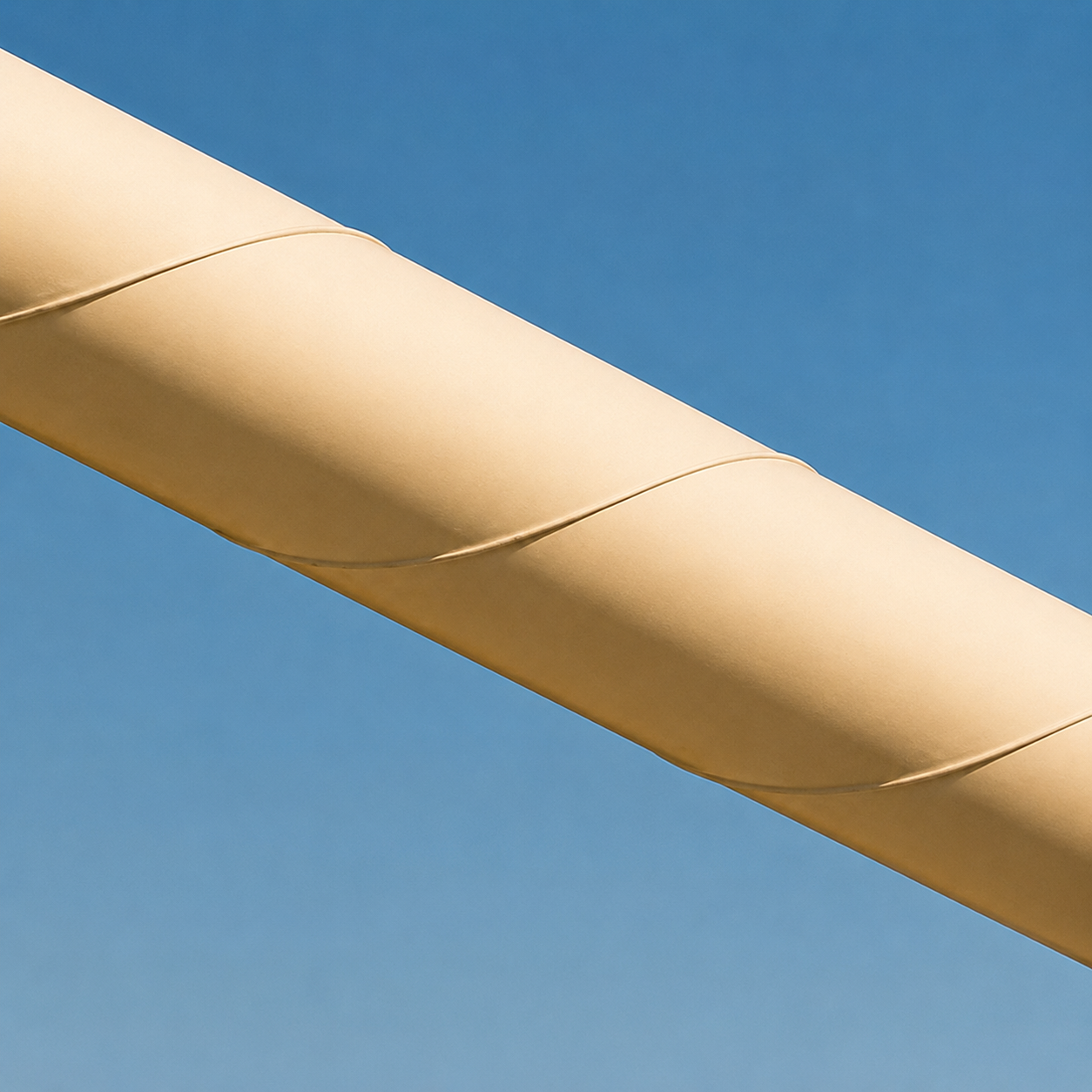

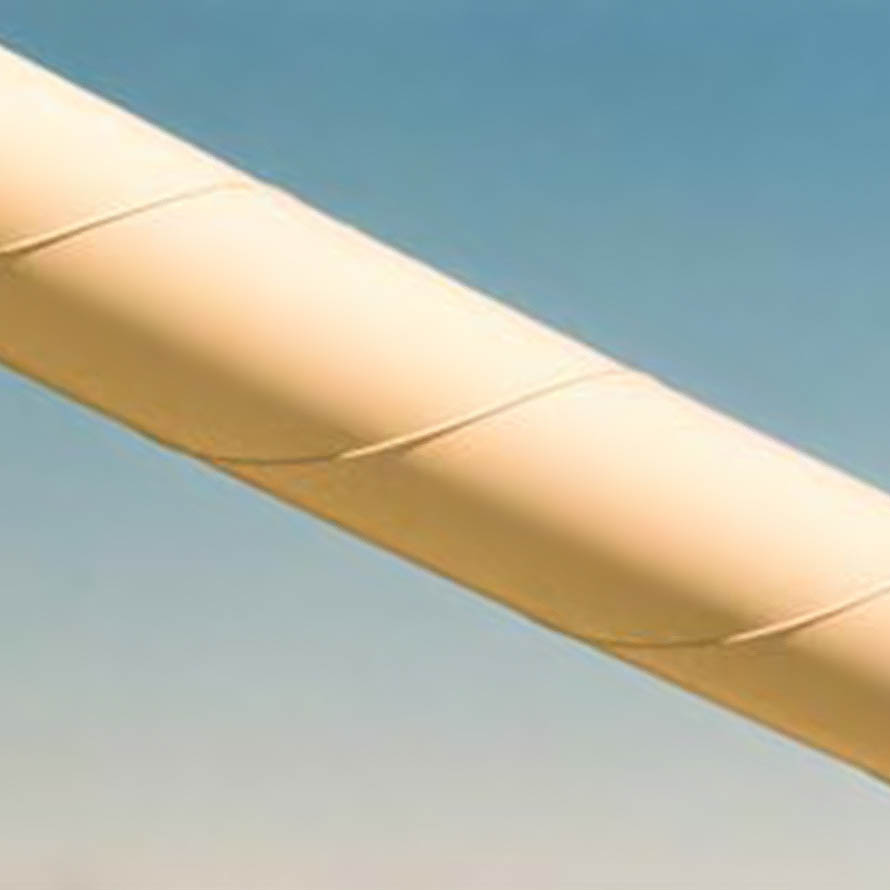

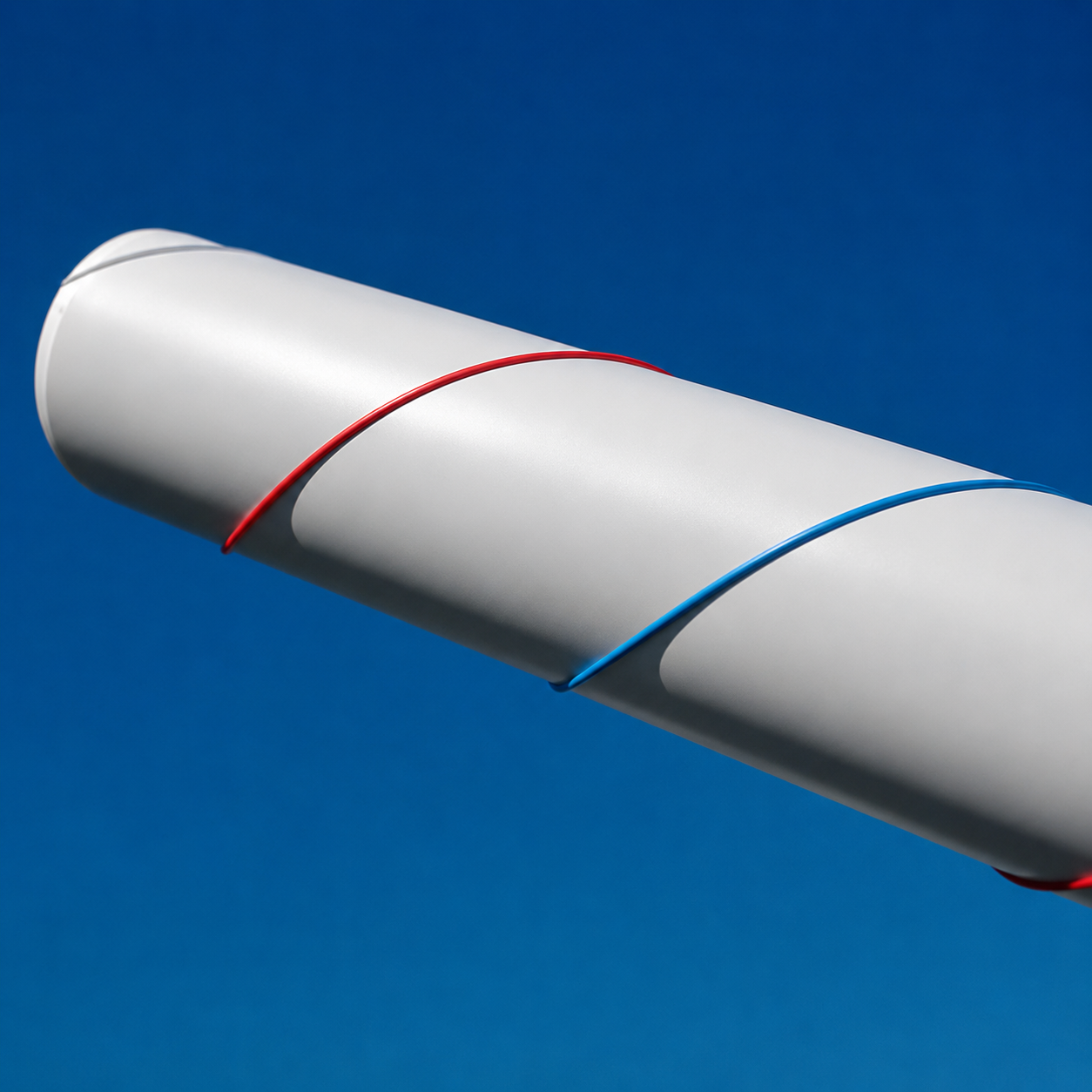

Choice of more than 200 colors including metallic effect
colors are available according to our color chart and can
be mixed with any pipe color for individual stay pipe design
e.g. in national colors, State colors or colors of province
or city.
As an option the double spirals are offered in one or two
different colors from the pipe color.
Colored external spirals are of same best NOCX HDPE
quality incl. uv stability, heat and micro crack resistance
and online welded to the pipes.
